Stillwell Hydraulic Trailer Tongue Jack – 7,000 lb Capacity – 24\" Stroke For Sale

Hydraulic Trailer Tongue Jack

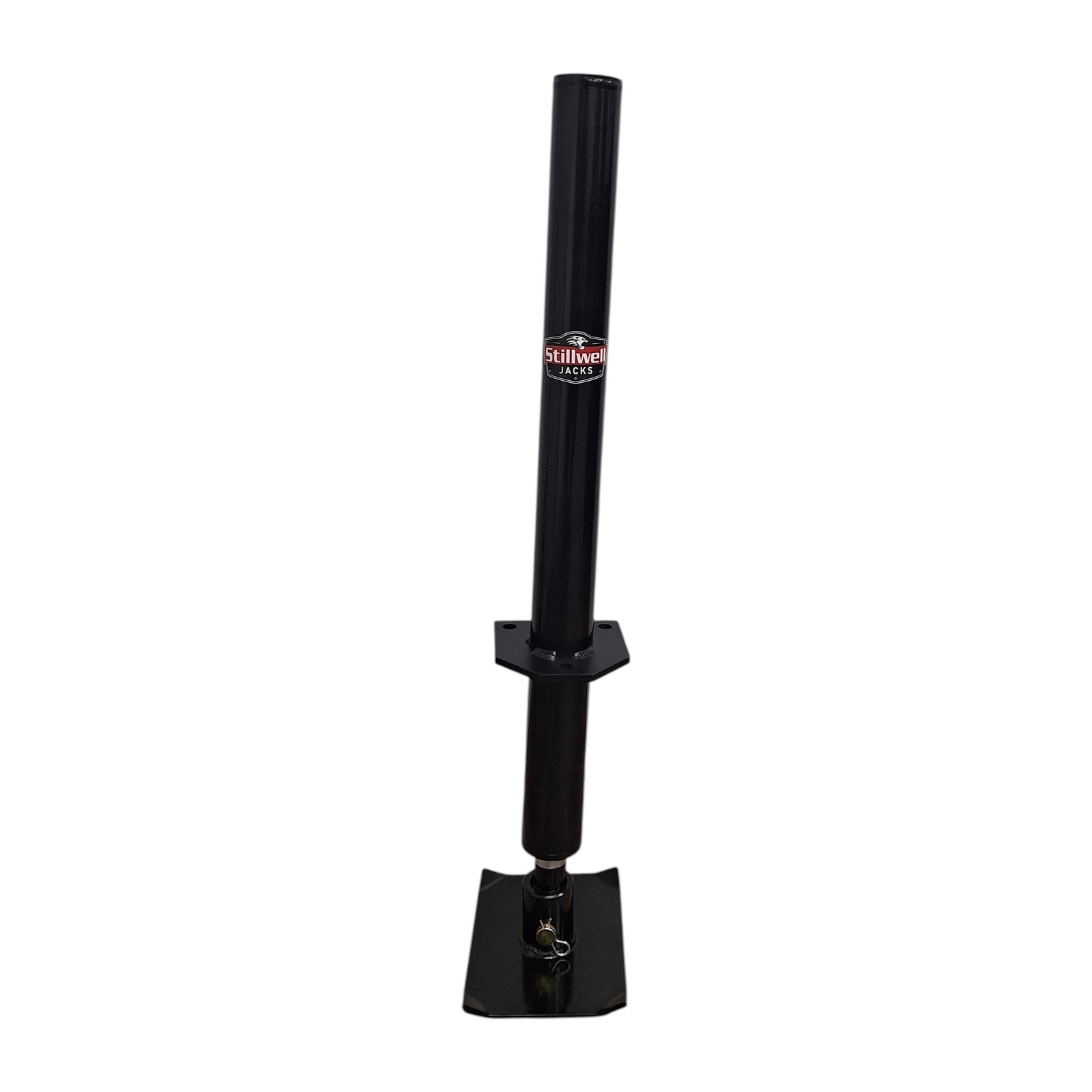

Stillwell Hydraulic Trailer Tongue Jack – 7,000 lb Capacity – 24\" Stroke

Part Number: 1-5191

Stillwell hydraulic trailer tongue jack rated at 7,000 lbs for heavy-duty trailer applications requiring hydraulic lifting. This listing includes the hydraulic jack and removable foot only; an external hydraulic pump is required and is not included.

7,000 lb Capacity

24\" Stroke

Pump Not Included







Key Product Information





Specifications



Specification
Detail


Part Number
1-5191


Brand
Stillwell


Product Type
Hydraulic trailer tongue jack


Load Capacity
7,000 lbs (7K)


Stroke Length
24\"


Retracted Length
32\" overall


Extended Length
56\" overall


Mount to Foot, Retracted
12\"


Foot Size
8\" x 6\" removable foot


Cylinder
2\" bore / 1.25\" rod


Maximum Pressure
3,200 PSI


Operation
Hydraulic; external pump required


Pump Included
No






Fitment / Application



Category
Details


Application
Heavy-duty trailer tongue lifting applications


Mounting
Designed to install using existing tongue jack mounting holes


Hydraulic System
Requires a compatible external hydraulic pump


Fitment Check
Confirm mounting pattern, retracted length, available stroke, pressure requirements, and hydraulic system compatibility before ordering.



Important Compatibility Note:
This listing is for the hydraulic jack and removable foot only. No hydraulic pump is included.




Top Features



Feature
Details


7,000 lb Capacity
Rated for heavy-duty trailer tongue lifting applications.


24\" Stroke
Provides 24 inches of hydraulic travel.


Heavy-Duty Cylinder
Features a 2-inch bore and 1.25-inch rod.


Removable Foot
Includes an 8\" x 6\" removable foot.







Overview

This Stillwell hydraulic trailer tongue jack is rated at 7,000 lbs and is commonly used on heavy-duty trailers requiring hydraulic lifting. It provides a 24-inch stroke, measures 32 inches overall when retracted and 56 inches overall when extended, and is designed to install using existing tongue jack mounting holes.

R&P Knowledge Hub

Compatibility: Verify that the trailer mounting pattern and hydraulic system are compatible with this jack before ordering.

System Requirements: This jack requires an external hydraulic pump capable of operating with the jack’s specified pressure requirements.

Measurements: Confirm the 32-inch retracted length, 56-inch extended length, 24-inch stroke, and 12-inch retracted mount-to-foot measurement.

Included Equipment: The removable foot is included. The hydraulic pump is not included.

R&P Service Insight

Compare the jack’s measurements, mounting arrangement, and hydraulic requirements with the existing trailer setup before installation.

• Mounting: Confirm that the existing tongue jack mounting holes match the required installation arrangement.
• Clearance: Verify adequate clearance for the jack in both its fully retracted and fully extended positions.
• Hydraulics: Confirm hydraulic pump compatibility and pressure requirements before connecting the jack.

Features

• 7,000 lb load capacity
• Hydraulic operation with external pump required
• 24-inch stroke length
• Heavy-duty cylinder construction
• 2-inch bore with 1.25-inch rod
• Designed for trailer tongue mounting
• 8\" x 6\" removable foot included
• Maximum pressure rating of 3,200 PSI

Before Ordering

• Confirm the trailer’s tongue jack mounting pattern.
• Verify the required retracted length and available stroke.
• Confirm compatibility with the external hydraulic pump and system.
• Verify the required load capacity and maximum pressure rating.

Included Components



Quantity
Included Component


1
Stillwell 7,000 lb hydraulic trailer tongue jack


1
8\" x 6\" removable foot


Not Included
External hydraulic pump





Important Fitment Note:
This is a hydraulic jack only. No pump is included. Verify the mounting pattern, overall dimensions, available stroke, hydraulic compatibility, load requirements, and pressure requirements before ordering or installation.
