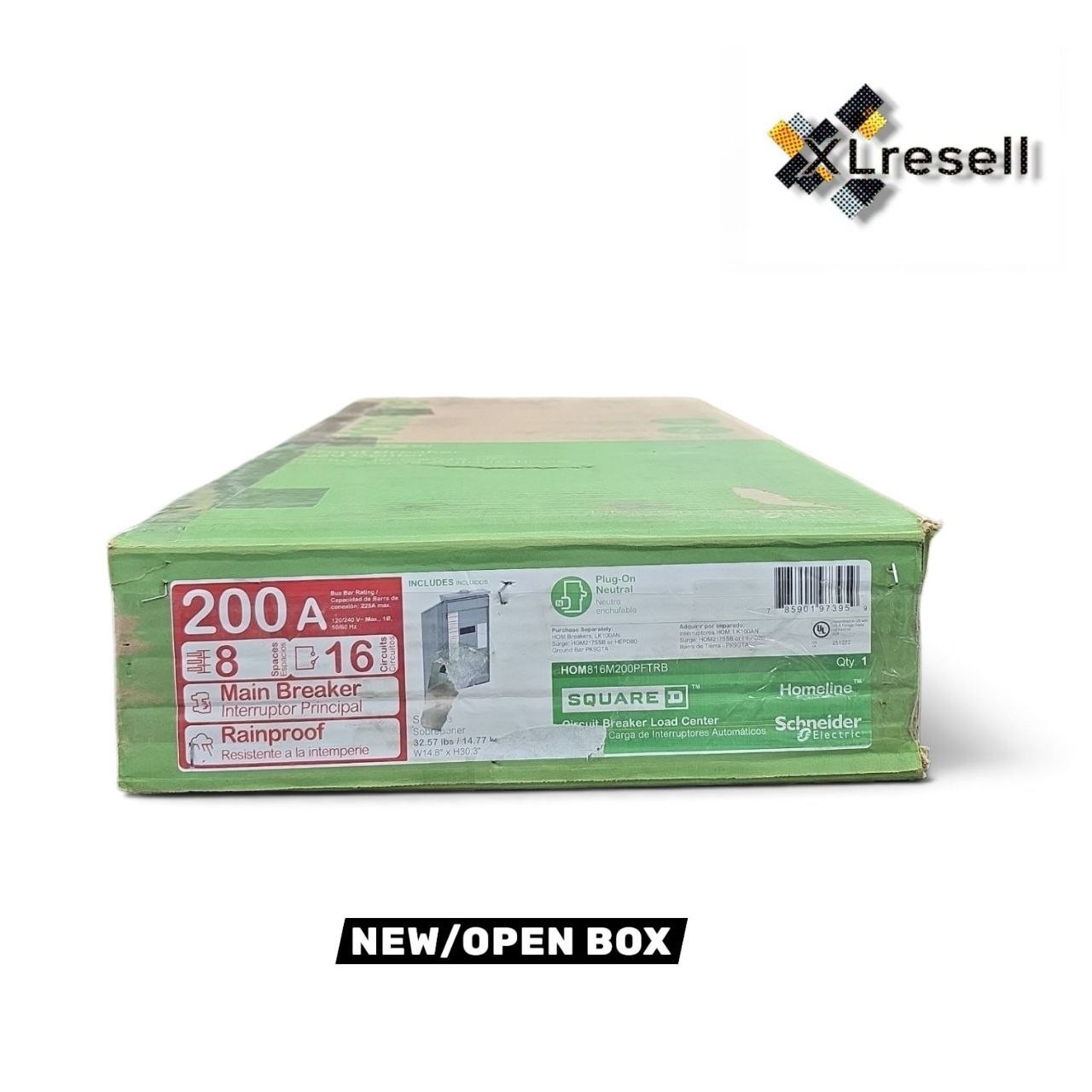

Square D 200A 8 Space 16 Main Breaker Circuit Load Center (HOM816M200PFTRB) For Sale

The Square D Homeline 200 Amp 8-Space 16-Circuit Outdoor Convertible Main Breaker Load Center for Plug-on Neutral breakers has feed-thru lugs and is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and is compatible with Square D Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Square D Homeline breaker boxes are engineered for fast installation and wire savings.

• learn about general NEC 2020 updates. contact your local building inspector for code adoptions and details
• Square D Homeline 200 Amp 8-Space 16-Circuit Outdoor Main Breaker Load Center with Feed-Thru Lug
• Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
• Each pole space accepts full-size, tandem or quad Square D Homeline breakers
• Ground and neutral bars accept up to (3) #10-14 equipment grounds
• Includes feed-thru lugs and a rainproof outdoor cover
• Accommodates plug-on secondary surge arrestor (sold separately)
• Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
• Single phase, for outdoor installation
• Rated 120/240 VAC and 22,000 AIR short circuit current rating
• Rainproof cover features a stainless steel hasp that is easily padlocked for safety from theft
• Designed with straight-in mains to save expensive cable and time
• Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
• Thermoplastic interior assembly is among the most rugged in the industry
• Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
• For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
• 3-ground bar mounting locations (left, right and end) let you pick the easiest spot to wire

Product Depth (in.)

4.52 in

Product Height (in.)

29.86 in

Product Width (in.)

14.75 in

Breaker Box Type

Main Breaker Panel

Connection Type

Neutral

Indoor/Outdoor

Outdoor

Maximum Amperage (A)

200 A

Mounting Type

Surface

NEMA Configuration

NEMA 3R

Number of Circuits

16

Number of Spaces

8

Product Weight (lb.)

33.32 lb

Returnable

30-Day

Series Type

Homeline

Voltage (V)

120/240 V
