Sidestream EtCO2 Loflo Module End Tidal CO2 for Respironics Capnograph Monitor For Sale

Respironics LoFlo 1022054 Compatible Sidestream EtCO2 CO2 Capnography Module Kit Respironics LoFlo 1022054 Compatible Sidestream EtCO2 CO2 Capnography Module Kit Product Information

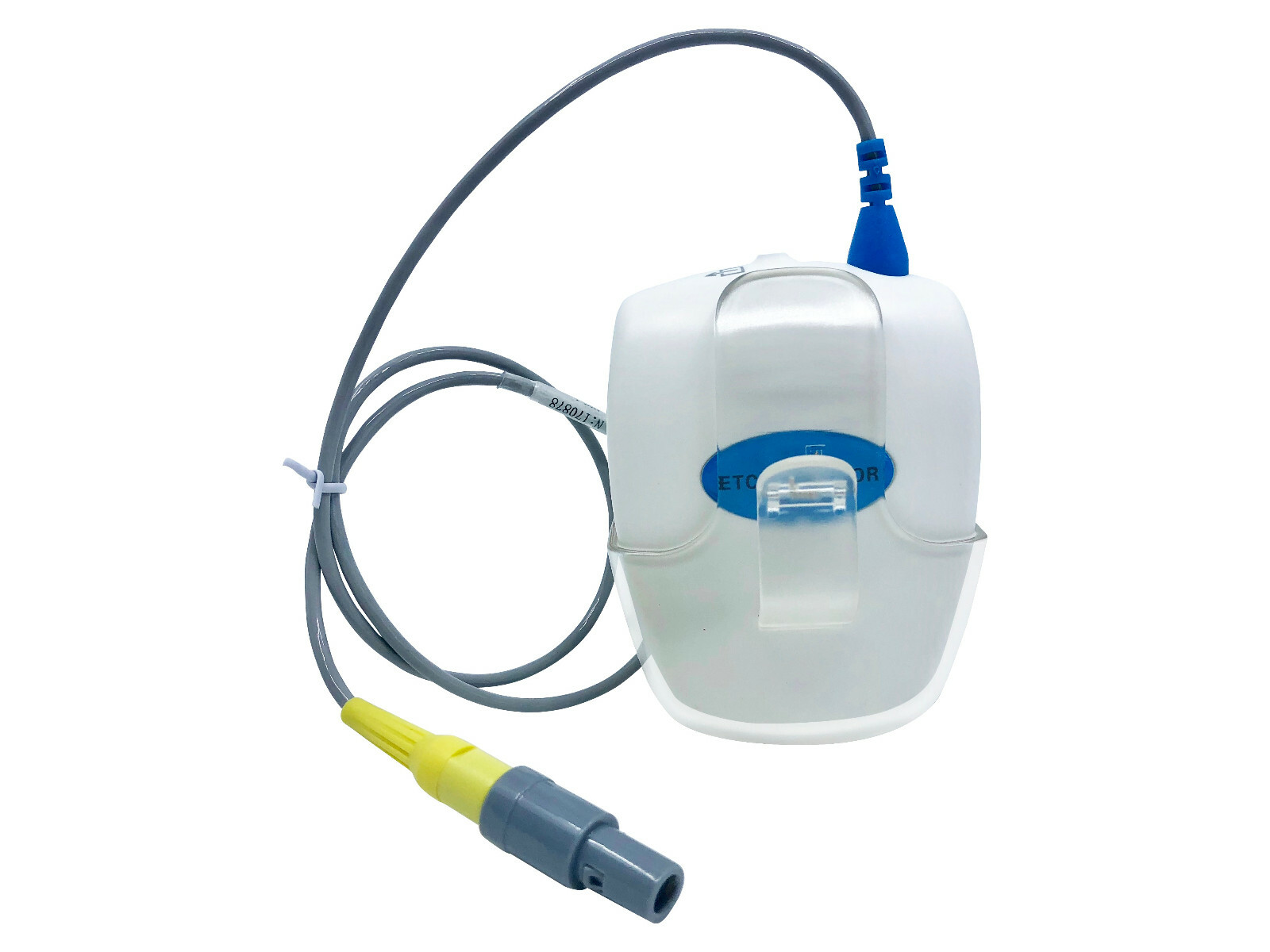

Respironics LoFlo REF 1022054 Compatible Sidestream Capnography Module Kit is a factory-new modular CO2 monitoring accessory designed for compatible patient monitors using the standard 8-pin, 2-key LEMO connection associated with Respironics LoFlo sidestream capnography systems.

Product Overview

This sidestream module provides a field-upgradeable, plug-and-play option for compatible monitoring systems. It is designed to provide real-time measurement and display of CO2 gas concentration in mmHg, End-Tidal CO2 (EtCO2), Inspired CO2 (FiCO2), and Respiratory Rate (RR).

The module uses an approximately 50 mL/min sidestream sampling rate and can be used with compatible sampling configurations for both intubated and non-intubated applications.

A reusable bullet-style filter connects directly into the sampling line and is designed to help limit moisture and contamination from entering the module\'s internal sampling pathway.

The system uses compatible Luer-Lock nasal cannulas and sampling lines, allowing commonly available sampling accessories to be incorporated into supported configurations.

Key Features

• Respironics LoFlo Compatibility: Designed for compatible Respironics LoFlo-style sidestream capnography systems.
• Reference Number: Compatible with applications associated with Respironics REF 1022054.
• Plug-and-Play Design: Field-upgradeable module format for compatible patient monitors.
• CO2 Concentration: Measures real-time CO2 gas concentration in mmHg.
• End-Tidal CO2: Supports EtCO2 measurement with compatible monitoring equipment.
• Inspired CO2: Supports FiCO2 measurement.
• Respiratory Rate: Provides respiratory-rate information through the connected compatible monitor.
• Low-Flow Sampling: Approximately 50 mL/min sidestream sampling rate.
• Intubated & Non-Intubated Configurations: Supports compatible sampling setups for both configurations.
• Reusable Bullet Filter: Included reusable filter connects directly with the sampling line.
• Moisture / Contamination Management: Filter is designed to help protect the module\'s internal sampling components.
• Luer-Lock Accessories: Uses compatible Luer-Lock nasal cannulas and sampling lines.
• Apnea Recognition: The original product configuration identifies apnea recognition through the 50 mL/min CO2 sampling pathway.
• Monitoring Applications: Capnography modules of this type may be incorporated into compatible monitoring workflows including procedural sedation, anesthesia, and respiratory monitoring according to the connected equipment\'s instructions and applicable facility protocols.
• Warranty: Includes a 1-year warranty.

Technical Specifications Product Type Sidestream CO2 / EtCO2 capnography module kit Compatibility Reference Respironics LoFlo REF 1022054 Measurement Parameters CO2 concentration (mmHg), EtCO2, FiCO2, Respiratory Rate (RR) Sampling Method Sidestream Sampling Rate Approximately 50 mL/min Application Configuration Compatible intubated and non-intubated sampling setups Monitor Connector Standard 8-pin, 2-key LEMO-style connector Sampling Connections Compatible Luer-Lock sampling accessories Filter Type Reusable bullet filter Installation Field-upgradeable / plug-and-play configuration on compatible equipment Condition Factory new in packaging Warranty 1 year Related Terms Respironics LoFlo 1022054, LoFlo EtCO2 module, sidestream CO2 module, capnography module, end tidal CO2 module, EtCO2 sensor module, 8 pin LEMO capnography, 50 mL min CO2 module, FiCO2 monitor module, respiratory rate capnography, sidestream capnograph monitor Package Includes

Capnography Kit Includes:

• 1 x Respironics LoFlo REF 1022054 compatible sidestream capnography module
• 1 x Nasal cannula
• 1 x Reusable bullet filter
• 1 x Male sample line
• 1 x Clip case
• 1-year warranty

Compatibility

This module is intended for patient monitors configured for Respironics LoFlo-compatible End-Tidal CO2 / EtCO2 sidestream modules using a standard 8-pin, 2-key LEMO-style connector.

Important: Compatibility can vary by monitor revision, installed hardware, software configuration, connector keying, and optional CO2 functionality. Please compare the EtCO2 / CO2 connector on your monitor with the listing photos and specifications before ordering.

Listed Compatible Monitor Families & Models Biolight Q7, Q5, Q3, M9500, M8000, A8, A6, A5, A3, A2 Bionet BM1Vet, BM3Vet, BM3Vet Touch, BM5Vet, BM7Vet Cardell / Midmark 9500HD, Cardell Touch, MAX-12 HD, View, Duo HD CON-TEC CMS9200, CMS9000, CMS8000, CMS7000, CMS6800, CMS6000, CMS8000VET, CMS6000VET Comen STAR8000H, STAR8000C, STAR8000, C80, C50, C100 Cygnus 1000CVET, 1000CIVET, 1000GCIVET, 1000VET Digicare Lifewindow Lite, Lifewindow 9X, Lifewindow, LW9xVET DRE Echo, Waveline Touch Edan iM8A, iM80, iM8, iM70, iM60, iM50, iM20, iM8VET, iM8BVET, MV3 Eickemeyer Lifevet M, Lifevet C Fukuda Denshi DS8500, DS8400, DS8200, DS8100, DS8007, DS7300, DS7200, DS7100, DS7000 General Meditech G3S, G3N, G3M, G3L, G3H, G3D, G3C Hamilton Medical S1, G5, C3, C2, C1 Infinium Medical Omni, Omni K, Omni II, Omni III, Omni Express, Omni Express VS Lutech Datalys 790, Datalys 780, Datalys 760, Datalys 750P, Datalys 750 Philips Medical Goldway UT400FPRO Siriusmedica X50+, X50, X45, X40, X30 Spacelabs Medical Mcare 800 Sunnex M9000, M8000 Venni VI-8410P, VI-3510P, VI-1510P, VI-1220P, VI-1210P, VI-1060P, VI-1040P, VI-1060V, VI-8080V Additional Compatibility References

The original compatibility information also identifies compatible configurations across many models from the following manufacturers. Connector type and installed EtCO2 capability should be verified before purchase.

• Airsep
• BioMed Devices
• Carefusion
• Concept Integration
• Creative Medical
• Dixtal
• Drager Medical
• Emtel
• GE Medical
• Information Technology
• Ingmar Medical
• Integrated Medical
• Larson & Toubro
• Maquet
• Medical Systems
• Mindray
• Neumovent
• PPP Emtel
• Patterson Medical
• Sartorius AG
• Sharn Veterinary
• Solaris
• Szmedtech
• Taema
• Triton
• Utas
• Vetronics
• Vetspecs
• Votem
• Witt

Compatibility Verification

The monitor must have the appropriate compatible EtCO2 / CO2 interface and standard 8-pin, 2-key LEMO-style connection. A monitor model appearing in the compatibility list does not necessarily mean that every configuration of that model includes the required CO2 hardware.

If your monitor manufacturer or model is not specifically listed, or if you are uncertain about compatibility, compare the EtCO2 output connector on your monitor with the connector shown in the listing before ordering.

Use & Handling Guidance

• Verify monitor model, connector type, connector keying, and installed EtCO2 capability before connection.
• Use only with compatible patient monitors and sampling accessories.
• Confirm that the 8-pin, 2-key connector is correctly aligned before insertion.
• Do not force the connector into an incompatible port.
• Inspect the module, cable, connector, filter, sampling line, and accessories before use.
• Ensure the reusable bullet filter is correctly connected in the sampling pathway.
• Follow the operating instructions applicable to the connected patient monitor and sampling accessories.
• Use compatible sampling accessories appropriate for the intended intubated or non-intubated configuration.
• Follow applicable facility procedures for cleaning, handling, storage, and replacement of reusable accessories.
