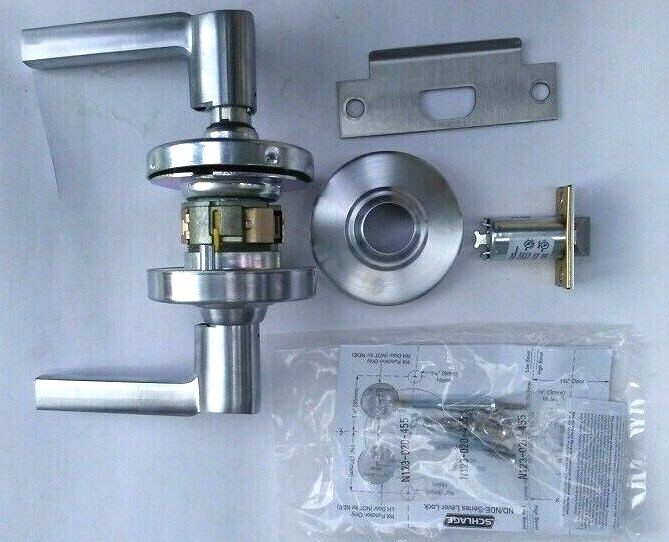

Schlage ND40S LAT 626 Bath/Bedroom Privacy Lock w/ D Spring Latch Brushed Chrome
Condition: NewSchlage ND Series Latitude Design Lever Lock is a handleset lock that can be used as the handle of a door. A privacy function lock can be locked from the inside by a pushbutton. It will remain locked until the handle is used to exit or a screwdriver is used on the outside handle of the lock. This lockset is not designed to use a lock cylinder. Comes in a brushed chrome finish.
The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The Schlage ND is regularly used in healthcare, education, government, office, retail, and other commercial applications.
ANSI Function F76 – No key; emergency access coin turn outside; push-button inside; spring latch. Inside push button locks outside lever. Turn inside lever or close door to release button and prevent lock-out; outside coin turn provides emergency access. Inside lever is always free for immediate egress.
Significantly exceeds ANSI/BHMA Grade 1 requirementsWithstands 3,100 in-lb. of abusive lever torqueShows nearly zero droop or wobble after 16 million cyclesThe strongest cylindrical lock Schlage has ever built
SpecificationsHanding:
All ND-Series lever locksets are non-handed.Door Thickness:
1 5/8" to 2 1/8" (41mm_54mm) standard including Vandlgard functions.1 3/4" - 2" for function ND85. See accessories for spacers required for 1 3/8" doors.
Backset:
2 3/4" (70 mm) standard. 2 3/8", 3 3/4" and 5" (60 mm, 95 mm, 127 mm) optional.
Faceplate:
Brass, bronze or stainless steel. 1 1/8" x 2 1/4" (29 mm x 57mm) square corner, beveled.
Lock Chassis:Zinc plated for corrosion resistance.Levers: Pressure cast zinc, plated to match finish symbols.
Roses: Brass, bronze or zinc.
Strike:
ANSI curved lip strike 1 1/4" x 4 7/8" x 1 3/16" lip to center standard.
Keying Options:
Interchangeable core and Primus high security cylinders. Master keying, grand master keying and construction keying.Certifications
ANSI:
Meets or exceeds A156.2 Series 4000, Grade 1 strength and operational requirements. Meets A117.1 Accessibility Code.
Federal:
Meets FF-H-106C Series 161.California State Reference Code:(Formerly Title 19, California State Fire Marshal Standard) All levers with less than 1/2" (64mm) returns comply; Schlage levers return to within 1/2" of door face.
MEA Certification:
All electrified locking (fail-safe, unlocked by switch or power failures) functions accepted for use in New York City by the City of New York, Department of Buildings (MEA 24-04-E).All levers with less than 1/2" (64mm) returns comply with California Fire Safety Codes.
Florida Building Commission:3/4" and 1/2" throw latch approved for Hurricane Resistance with Miami-Dade County, Florida.UL / cUL:All locks listed for A label single doors, 4" x 8". Letter F and UL symbol.ADA Compliant:
