Sansui 9090DB AM/FM Stereo Receiver Excellent Working Condition For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Sansui 9090DB AM/FM Stereo Receiver Excellent Working Condition:
$2495.00

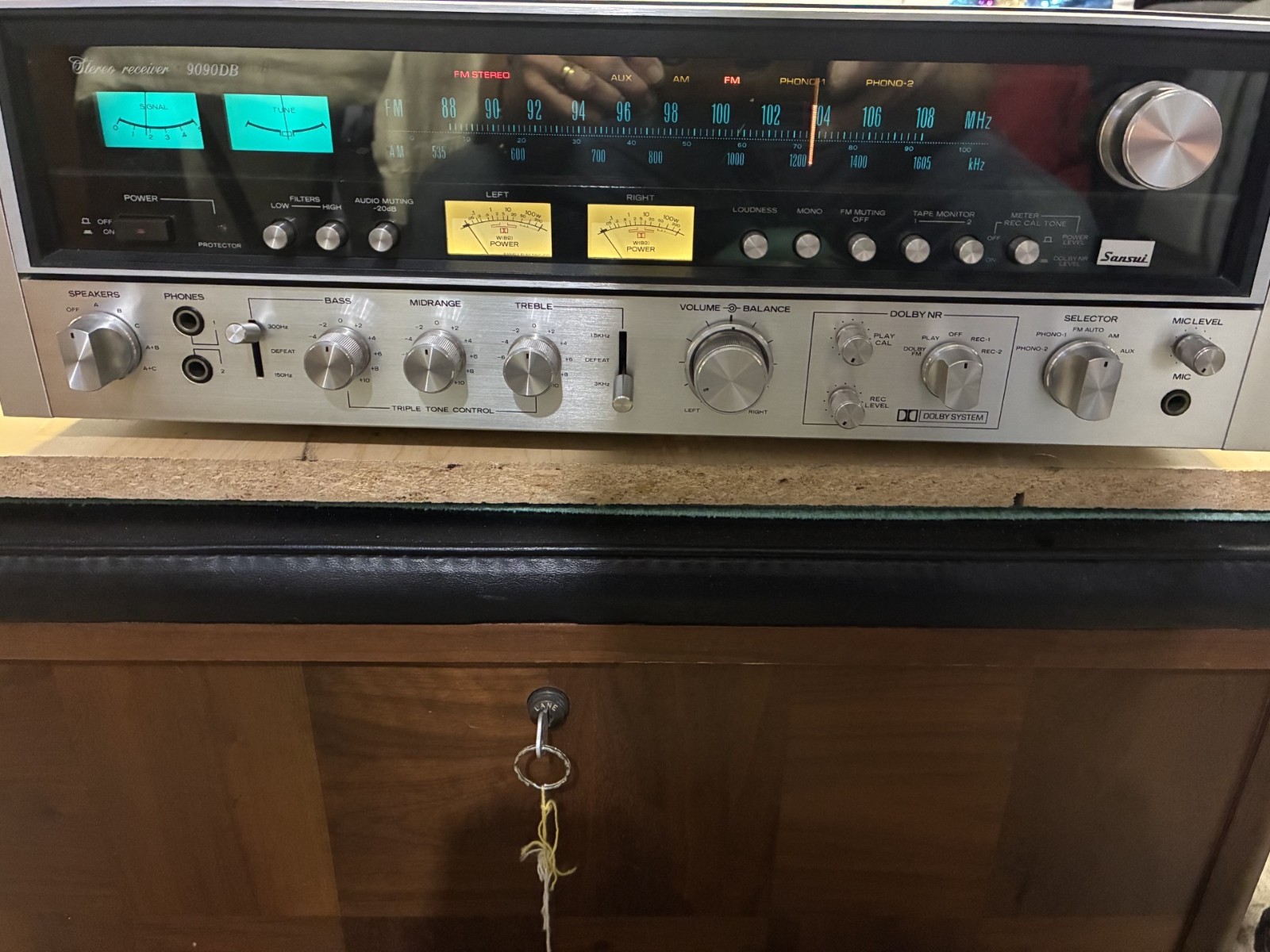

This is a used receiver and has scratches and some normal wear. It's a really nice unit lots of power and has been untouched all original. It very heavy and it will be packed right. Has a chip on one corner of the wood case as in pitchers. DislikeThe Sansui 9090DB is a high-end vintage stereo receiver with 125 watts per channel, wide frequency response, and advanced features for its era.Key Technical Specifications - Power Output: 125 watts per channel into 8 ohms (stereo) with low distortion (0.1% THD) and a damping factor of 30 HiFi Engine+1.
- Frequency Response: 10 Hz to 30 kHz ±1 dB, providing extended bass and treble range HiFi Engine+1.
- Tuner: AM/FM analog tuner with quartz-locked PLL for precise FM reception vintagetechnologyarchive.com.
- Dolby Noise Reduction: Built-in Dolby NR circuit for FM broadcasts and tape playback HiFi Engine+1.
- Tone Controls: Bass, Midrange, and Treble controls with selectable roll-off frequencies; controls are defeatable HiFi Engine+1.
- Inputs: Moving Magnet (MM) phono stage, line inputs, DIN input, and microphone input (4 mV mic, 2.5 mV MM, 150 mV DIN/line), HiFi Engine.
- Outputs: Pre-out (0.775 V), line out (150 mV), DIN out (30 mV), and three pairs of speaker outputs (A, B, C) with selectable combinations HiFi Engine+1.
- Tape Loops: Two tape loops for recording and playback HiFi Engine.
- Signal-to-Noise Ratio: 70 dB (MM), 80 dB (DIN/line), HiFi Engine.
- Channel Separation: 50 dB (MM/line), HiFi Engine.
- Dimensions & Weight: 540 x 182 x 397 mm, 23.6 kg (52 lbs), HiFi Engine+1.
- Year of Release: 1976, part of Sansui’s flagship 'x0x0' series Features
- Full Complementary Output Topology: Eight output transistors for clean, powerful amplification Sound & Vision.
- Analog Power Meters: Direct readout meters for each channel, enhancing visual monitoring of output HiFi Engine.
- Versatile Speaker Options: Supports multiple speaker pairs with A+B or A+C combinations classicreceivers.com+1.
- Vintage Appeal: Highly sought after by collectors and audiophiles for its warm, detailed sound and robust build Highlights
The 9090DB is praised for tight, articulate bass, natural midrange clarity, and a wide, immersive soundstage. FM reception with Dolby NR engaged provides crystalline, low-noise audio, making it a standout receiver of the 1970s vintagetechnologyarchive.com+1. Properly restored units remain highly valued, often selling for $1,700 to $3,000 depending on condition classicreceivers.com.
This receiver remains a classic example of high-fidelity engineering, combining power, precision, and vintage charm for audiophiles and collectors alike. Read less
|
|
