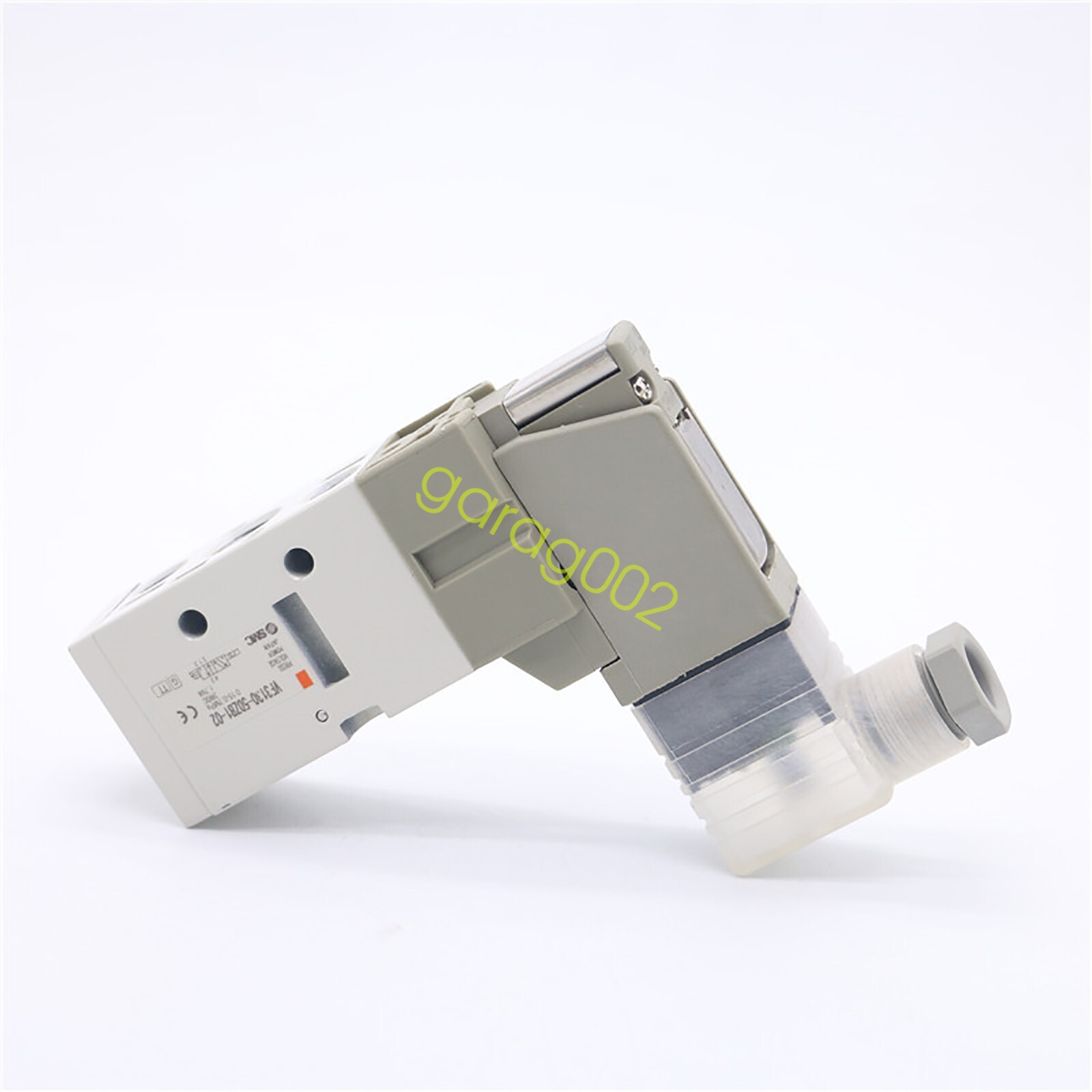

SMC VF3130-5DZD1-02 Air Control Valve - Body Ported (Side), 4-Way, 1 Solenoids, Number of Positions 2, DIN Terminal, 0.75 (A/B to EA/EB) C, 1 (P to A/B) C Flow Coefficient, 1/4 NPTF port
number of ports: 5
overall height: 84.5 mm
piping type: Body Ported (Side)
operating pressure range: +22 to +102 psi
flow direction: 4-Way
response time: 45 ms
number of solenoids: 1
operating temperature range: +14 to +122 °F
number of positions: 2
solenoid power consumption: 1.5 W
solenoid electrical entry: DIN Terminal
valve function: Spool
flow coefficient (cv) / flow factor (kv): 0.75 (A/B to EA/EB) C, 1 (P to A/B) C
solenoid allowable voltage fluctuation: -7 to +10 %
port type: 1/4 NPTF
body material: Aluminum
manual operation type: Locking (Slotted)
seal material: Nitrile
actuation: Piloted Solenoid
standards met: JIS
operating medium: Air
overall length: 122.3 mm
overall width: 44.5 mm
sonic conductance (c): 4 dm3 / (s bar)
