CWUL-10 Industrial UV Laser Water Chiller System For 10W-15W UV Laser Marking Machines

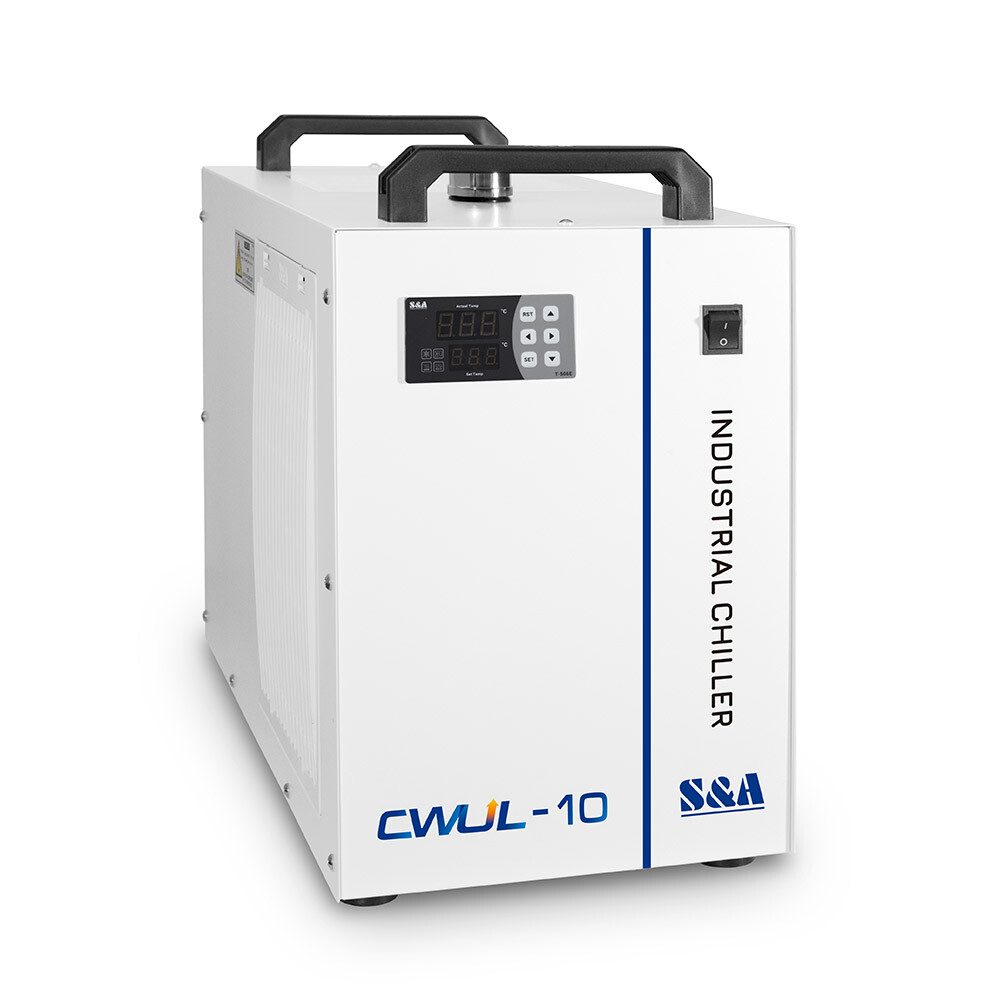

TEYU high-efficiency heat dissipation industrial chiller CWUL-10 is the perfect cooling solution for your 10W-15W UV laser marking machines! It delivers high temperature stability of ±0.3℃ and a refrigeration capacity of up to 1080W, providing active cooling for UV laser marker to ensure stable laser output. Being in a compact and lightweight package, this portable water chiller is built to last with low maintenance, ease of use, energy efficient operation and high reliability.
Features
2. ±0.3°C precise temperature control
3. Temperature control range 5°C ~35°C
4. Active cooling
5. Compact and lightweight package
6. Easy water fill port
7. Visual water level
8. Integrated alarm functionsa
9. Easy maintenance and mobility
Specification Model CWUL-10BITY Voltage AC 1P 220-240V Frequency 60Hz Current 0.4~5A Max. power consumption 1KW Compressor power 0.35 kW 0.47HP Nominal cooling capacity 2559Btu/h 0.75kW 644Kcal/h Precision ±0.3℃ Pump power 0.09kW Tank capacity 6 L Inlet and outlet Rp1/2\" Max. Pump pressure 2.5bar Max. pump flow 15L/min Refrigerant R-134a Reducer Capillary N.W. 24Kg(53lb) G.W. 27Kg(59.5lb) Dimension 22.8\" x 11.4\" x 20.5\" (58cm x 29cm x 52cm) Package Dimension 25.6\" x 14.2\" x 22\" (65cm x 36cm x 56cm)
Note: the working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product. PRODUCT INTRODUCTION
The temperature controller offers high precision temperature control of ±0.2°C and two user-adjustable temperature control modes - constant temperature mode and intelligent control mode.
Easy-to-read water level indicator
The water level indicator has 3 color areas - yellow, green and red.
Yellow area - high water level.
Green area - normal water level.
Red area - low water level.
Integrated top mounted handles
The firm handles are mounted on top for easy mobility.
