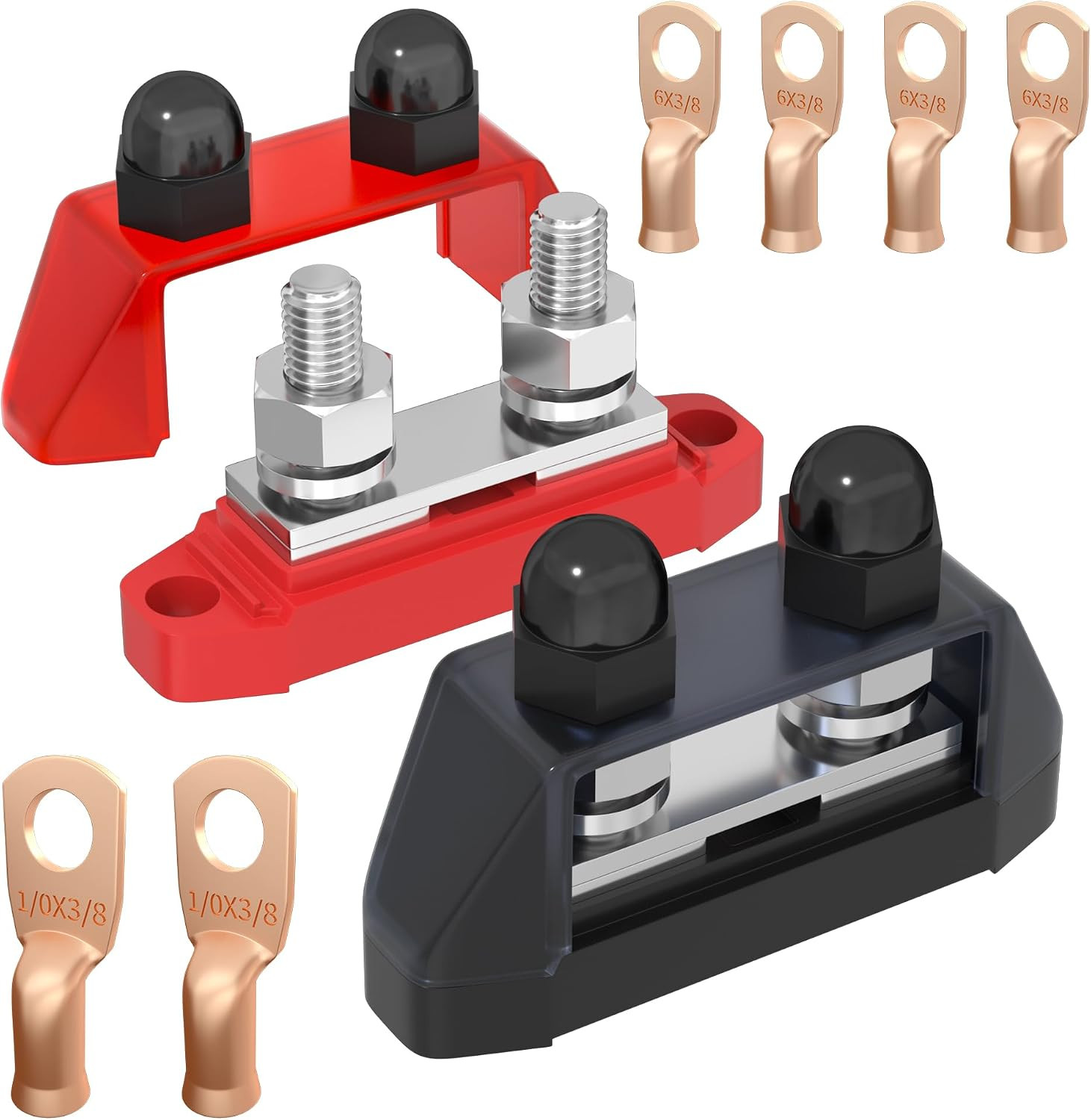

Product description Specifications Brand RVBOATPAT Max Voltage 300V AC/ 48V DC Terminal Studs M10 (3/8") Color Red and Black Copper Lugs 2 x 1/0 AWG copper lug and 4 x 6 AWG copper lug Package Includes 1 x Positive Power Distribution Block, 1 x Ground Power Distribution Block, 4 x Mounting Screws,6 Copper Lugs Nickle Plated Copper Plate
The thickened copper bar can can support up to 250A continuous current, and withstand max 300V AC or 48V DC voltage supply.
3/8 " Studs
The nuts of this 3/8 "terminal studs power distribution block is washer design. Which will contribute to a full contact between lugs and copper, makes the connection safer, more stable current.
Cover
Reinforced cover attached with nylon nuts to prevent accidents and reduce the possibility of short circuits.
Copper Lug
Our copper wiring lugs are made of high-grade copper to prevent corrosion. Can be welded or crimped and suitable for solid or stranded wires.
- Heavy Duty: This 12V bus bar can handle voltage max 48V DC and continuous current max 250A
- Product Information: Each 250A power distribution block contains 2 x 3/8" (M10) studs. All the studs on our busbars are made of 304 stainless steel to protect against corrosion
- What You Get: 1 x positive 12 volt bus bar, 1 x ground 12 volt bus bar, 2 x 1/0 AWG copper lug and 4 x 6 AWG copper lug
- Protective Cover: The marine bus bar comes with a protective cover made of tough polycarbonate plastic for excellent strength and durability, preventing short circuits and making the circuit safer
- Wide Application: Using the battery bus bar for wiring can keep the circuit neat and tidy, reducing the possibility of short circuit. Suitable for car, caravan, boat, yacht, solar system, etc
