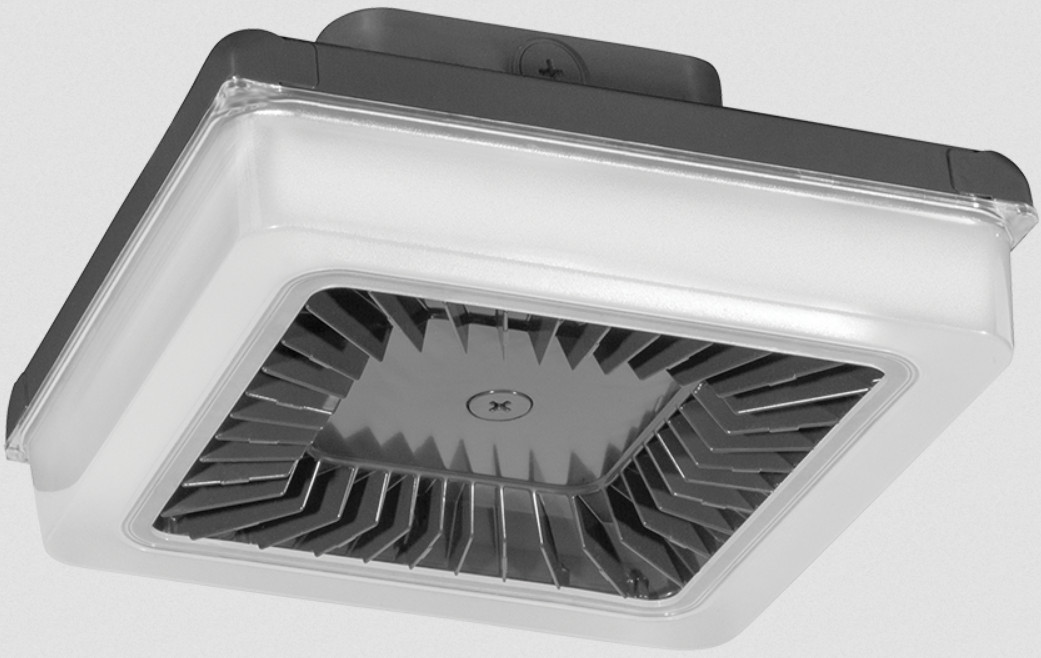

RAB PORTO PRT30/480/D10/WS2 MOD1 — 30W 5000K LED Garage / Canopy Light w/ Custom WS2 Sensor (20ft Mounting) — 480V — Bronze — New in Box
New, unused and in original factory packaging. This is the genuine RAB Lighting Porto 14" LED garage/canopy light, model PRT30/480/D10/WS2 MOD1 (also listed as 14IN 30W COOL DIM 480V). It is a complete integrated fixture – no separate bulbs required.
Designed for outdoor and indoor commercial/residential use where low-glare, high-efficiency lighting is needed: parking garages, canopies, loading docks, covered walkways, workshops, warehouses, utility areas, and similar wet or damp locations. This RAB Lighting PORTO fixture is a premium 30W 5000K LED garage light and canopy light with 3601 lumens, IP66 rating, motion sensor, Wattstopper technology, 0-10V dimming, DLC listed, UL Listed, bronze finish, wet location rated, vandal resistant, new in box.
Features an integrated custom Wattstopper WS2 MOD1 multi-level motion + photocell sensor (factory configured for 20 ft mounting height) that automatically adjusts output, plus 0-10V dimming, IP66 ingress protection, 20% uplight to eliminate the “cave effect,” and DLC Premium listing for maximum rebates. (DLC Premium listed (code P5DRFSDX or equivalent) for highest-tier utility rebates — verify current QPL status at designlights.org/qpl for your utility program, as older versions phase out after Dec 2026.)
Verified specifications (sourced directly from RAB Lighting official product pages and spec sheets):
- Wattage: 30W nominal (~29.4W input)
- Light Output: 3,601 lumens
- Color Temperature: 5000K (Cool White)
- CRI: 78
- Efficacy: 130.5 lm/W
- Voltage: 480V (wired for 480 VAC)
- Dimming: 0-10V driver (dims to 10%)
- Sensor: Integrated custom Wattstopper WS2 MOD1 multi-level motion + photocell (optimized for 20 ft mounting height; adjustable high/low/off modes, time delay, cutoff delay, sensitivity, setpoint; optional WSREM handheld wireless tool for programming – not included)
- Uplight: 20% (eliminates “cave effect” on ceilings)
- Lens: Frosted polycarbonate, low-glare, vandal-resistant
- Housing: Die-cast aluminum with external fins, gasketed with high-temp silicone
- Mounting: Pendant or surface mount (accepts ½" or ¾" NPS pendants; pendant not included)
- Ratings: IP66, Suitable for Wet Locations, UL Listed, DLC Premium, IES LM-79 & LM-80 tested, California Title 24 compliant
- Lifespan: 100,000 hours L70
- Operating Temperature: –40°F to +167°F
- Weight: ~10.5 lb
- Dimensions: 14" housing
- Finish: Bronze (BZ)
- Equivalent replacement: ~100W metal halide
- Made in Thailand for RAB Lighting Inc., Northvale, NJ
Additional details from packaging:
- Wiring tag: “Wired For 480 VAC”
- Safety: UL Listed, Suitable for Wet Locations; California Prop 65 warning
