🦷 Compact & Portable: BD-402 Dental Unit with Built-in Compressor & Suction 🦷
- ✅ ALL-IN-ONE PORTABLE DESIGN:Built-in oil-less air compressor, adjustable high suction, 3-way syringe, and water system – everything you need in one compact unit. Weighs only16kg.
- ✅ QUIET & RELIABLE:Operates at just40dB– library-quiet. The 550W compressor delivers65 L/min at 0.6 MPafor consistent handpiece power.
- ✅ LIGHTWEIGHT PROTECTIVE CASE:High-density wooden box with aluminum foil –lighter and strongerthan traditional cases. Easy to transport and store.
- ✅ SIMPLE OPERATION:Foot control for handpiece and suction. Saliva ejector and 3-way syringe are activated by the foot switch (suction and handpiece cannot work simultaneously – single use only).
- ✅ FLEXIBLE CONNECTION:Comes with4-hole handpiece tubes by default. Need 2-hole? Just leave a message and we\'ll send the right one.

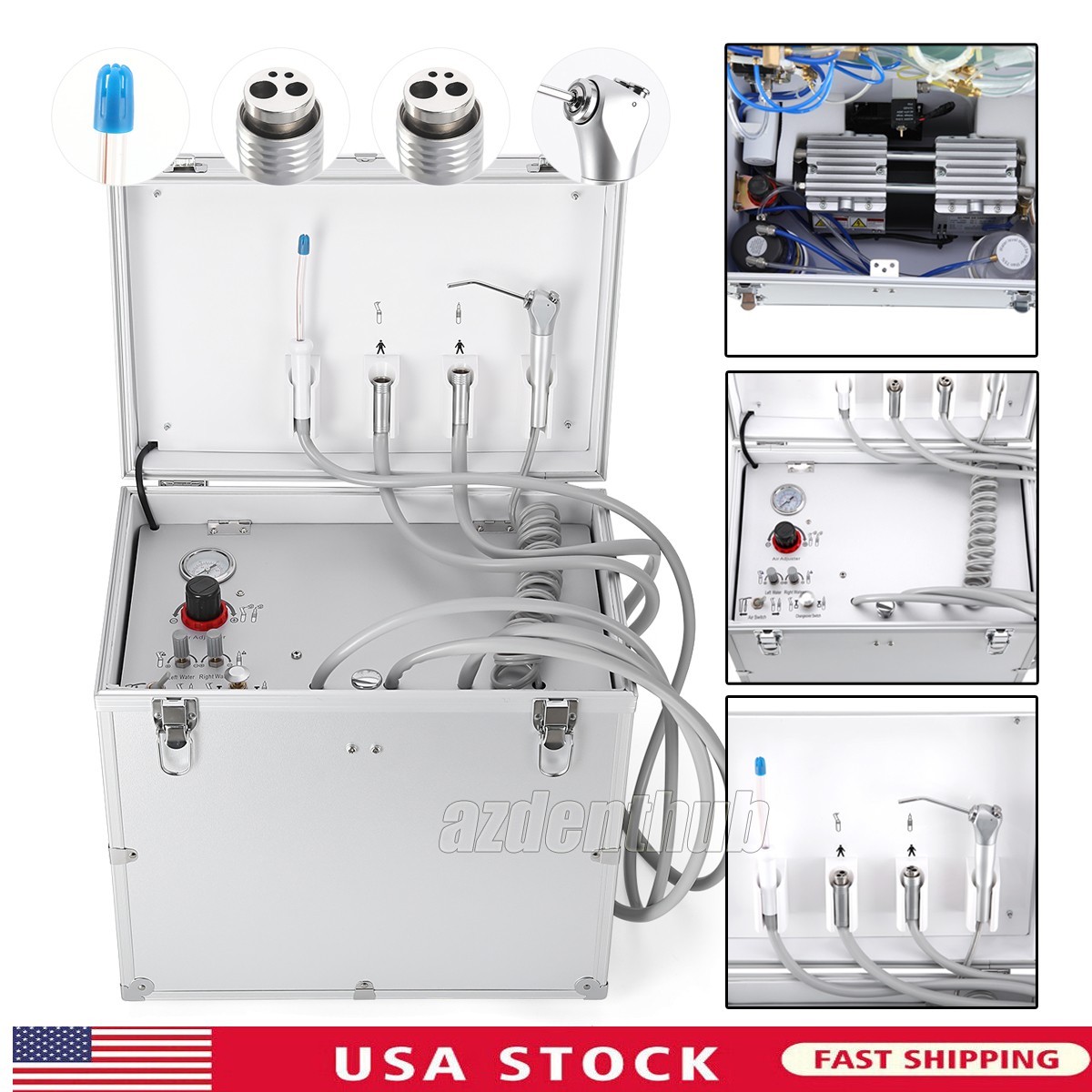

Ordinary paragraphPortable Dental Unit with Air Compressor
Evacuation System and the Handpiece cannotwork at the same time. Single use only
When using the saliva suction and 3 Way-Springefunctions, you need to step on the foot switch.
High-density wooden box with aluminum foil, the product is lighter and stronger
Technical data
Model:BD-402Portable Dental Unit
Votalge:110 V/60Hz,
Power:550W
Speed R.P.M:1400r/min
Air Flow:65L/min
Pressure:0.6Mpa
Net Weight:16Kgs
Gross Weight:19Kgs
Noise:40dB
Packing Size:46*35*50cm
Note: This product is only suitable for 110V voltage, please do not use 220-240V voltage, as 220-240V will cause the machine to burn out.
Standard Accessoiries：
Oiless Air Compressor Motor 1pc
3 Way-Springe 1pc
High Speed Handpiece Pipe 1pc
Low Speed Handpiece Pipe 1pc
High Suction(Ajust) 1pc
Water Bottle 1pc
Drain Bottle 1pc
Foot Control 1pcSafety Guidelines
1, Before operating the unit, please read the manual carefully and preserve it for future reference.
2, Please operate and maintain the unit strictly in accordancewith the operational instructions.
3, The user should read the instructions supplied with the dental unit carefully.
4, Symbol “Attention” denotes that before using the device, read the operating manual carefully and carry out all the instructions to avoid any damage or injury.
5, Please contact the local agent or the manufacturer if the unit needs repairs. We will supply a high quality of service and assistance for you.Warning:
1 The power switch should be turned off when the machine stopped working, the transformer and solenoid valves will heat to burn if long-term power or no stop the power.
2. Please drain off the water when the water on 2/3 of Suction bottle, the water will come to motor if the water is higher than 2/3 on suction bottle, the air motor will leakage of electricity or burn if the water come to air motor. [NOTE]:Both 4 Hole and 2 Hole are available, we send 4 Hole by default!
If you neee 2 Hole, please leave us a message, we will send you the right one!
