ES50B-VET
Introduction

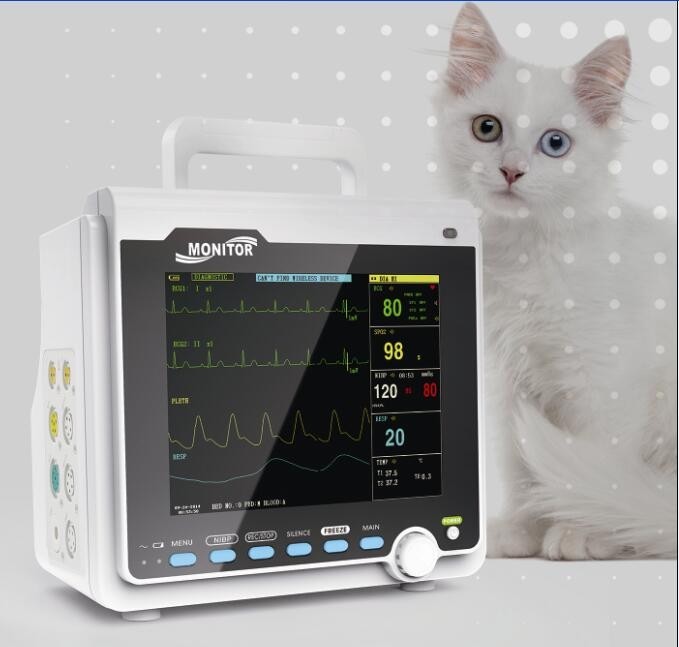

The Veterinary Monitor has abundant monitoring functions and can be used for monitoring of cat, dog and other animals. User may select different parameter configurations according to different requirements. It adopts 100-240V～,50/60Hz for power supply, 8'' TFT color LCD for displaying real-time data and waveform, and up to 8-channel waveform and all monitoring parameters can be displayed simultaneously. A 48mm thermal printer has equipped with the device. In addition, it can be connected to the central monitoring system via wired/wireless network so as to form a network monitoring system.This device can monitor such parameters as ECG, RESP, SpO2, PR, NIBP and dual- channel TEMP, etc. It integrates parameter measurement module, display and recorder in one device to form a compact and portable equipment.
FunctionsStandard parameters: ECG, RESP, SpO2, PR, NIBP, dual-channel TEMP1)ECG Heart rate(HR) ECG waveform Arrhythmia and ST-segment analysis2)RESP Respiration rate(RR) Respiration waveform3)SpO2 Oxygen saturation(SpO2) Plethysmogram(PLETH) waveform Pulse rate(PR) Bar graph4)NIBP Systolic pressure(SYS), Diastolic pressure(DIA), Mean pressure(MEAN)5)TEMP T1, T2, TDIt has abundant functions, such as audible and visual alarm, trend data storage and output, NIBP measurement, alarm event marking and drug concentration calculation, etc.
Features1)8'' TFT color LCD, multi-language interface(Simplified Chinese, Traditional Chinese, English, French, German, Turkish, Spanish, Portuguese, Italian, Dutch, Romanian, Russian, Kazakhstan, Polish, Czech).2)Fanless design, quiet, energy-saving and clean, which reduces the possibility of cross-infection.3)With standard interface, OxyCRG, trend chard, big character interface and view bed, convenient to observe.4)Waveform, parameter color and location can be set optionally.5)Operation mode: keys and buttons.6)Display up to 8-channel waveform on one screen.7)Display 7-lead ECG waveform on one screen, and with ECG step function.8)Adopt digital SpO2 technology, anti-motion and anti-ambient light interference, and measurement can be performed under the circumstance of weak filling.9)NIBP measurement mode: Manual/AUTO/STAT, storage for 4800-group NIBP data.10)Review for 71 alarm events of all parameters and 60 arrhythmia alarm events.11)Drug concentration calculation and titration table functions.12)Print trend table data with one-key.13)Connect to Central Monitoring System by 3G, WiFi or wired mode.14)AC/DC, built-in rechargeable lithium battery achieve uninterrupted monitoring.
Buy Safe Product!
The following FDA Disclaimer is required for all listing in Healthcare category and is included for REFERENCE:
The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If the item is subject to FDA regulation, We will verify your status as an authorized purchaser of this item before shipping of the item.
