Contact UsShop by CategoryPiovan DS428HT Desiccant Dryer w/ 3500 lb. Hopper Dryer & Vacuum LoaderSKU: IP14590 Item Specifications
- In Stock: 1
- Brand: Piovan
- Condition: Used
- Notes: Used System, Comes with Spare Heating Elements, Valves, Piping, Filters, Controllers, etc. 30 Day Warranty.
- Model: DS428HT
- Type: Desiccant Dehumidifying Dryer
- Voltage: 460Vac 3 Phase
- Capacity: 160 Kw
-
- MPN: DS428HT
- Media 1 Description: Piovan DS428HT Desiccant Dryer
- Media 2 Description: Piovan DS428HT Desiccant Dryer w/ 3500 lb. Hopper Dryer & Vacuum Loader
- Media 3 Description: Piovan DS428HT Desiccant Dryer w/ 3500 lb. Hopper Dryer & Vacuum Loader
- Media 4 Description: Piovan DS428HT Desiccant Dryer w/ 3500 lb. Hopper Dryer & Vacuum Loader
- Media 5 Description: Piovan DS428HT Desiccant Dryer w/ 3500 lb. Hopper Dryer & Vacuum Loader
- Media 6 Description: Piovan DS428HT Desiccant Dryer w/ 3500 lb. Hopper Dryer & Vacuum Loader
- Media 7 Description: Piovan DS428HT Desiccant Dryer w/ 3500 lb. Hopper Dryer & Vacuum Loader
- Media 8 Description: Piovan DS428HT Desiccant Dryer w/ 3500 lb. Hopper Dryer & Vacuum Loader
- Media 9 Description: Piovan DS428HT Desiccant Dryer w/ 3500 lb. Hopper Dryer & Vacuum Loader
- Media 10 Description: Piovan DS428HT Desiccant Dryer w/ 3500 lb. Hopper Dryer & Vacuum Loader
- Media 11 Description: Piovan DS428HT Desiccant Dryer w/ 3500 lb. Hopper Dryer & Vacuum Loader
- Media 12 Description: Piovan DS428HT Desiccant Dryer w/ 3500 lb. Hopper Dryer & Vacuum Loader
- Country of Origin: Italy
Product Description

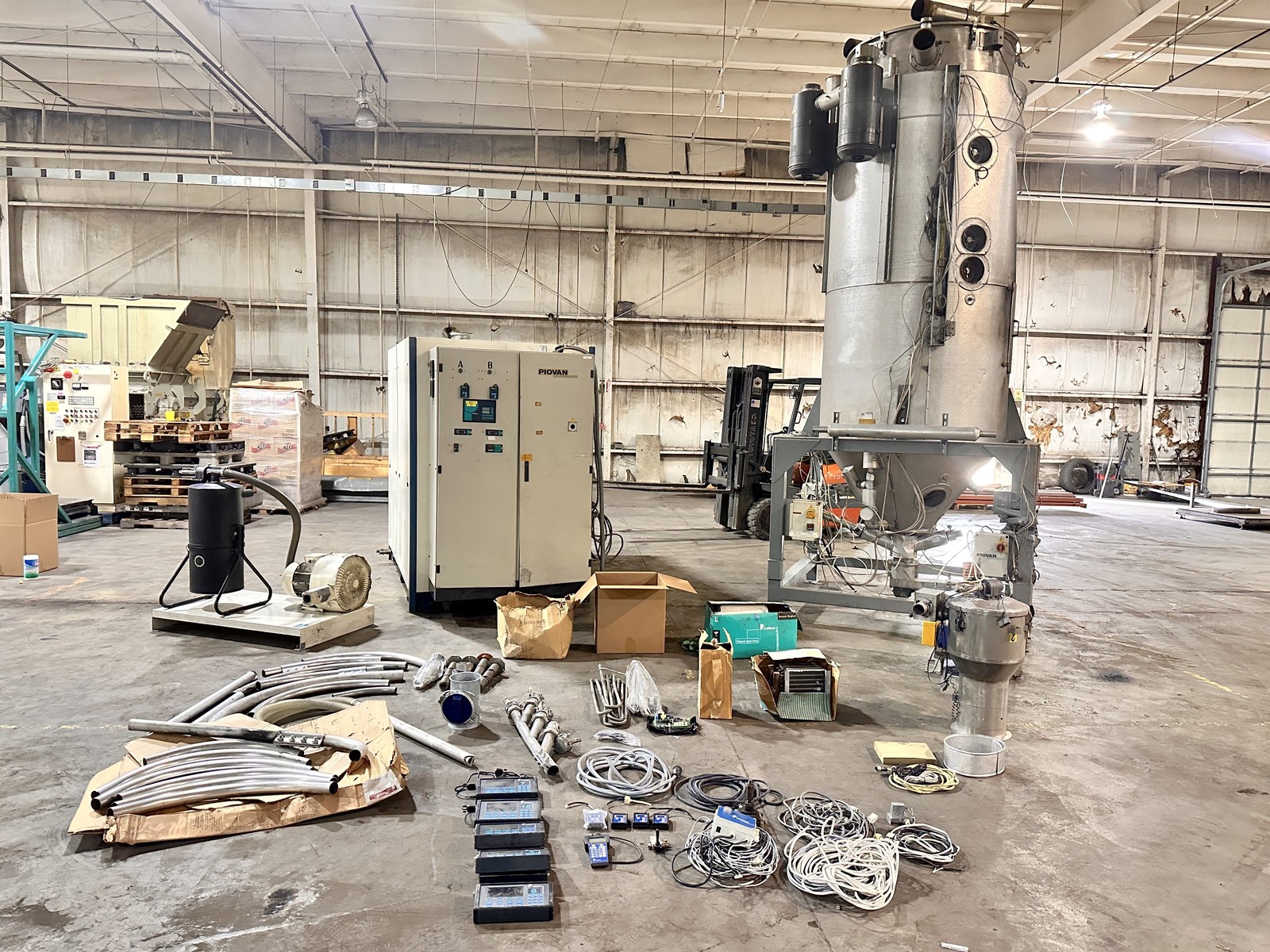

Piovan DS428HT Desiccant Dryer System, a comprehensive solution tailored for precise and reliable material drying in industrial settings. This system comprises the DS428HT Desiccant Dryer, accompanied by the Piovan Stainless Steel T3500IX Hopper Dryer, Piovan F38/2 Vacuum Loader, and Piovan 1/2Hp Rotary Air Lock Model 952Z276, among other components.
Key Features:
High Capacity and Efficiency: With a power rating of 160Kw, the Piovan DS428HT Desiccant Dryer ensures efficient drying performance, capable of processing up to 6000 lb/hr. Equipped with water-cooled coils, it effectively cools and dehumidifies the air for optimal drying results.
Dual Desiccant Chambers: Featuring two desiccant chambers, this system enables continuous operation by allowing one chamber to regenerate while the other remains in production mode, ensuring uninterrupted workflow and maximizing productivity.
Spare Parts: The system includes various components such as new heating elements, sensors, keypad controller convector units, assorted piping, and repair parts for the drying system.
Durable Construction: The Drying Hopper, constructed from insulated stainless steel, offers durability and longevity. Equipped with level sensors, filtration canisters, and adjustable height legs, it provides versatility and ease of operation.
Enhanced Flexibility: The Steel Frame of the drying hopper features adjustable height legs, allowing for customizable configuration to suit specific operational requirements. At present, the legs have been welded in place, but they can be easily adjusted for extra height once the welds are cut, providing enhanced flexibility in setup and usage.
Serial Number: ODS 257-8153
Power Rating: 160Kw
Voltage: 460Vac 3 Phase
Manufacturing Date: 1998
Drying Hopper Model: T3500IX
Hopper Type: Insulated Cone Bottom
Total Height: 15\' Tall
Inside Diameter: 4\' Diameter
Hopper Material: Stainless Steel
Vacuum Loader Model: F38/2
Vacuum Load Horsepower: 8.6Kw
Rotary Air Lock Model: 952Z276
Rotary Air Lock Ratio: 38/15
Rotary Air Lock Horsepower: 0.5Hp
Despite being in storage for some time, the Desiccant Drying System remains in good condition, with only minor cosmetic issues such as broken door hinges and a missing main disconnect knob. Please note that while efforts were made to provide accurate specifications, information was limited, and some details, particularly regarding throughput ability, may be approximate. We recommend conducting thorough research to ensure compatibility with your specific process requirements. With its robust design and comprehensive features, this Piovan system offers unparalleled performance and reliability for PET processing applications. Don\'t miss the opportunity to enhance your production efficiency with this versatile and dependable drying solution.
