Description:

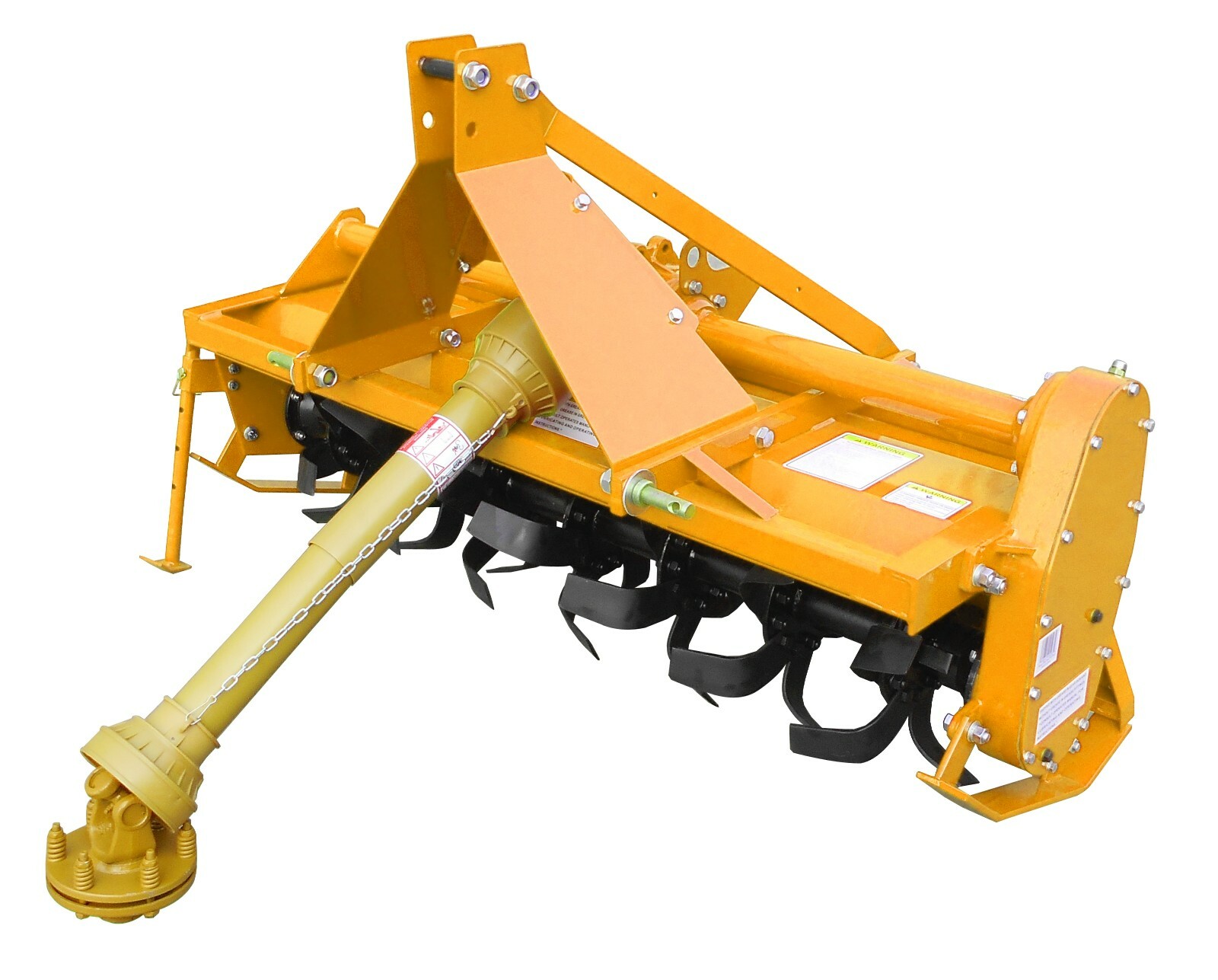

Brand New High QualitySigma Brand3 Point Hitch Rotary Tiller 5' FT 60" With PTO Shaft
Heavy duty cast iron gear box
Working Width: 5'
Maximum Depth of Cut: 6" (achievable under ideal conditions)
Total Number of Tines: 42
Recommended PTO HP: 24-45
Hitch Requirement: Cat. I
Tillage Depth & Operation:
Depth Control: Determined by blade design, soil conditions, and operating techniques. The skid plate reduces resistance but does not control depth.
Soft Soil: Adjust blade-to-soil distance to avoid excessive depth. If digging too deep, raise the control lever slightly or shorten the lifting rods.
Hard Soil: Improve penetration by shortening the upper link, adding weight, shifting to a lower gear, or increasing blade shaft speed.Key Features:
Durable Construction: 42 heavy dutytines for efficient soil cultivation.
Power & Compatibility: Heavy-duty cast iron gearbox, PTO shaft included. Fits 24-45 HP tractors with a Category I hitch. Not compatible with compact tractors.
Optimal Performance: Counterclockwise blade rotation (facing the gearbox side) for effective tillage.
Shielded PTO Shaft with Slip Clutch
Powder Coat
Standard Replaceable Skid Shoe Kits with Parking Stand
Rotary Tiller Rotation Direction: When facing the gearbox side, the blades of the rotary tiller rotate counterclockwise.
Gear box shipped dry. Gear oil needed for proper operation. See owner’s manual for specifications.
Product Information:
Length: 57 Inch
Width:40 Inch
Height: 34 Inch
Weight: 680 LBS
Ifyouarenotsure,please leave message on andwewillbeabletoassistyou.
