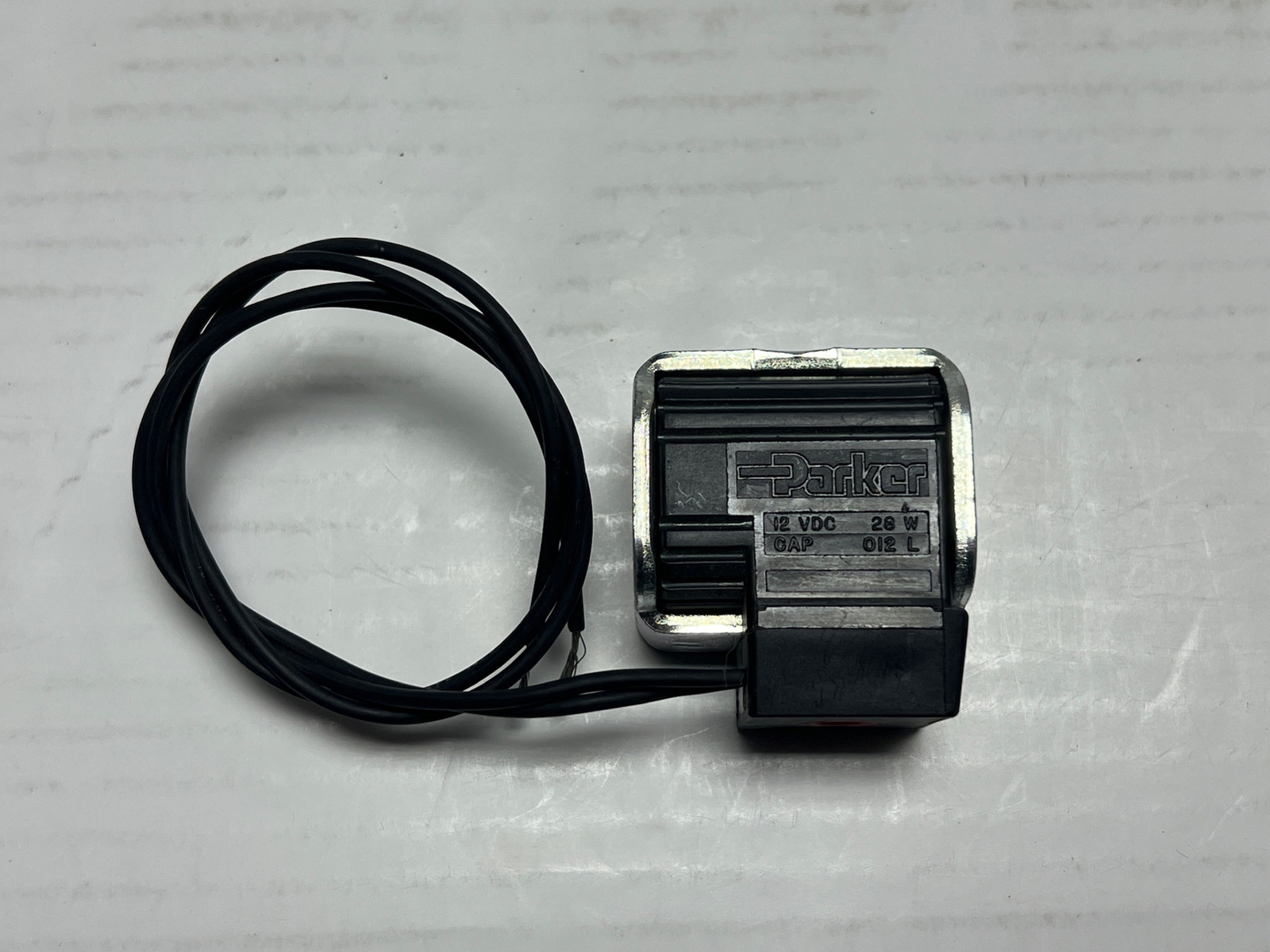

Parker Hydraulics 12 VDC 28W CAP 012 L Cartridge Valve Solenoid Coil 5/8" &Leads Parker Hydraulics 12 VDC 28W CAP 012 L Cartridge Valve Solenoid Coil 5/8" &Leads
Brand New
Genuine Parker Part: CAP 012 L
28W
Hole 5/8"
For Use With: 4UA82, 4UA83, 4UA88, 4UA89, 4UA90, 4UA91
Technical Specifications
- Voltage: 12 VDC
- Wattage (w): 28 - High Watt
- Connection Type: Dual Lead Wire
- Diode: No
- Current: 2.33 A
- Resistance: 5.14 Ω
- Duty Cycle: Continuous @ 100% voltage %
- Coil Type: Puissant
- Weight: 0.64 lb, 0.29 kg
- Function: 5/8" Super Coil
Item Information
• Oil and Gas
• Material Handling Equipment
• Construction Equipment
• Agriculture Machinery
• Vocational & Municipal Equipment
• TransportationFeatures/Benefits:
• 5/8 inch inner diameter
• Integral Deutsch connector coil exceeds IP69K standards
• Integral Deutsch connector coil thermal shock dunk test rated
• Integral Amp Jr. coil exceeds IP67 standards for thermal shock, water resistance and “dunk capability”
• Universal 50/60 Hz operation
• Waterproof coil hermetically sealed, requires no O-rings or waterproofing kits
• External plated steel flux-carrying band (unlike encapsulated band) enables coil to withstand severe thermal shocks without cracking
• Symmetrical coil can be reversed without affecting performanceApplications:
• Power Units
• Drills
• Presses
• Mixers
• Balers
• Combines
• Cranes
• CompactorsFor additional voltage or termination options, please consult the factory for details. Additional technical insight:
The 5/8 inch coils are most commonly used with 10 and 12 size cartridges. Typically, low watt coils are used in low pressure (less than 3000 psi) applications and the high watt coils in high pressure (up to 5000 psi) applications.
If there's something you're not sure about or have a question about anything, just send us a message by clicking "Ask a question" below the listing. Free Shipping is only for the inner 48 states (Large Freight Shipments Do Not Apply).
,
