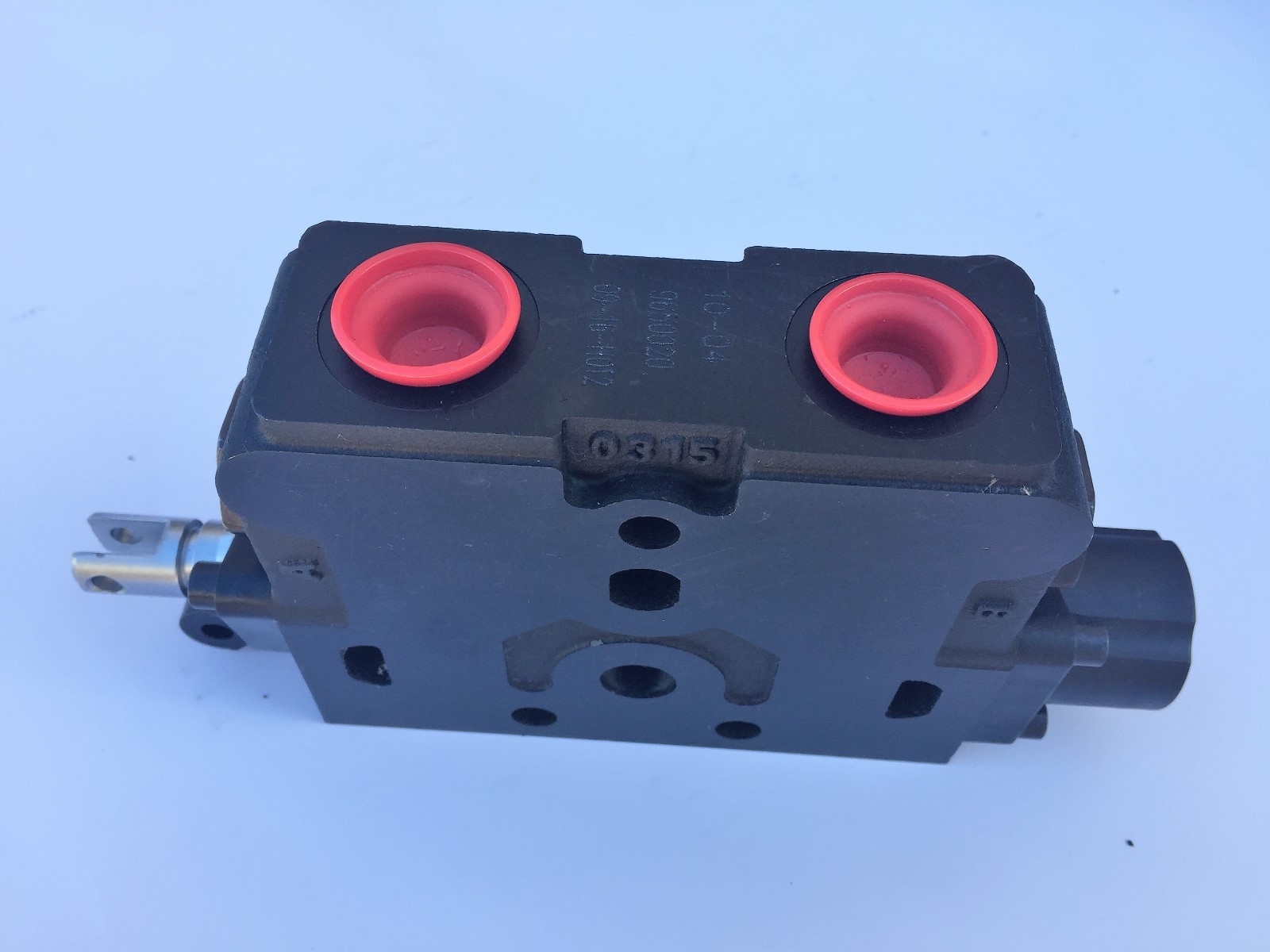

Parker Gresen V20 Valve
work sectionCompatible
when you order, please state which work section code you need.
1. Work section
20-08-04, Double acting( 4Way/3position), cylinder spool (A/B blocked at neutral), spring return to center. SAE8 Ports
20-10-04, Double acting( 4Way/3position), cylinder spool (A/B blocked at neutral), spring return to center. SAE10 Ports
20-50-04, Double acting( 4Way/3position), cylinder spool (A/B blocked at neutral), spring return to center. 1/2" NPT Ports
20-08-03, Single acting( 3Way/3position), cylinder spool (A/B blocked at neutral), spring return to center. SAE8 Ports
20-10-03, Singleacting( 3Way/3position), cylinder spool (A/B blocked at neutral), spring return to center. SAE10 Ports
20-50-03, Singleacting( 3Way/3position), cylinder spool (A/B blocked at neutral), spring return to center. 1/2" NPT Ports
2. work section
20-08-D4, Double acting( 4Way/3position), cylinder spool (A/B blocked at neutral), 3 position detent. SAE8 Ports
20-10-D4, Double acting( 4Way/3position), cylinder spool (A/B blocked at neutral), 3 position detent,SAE10 Ports
20-50-D4, Double acting( 4Way/3position), cylinder spool (A/B blocked at neutral), 3 position detent. 1/2" NPT Ports
20-08-D3, Single acting( 3Way/3position), cylinder spool (A/B blocked at neutral), 3 position detent. SAE8 Ports
20-10-D3, Singleacting( 3Way/3position), cylinder spool (A/B blocked at neutral), 3 position detent. SAE10 Ports
20-50-D3, Singleacting( 3Way/3position), cylinder spool (A/B blocked at neutral), 3 position detent. 1/2" NPT Ports
3. Work section
20-08-F4, Double acting( 4Way/3position), motor spool (A/B floatat neutral), spring return to center. SAE8 Ports
20-10-F4, Double acting( 4Way/3position), motorspool (A/B floatat neutral), spring return to center. SAE10 Ports
20-50-F4, Double acting( 4Way/3position), motorspool (A/B floatat neutral), spring return to center. 1/2" NPT Ports
20-08-F3, Single acting( 3Way/3position), motorspool (A/B floatat neutral), spring return to center. SAE8 Ports
20-10-F3, Singleacting( 3Way/3position), motorspool (A/B floatat neutral), spring return to center. SAE10 Ports
20-50-F3, Singleacting( 3Way/3position), motorspool (A/B floatat neutral), spring return to center. 1/2" NPT Ports
4. Work section at
20-08-DF4, Double acting( 4Way/3position), motorspool (A/B float at neutral), 3 position detent. SAE8 Ports
20-10-DF4, Double acting( 4Way/3position), motorspool (A/B floatat neutral), 3 position detent. SAE10 Ports
20-50-DF4, Double acting( 4Way/3position), motorspool (A/B floatat neutral), 3 position detent. 1/2" NPT Ports
shipping to US 48 states only.
if to other stats and international, please contact us for extra shipping cost
