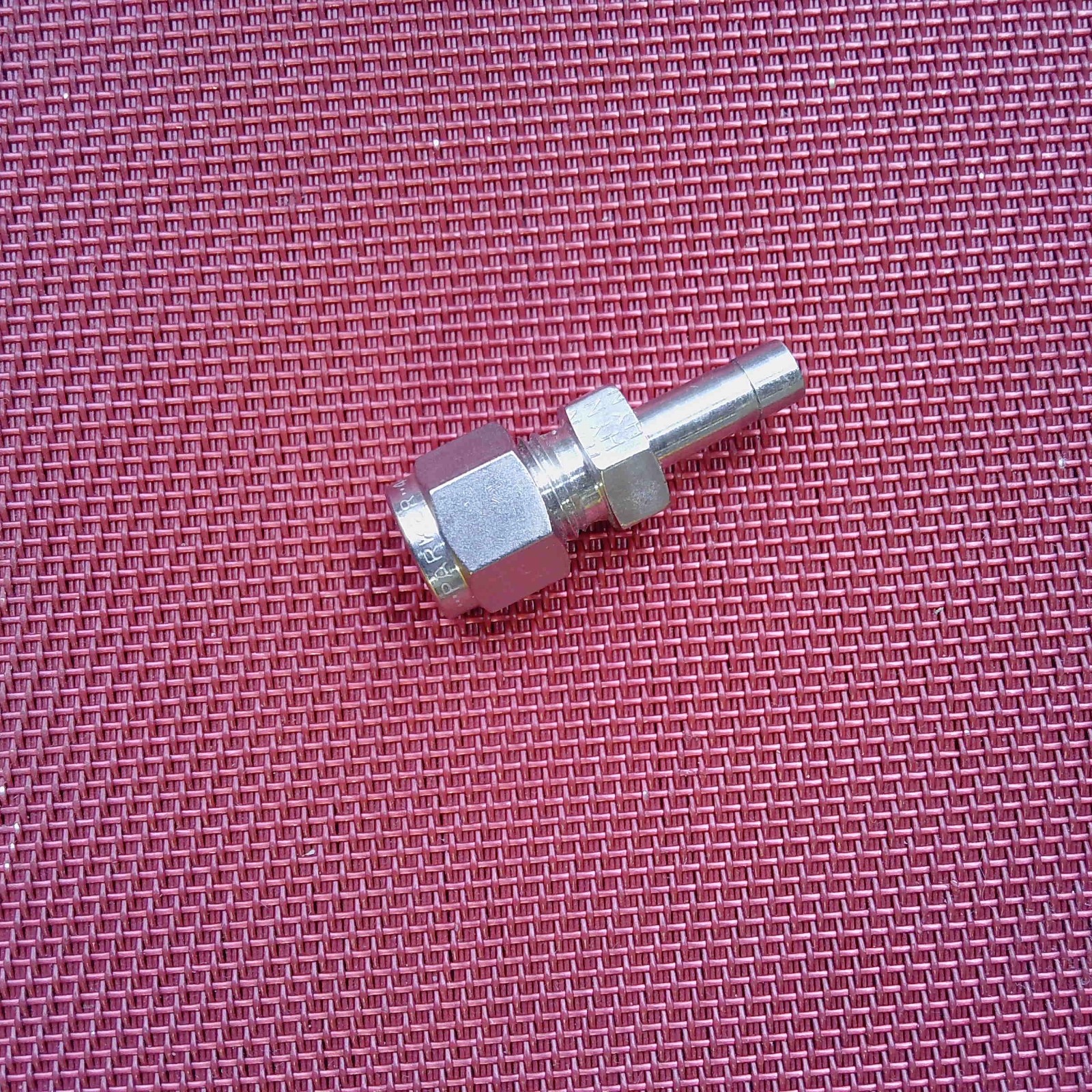

The 1/4" OD. tube adapter/stub end can be inserted into tube fitting body such as a Union, Elbow, Tee, Cross or even a Valve and provides 7,000 psig allowable working pressure at -20° to 100°F by being machined to 0.040 inch seamless tube wall with fully annealed 316 stainless steel forgings per ASTM A-182/ASME SA-182 and bar stock material standards per ASTM A-276/ASME SA-479.
This fitting is interchangeable with other major manufactures of the dual ferrule system such as Swagelok, Parker A-Lok, Hoke Gyrolok, Bi-Lok, Brennan, DK-Lok, Ham-Let, HY-Lok, SSP, Superlok, and Tylok. It is even interchangeable with single ferrule fittings such as Parker CPI, Tylok CS-Lok, SSP Unilok, and Ham-Let One-Lok.
Tube adapters are recommended where space is a premium. Other features include:
- Eliminates alignment problems when installing pipe elbows or tees.
- Reduce inventory. The need for stocking special elbows and tees is not required.
- Effects a union at every joint to allow for complete assembly, disassembly and reassembly.
- No more "deburring" and cutting short lengths of tubing.
- Allows close coupling with pre-determined lengths.
Need more? Different size? Click here for the theDoDadman's store. Using the outside diameter of the tube size needed, locate the correct parameter below and input this into the store's search engine. This will return both Tube & Tube x NPT stainless steel instrumentation fittings at the lowest price anywhere.
Tube Parameter Tube Parameter 1/16" SS-1003/8" SS-6001/8" SS-2001/2" SS-8103/16" SS-3005/8" SS-10101/4" SS-4003/4" SS-12105/16" SS-5001.0" AdapterConnection 11/4" Tube OD Compression (dbl ferrule)Connection 21/4" OD Tube Adapter/StubMaterial316 Stainless SteelTemp. Range-325° to 1200°FIndustry Stds.Meets/Exceeds ANSI/ASME B1.20.1 | AS-7105 (frm. MIL-P-7105B) | ISO 9001:2008Material Stds.ASTM A-276/ASME SA-479 Bar Stock | ASTM A-182/ASME SA-182 Forgings
