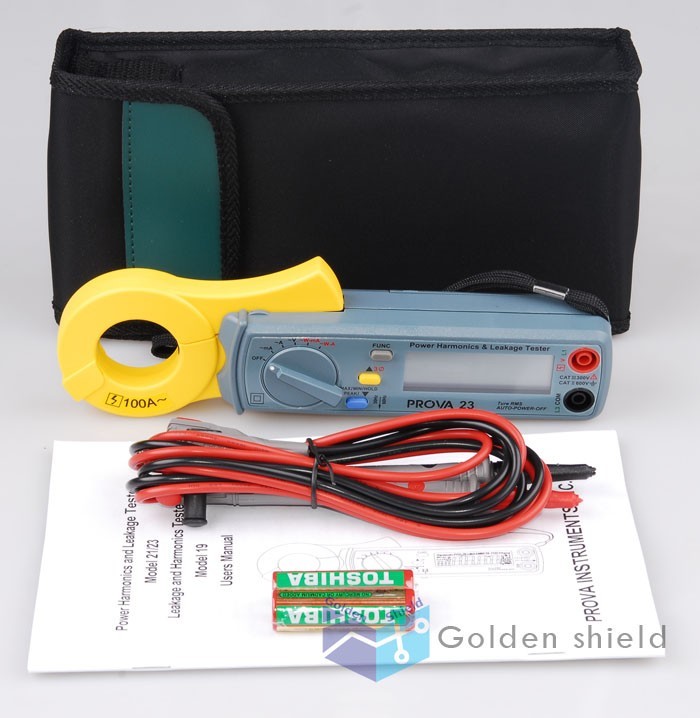

PROVA-23 Digital Power Harmonics and Leakage Tester Meter V/A True RMS 100A✦Kd For Sale

Welcome to our store. Happy shopping

• Store Home
• New Arrival
• Ending Soon
• Add to Favourites
• View response
• Contact us

Why Choose us

• Free Shipping
• Fast Shipping Within 24 hours
• 30 Day Money Back Guarantee
• Trusted Store Satisfaction Guarantee
• Secure Shopping With Confidence
• Best Price and Good Quality
• Professional Customer Service

FEATURES:

MODEL PROVA 19, 21, 23

• True RMS value (V and A)
• Leakage Current Measurement at 10 μ A Resolution
• Harmonic Analysis (V and A) to the 99 th Order
• Better Understanding of High Frequency Harmonic Analysis (up to 5/6 KHz)
• Non-interrupted Harmonic Analysis
• Analysis of Total Harmonic Distortion (THD-F)
• Analysis of Crest Factor (C.F.)
• Fast Peak Function (33 μ s and 39 μ s)
• Programmable CT Ratio (1 to 250)

Model 21(50A) and 23(100A)

• W, KW, H.P.
• VA, KVA, VAR, KVAR
• PF, Phase Angle ( Φ )
• Energy (mWH, WH, KWH)
• Analysis of Standby Power Consumption
• Balanced 3 Φ Power Quality
• Balanced 3 Φ Sequence

SPECIFICATION:

Please refer to users manual for more detailed and up-to-date description of specification.

AC Watt (50 or 60 Hz, PF 0.5 to 1. CT = 1, Accuracy of Readings)

Model 21 (0 to 50A), Model 23 (0 to 100A)

Range

Resolution

Accuracy 21 (0 - 30A)

Accuracy 23 (0 - 60A)

Accuracy 21 (30 - 50A)

Accuracy 23 (60 - 100A)

0.000 – 9.999 W

0.001 W

±1% ± 0.02 W

±2% of VA ± 5dgts

10.00 – 99.99 W

0.01 W

±1% ± 0.2 W

±2% of VA ± 5dgts

100.0 – 999.9 W

0.1 W

±1% ± 0.2 W

±2% of VA ± 5dgts

1.000 – 9.999 KW

0.001 KW

±1% ± 0.02 KW

±2% of VA ± 5dgts

10.00 – 99.99 KW

0.01 KW

±1% ± 0.2 KW

±2% of VA ± 5dgts

100.0 – 999.9 KW

0.1 KW

±1% ± 0.2 KW

±2% of VA ± 5dgts

1000 – 9999 KW

1 KW

±1% ± 2 KW

±2% of VA ± 5dgts

AC Current (50 or 60 Hz, True RMS)

Range (Model 19,21)

Range (Model 23)

Resolution

Accuracy of Readings

0.30 – 60.00mA

0.30 – 60.00mA

0.01mA

±0.5% ± 5dgts

60.0 – 600.0mA

60.0 – 600.0mA

0.1mA

±0.5% ± 5dgts

0.030 – 3.000 A

0.030 – 9.999 A

0.001 A

±0.5% ± 5dgts

3.00 – 30.00 A

10.00 – 60.00 A

0.01 A

±0.5% ± 5dgts

30.00 – 50.00 A

6 0.00 – 99.99 A

0.01 A

±1.0% ± 5dgts

AC Voltage (50 or 60 Hz, True RMS)

Range

Resolution

Accuracy of R.

Range

Resolution

Accuracy of R.

3V – 250V

0.1 V

±0.5% ± 5dgts

250V – 600V

0.1 V

±0.5% ± 5dgts

Harmonics of AC Voltage in % and Magnitude (1 to 99th order)

Range

Resolution

Accuracy in %

Resolution

Accuracy in Magnitude

50V – 600V

0.1 %

±0.5%

0.1 V

±0.5% ± 0.5V

Harmonics of ACA in % Percentage and Magnitude (1 to 99th order)

Range (Model 19, 21)

Range (Model 23)

Res.

Accuracy (%)

Res.

Accuracy of R.

10.00 – 60.00mA

10.00 – 60.00mA

0.1 %

±0.5%

0.01mA

±0.5% ± 0.1mA

60.0 – 600.0mA

60.0 – 600.0mA

0.1 %

±0.5%

0.1mA

±0.5% ± 1mA

0.5 – 3.000 A

0.5 – 9.999 A

0.1 %

±0.5%

0.001 A

±0.5% ± 0.01 A

3.00 – 30.00 A

10.00 – 60.00 A

0.1 %

±0.5%

0.01 A

±0.5% ± 0.1 A

30.00 – 60.00 A

6 0.00 – 99.99 A

0.1 %

±1.0%

0.01 A

±1.0% ± 0.1 A

Power Factor and Phase Angle (PF, Φ ,Model 21 and 23)

Range (PF)

Resolution

Accuracy

Range (Φ)

Resolution

Accuracy

0.000 – 1.000

0.001

± 1°

-180° to 180° (0 ° to 360 ° )

0.1°

± 1°

Total Harmonic Distortion (THD-F, 1 to 99th order) Crest Factor (C.F., Accuracy of Readings)

Range

Resolution

Accuracy of R.

Range

Resolution

Accuracy of R.

0.0 – 999.9 %

0.1%

± 0.5% ± 5 digits

1.00 – 99.99

0.01

± 5% ± 30 digits

General Specification

Conductor Size

30mm (approx.)

Battery Type

1.5V SUM-3 x 2

Display

4+2+2 digits LCD

Power Consumption

5mA (approx.)

Auto-Power-Off

30 minutes

No. Of Samples/Period

512 (V & A), 256 (W)

LCD update rate

2 times / sec.

Weight

200g (battery included)

Operating Temperature

-10 ° C to 50° C

Operating Humidity

< 85% relative

Storage Temperature

-20° C to 60° C

Storage Humidity

:< 75% relative

Dimension

210 (L) x 62 (W) x 35.6mm (H), 8.3" (L) x 2.5" (W) x 1.4" (H)

Accessories

test leads, Carrying bag x 1, Users manual x 1

Option

alligator clips
