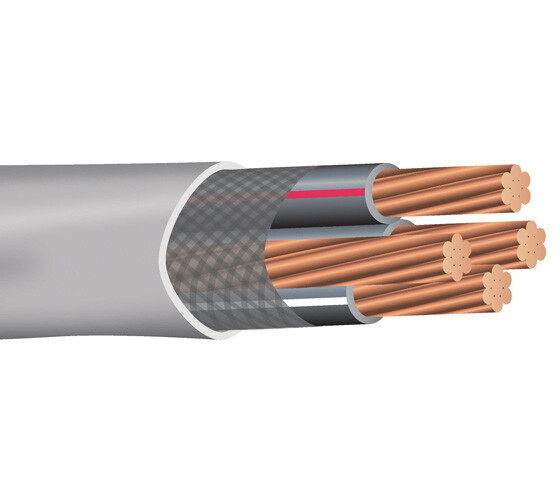

PER FOOT 1-1-1-3 Copper SER Service Entrance Cable PVC Jacket Gray 600V Click Thumbnails to EnlargeAPPLICATION
- 1-1-1-3 Copper SER Service Entrance Cable is primarily used to convey power from the service drop to the meter base and from the meter base to the distribution panel board; however, the cable may be used in all applications where Type SE cable is permitted. SER may be used in wet or dry locations at temperatures not to exceed 90°C. Voltage rating is 600 volts.
CONSTRUCTION
- Three copper conductors, stranded and insulated with heat and moisture resistant, chemically crosslinked polyethylene (type XHHW-2). Phase identified and cabled together with bare copper ground conductor. Cable core covered with flame retardant binder tape and overall grey PVC jacket.
STANDARDS
- Federal Specification A-A-59544
-National Electrical Code, NFPA 70. 2011 Edition
-RoHS Compliant
-Sunlight Resistant
PRODUCT SPECIFICATIONSSize AWG 1Strand 19Grounding Conductor Size AWG 3Insulation Thickness (inches) 0.055Jacket Thickness (inches) 0.030OverallDiameter (inches) 1.09Ampacity (30°C ambient) 90°C Wet/Dry 145 AmpsWeight (lbs/1000ft) 1122CUT TO LENGTH
Looking for Custom Lengths? Please feel free to contact us, We can do all cut to length.
OTHER VALUE ADDED SERVICES
• Expedited Shipping
• Cut to Length Paralleling
• Color Striping & Dyeing
• Reel Lagging
• Special Labeling & Packages
