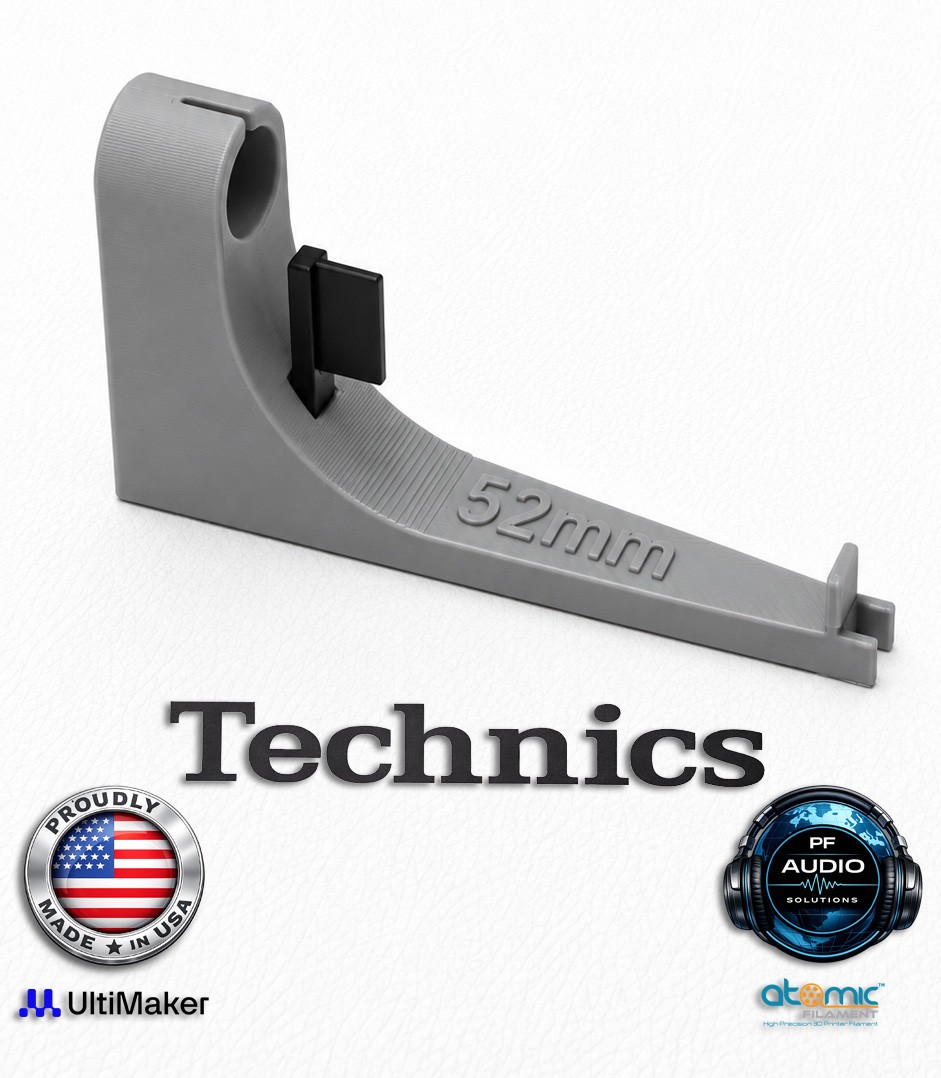

******please check new extended version of this gauge*****🎯 Precision 3D-Printed 52mm Overhang Gauge for Technics Turntables
Simple • Accurate • Fast Cartridge Setup
Correct cartridge alignment is one of the most important steps when setting up a turntable. Even a high-quality cartridge and stylus cannot perform at their best if the stylus is positioned incorrectly in the headshell.
This Precision 52mm Overhang Gauge is designed specifically for Technics turntables that use the standard 52mm stylus position. It provides a fast and repeatable way to position your cartridge correctly without complicated measurements or guesswork.
Simply install your cartridge loosely in the headshell, insert the headshell into the gauge, and adjust the cartridge until the stylus tip reaches the 52mm reference position.
💿 COMPATIBLE TECHNICS TURNTABLES
This gauge is designed for Technics turntables and tonearms that use the 52mm headshell-to-stylus setup specification.
It is suitable for many classic, vintage and modern Technics models using the standard removable SME-style / Technics-style headshell.
🎚️ SL-1200 / SL-1210 Professional & DJ Series
✓ SL-1200
✓ SL-1200MK2
✓ SL-1200MK3
✓ SL-1200MK3D
✓ SL-1200MK4
✓ SL-1200MK5
✓ SL-1200MK5G
✓ SL-1200MK6
✓ SL-1200MK7
✓ SL-1210MK2
✓ SL-1210MK3
✓ SL-1210MK5
✓ SL-1210M5G
✓ SL-1210MK6
✓ SL-1210MK7
🎛️ Modern Technics Reference / Grand Class Models
✓ SL-1200G
✓ SL-1200GAE
✓ SL-1200GR
✓ SL-1200GR2
✓ SL-1210G
✓ SL-1210GAE
✓ SL-1210GR
✓ SL-1210GR2
📻 Classic & Vintage Technics Models
✓ SL-D2
✓ SL-D3
✓ SL-Q2
✓ SL-Q3
✓ SL-Q202
✓ SL-Q303
✓ SL-23
✓ SL-1300
✓ SL-1400
✓ SL-1500
✓ SL-1600
✓ SL-1700
✓ SL-1800
✓ SL-1900
✓ SL-2000
✓ SL-3200
🔊 Additional Technics Models
The gauge may also work with additional Technics turntables equipped with compatible Technics geometry and removable headshells.
⚠️ IMPORTANT: Technics produced many turntables and tonearm variations over the years. Compatibility should be determined by the required 52mm stylus-to-headshell reference measurement, not simply by the Technics brand name.
If your Technics service manual or setup instructions specify a 52mm cartridge/stylus position, this is the type of gauge designed for that adjustment.
🎵 WHY IS CORRECT OVERHANG CALIBRATION SO IMPORTANT?
As a record plays, the stylus does not travel across the record in a perfectly straight line. A conventional pivoted tonearm moves through an arc across the record surface.
The exact position of the cartridge inside the headshell therefore affects the angle at which the stylus follows the record groove.
This is why cartridge overhang is not simply a cosmetic adjustment — it is an important part of tonearm geometry.
Incorrect overhang can increase tracking-angle error and may contribute to:
✗ Increased distortion
✗ Less accurate tracking
✗ Reduced clarity
✗ Poorer stereo imaging
✗ More noticeable distortion toward difficult passages
✗ Less consistent performance across the record
Correct cartridge positioning can help:
✓ Reduce tracking-angle error
✓ Reduce unnecessary distortion
✓ Improve tracking across the record
✓ Improve stereo imaging and channel presentation
✓ Produce cleaner and more consistent playback
✓ Provide a repeatable cartridge setup
✓ Make cartridge replacement much faster
✓ Help your cartridge perform as intended
Even an expensive cartridge cannot deliver its full potential if its basic geometry is incorrectly adjusted.
Proper cartridge alignment is one of the most important setup steps for getting the best performance from your turntable.
📐 THE TECHNICS 52mm STANDARD
Many Technics S-shaped tonearms use a 52mm cartridge setup specification.
This measurement establishes the correct position of the stylus tip relative to the headshell connector/reference point.
Instead of trying to position a ruler next to an extremely delicate stylus, this dedicated gauge provides a convenient physical reference.
It is especially useful when:
✓ Installing a new cartridge
✓ Changing cartridges between headshells
✓ Setting up a second or third headshell
✓ Replacing an old cartridge
✓ Checking an existing cartridge installation
✓ Buying a used turntable with an unknown cartridge setup
✓ Experimenting with different cartridges
✓ Returning the cartridge to the recommended Technics geometry
If you own several cartridges mounted on interchangeable headshells, this gauge can become an essential part of your turntable setup tools.
🛠️ FAST & EASY CARTRIDGE SETUP
The gauge is custom designed and 3D printed specifically for cartridge alignment.
The objective is simple:
Make the Technics 52mm cartridge setup fast, accurate, repeatable and easy to check.
🔧 How to Use
1. Mount the cartridge loosely to your headshell.
2. Insert the headshell into the gauge until it reaches the designed reference position.
3. Carefully slide the cartridge forward or backward using the headshell mounting slots.
4. Align the stylus tip with the 52mm reference position.
5. Make sure the cartridge remains straight in the headshell.
6. Carefully tighten the cartridge mounting screws.
7. Check the stylus position again after tightening.
Your headshell is now ready to be installed back onto the tonearm.
⚠️ Always handle your cartridge and stylus carefully. Never push or force the stylus against the gauge.
⭐ WHY USE A DEDICATED OVERHANG GAUGE?
You can technically establish the 52mm position using a ruler, but accurately measuring the position of a tiny and delicate stylus tip can be difficult.
A dedicated gauge makes the procedure considerably easier.
✓ No ruler next to your delicate stylus
✓ No repeated measurements
✓ No guessing by eye
✓ Fast cartridge changes
✓ Easy alignment verification
✓ Repeatable setup for multiple headshells
Simple tool. Precise setup. Better cartridge alignment.
📦 WHAT\'S INCLUDED1 × Precision 52mm Overhang Gauge
Designed for compatible Technics turntables using the 52mm cartridge setup specification.
🚫 HEADSHELL & CARTRIDGE ARE NOT INCLUDED
Any headshell, cartridge, stylus or turntable shown in the listing photographs is used for demonstration purposes only.
🚚 ABOUT SHIPPING — PLEASE READ
Due to the high number of delayed, undelivered and untrackable USPS First-Class Mail shipments, I have discontinued free First-Class shipping.
To provide a more reliable service and reduce delivery problems, orders are now shipped using USPS Ground Advantage, which includes tracking and insurance and generally provides more dependable delivery.
To help keep shipping costs reasonable, I continue to cover approximately 50% of the shipping expense myself.
This allows me to provide tracked shipping while keeping the buyer\'s shipping charge as low as reasonably possible.
⚠️ PLEASE NOTE
THE HEADSHELL, CARTRIDGE, STYLUS AND TURNTABLE ARE NOT INCLUDED.
This listing is for:
1 × 52mm OVERHANG GAUGE ONLY
