Omega FMA5518A Gas Mass Flow Controller For Sale

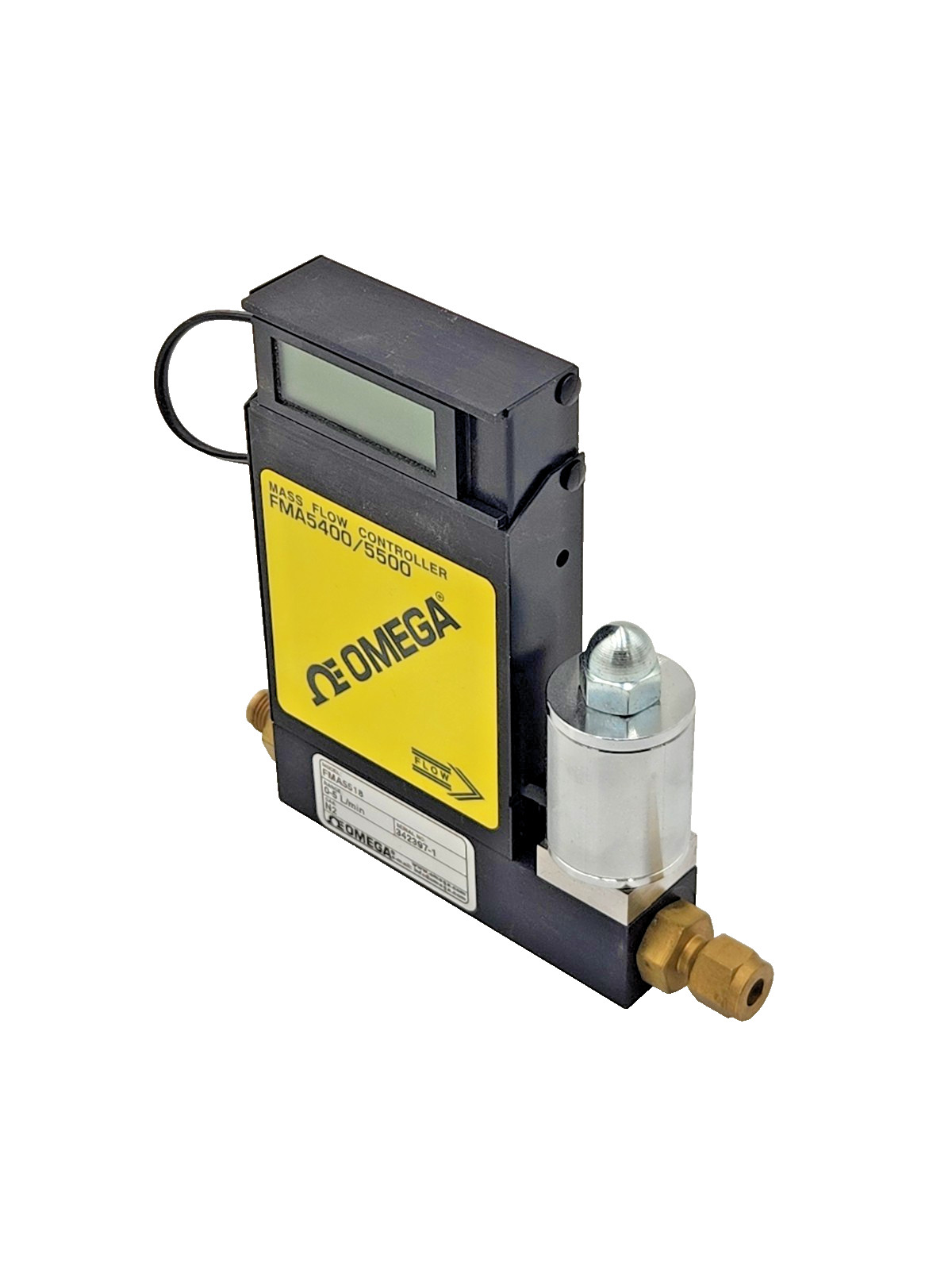

Omega FMA5518A Gas Mass Flow Controller

Condition:Great condition, unsure of use status, though appears as if unused. Untested. Please review all photos carefully for the exact item you will Omega Engineering

Model: FMA5518A

Series: FMA5500A Series

Device Type: Thermal Gas Mass Flow Controller with Integral Display

Flow Range: 0 to 5 SLPM (Nitrogen)

Flow Measurement Principle: Thermal Mass Flow

Accuracy: ±1% Full Scale

Repeatability: ±0.5% Full Scale

Turndown Ratio: 40:1

Response Time: 5 seconds to within ±2% of set flow rate

Maximum Pressure Drop: 50 psid

Maximum Gas Pressure: 1000 psig (70 kg/cm²) for ranges up to 100 SLPM; 25 psig optimum operating pressure

Operating Temperature: 41 to 122°F (5 to 50°C)

Pressure Coefficient: 0.01% FS per psi

Temperature Coefficient: 0.15% FS/°C

Leak Integrity: 1 × 10-7 cc/sec helium maximum

Output Signals: 0 to 5 VDC and 4 to 20 mA

Control Input: Local potentiometer or remote 0 to 5 VDC / 4 to 20 mA setpoint

Supply Voltage: 12 to 26 VDC, 800 mA Maximum

Process Connection: 1/4 in. Male NPT

Wetted Materials: Anodized Aluminum, 316 Stainless Steel, Brass, FKM O-Rings

Display: Integral 3½-Digit LCD, Tiltable Over 90°

Compliance: EN55011 Class 1 Class B, EN50082-1

Weight: Approximately 4 lb (1.8 kg)

More Specifics:

• Thermal mass flow technology measures gas mass flow directly without requiring compensation for normal pressure and temperature variations.
• Integrated electromagnetic proportional control valve automatically maintains the programmed flow rate despite inlet or outlet pressure fluctuations.
• Built-in LCD provides direct local indication of flow in engineering units for convenient monitoring and adjustment.
• Supports both local adjustment and remote analog control, making it easy to integrate into automated process control systems.
• Provides simultaneous 0 to 5 VDC and 4 to 20 mA analog outputs for PLC, DAQ, and industrial control interfaces.
• Suitable for nitrogen calibration with conversion factors available for many other process gases.
• Designed for laboratory, OEM, industrial automation, semiconductor, analytical instrumentation, gas blending, and research applications.

About Omega Gas Mass Flow Controllers:Omega FMA5400A and FMA5500A Series mass flow controllers are precision instruments designed to accurately measure and automatically regulate gas flow in demanding laboratory and industrial applications. Using thermal mass flow sensing technology, they measure gas mass flow directly rather than volumetric flow, providing stable and repeatable control without requiring compensation for normal temperature or pressure changes within the specified operating limits.These controllers are commonly used in semiconductor manufacturing, analytical laboratories, environmental monitoring, gas mixing systems, fuel cell research, leak testing, calibration equipment, biotechnology, pharmaceutical production, and OEM process control equipment where precise gas delivery is critical. The integrated proportional control valve continuously adjusts flow to maintain the desired setpoint while supporting both local and remote operation.Please verify the model number, calibrated gas, flow range, process connections, power requirements, control signals, and output configuration before purchasing to ensure compatibility with your application.
