Olidesmart Olide-120B Sensor Open Automatic Touchless Swing Door with 2pcs Olide-512 Touchless Wireless Wave to Open Switch

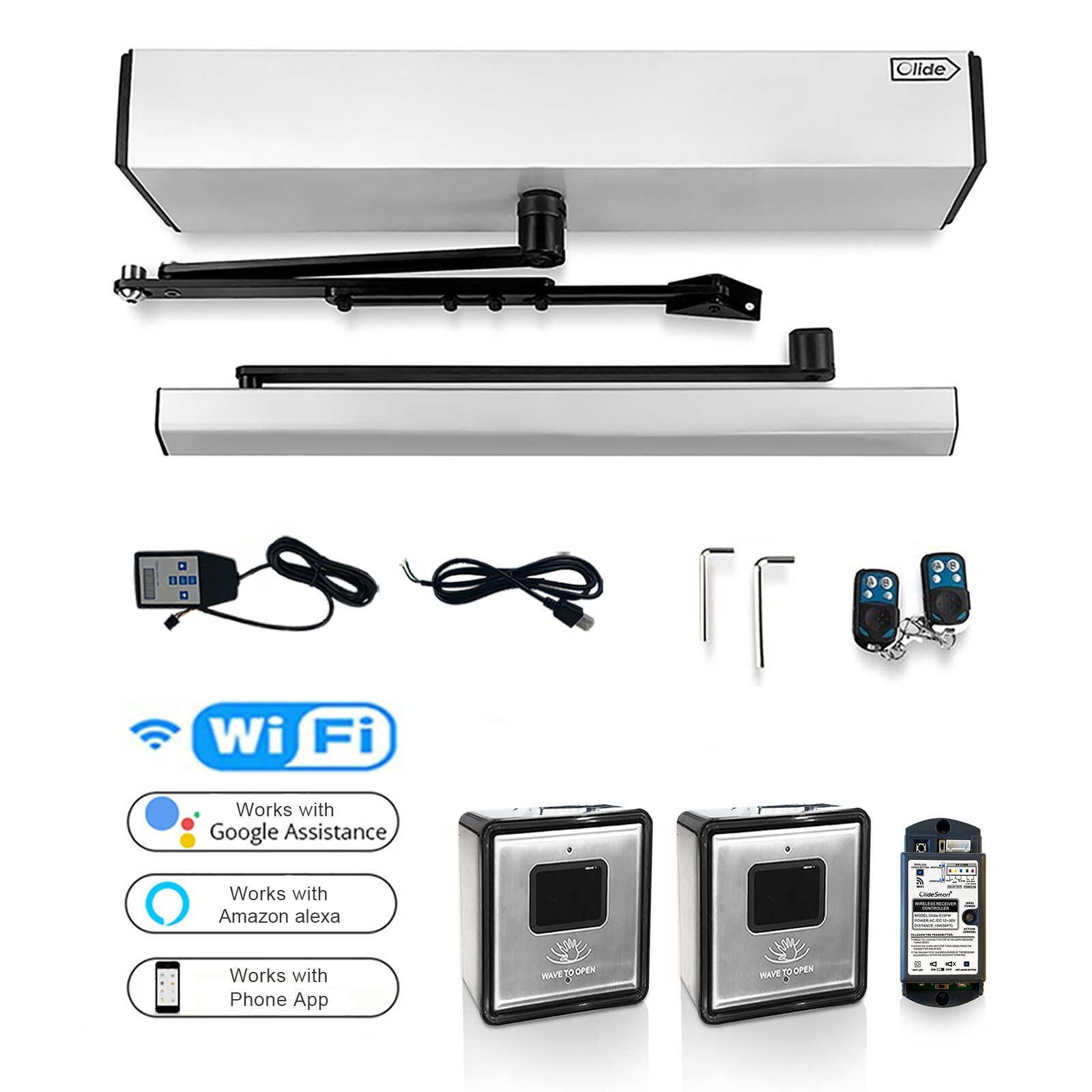

Sensor Open Automatic Touchless Swing Door Includes
- 2 pcs Wireless and not hardwired remotes,working frequency is 315MHz
- 2pcs wireless toucheless wave sensor to open switches Olide-512 and 1 pcs smart wifi receiver
- Outswing bracket push arm and inswing bracket pull arm
- Parameters adjusting hand programmer
- 2 pcs auto door attention stickers
- Screw and screw anchors
- Black and white manual
- Standard plug and cords
The Olide-120B is a low energy automatic ada swing door opener that is activated by wireless touchless wave to open switch,phone APP,besides,it can be also voice controlled by Alexa,google assistant.
This system operates in both automatic and manual modes,In manual mode, door opens with very little pressure and closes slowly providing easy operation for handicapped or pedestrians
With advanced wide voltage technique,it makes the Olide-120B highly adapt to voltage fluctuations between 110-220VAC +/-10%, it can be used in areas almost of the world whether it is a peak in urban power or insufficient power supply in remote areas.More energy saving and longer service life than ordinary single input voltage.
The Olide-120B is a kit with an automatic door opener for both inswinging and outswinging doors and two touchless wired wave sensor switches as exit buttons for automatic doors. This system is designed to secure your door and touchless activate door automatically and manually quickly. A simple yet secure system for areas such as offices, hospitals, elderly homes, banks, commercial locations, and much more.
Touchless Wireless Wave Sensor to Activate the Door
Both inswing and outswing opening door available,you will get both of inswing push arm and outswing pull arm
Easily Program and Debug,All of Parameters can be Adjusted via Handheld Programmer of Automatic Door
Technical Parameter
- Swing application: one-way inswing or outswing open, single leaf and double leaf standard doors
- Voltage: 110-220 VAC +/-10%
- Motor: DC 24V brushless motor
- Power Consumption: 50W
- Opening Time: 3-7 sec. @ 90 degrees
- Hold Open Time: 1-30 sec. Adjustable
- Max. Door Frame Depth:200mm / 7.87\"(the data is only applicable to work with push arm)
- Door Width: Max. 1200mm / 47.2\" Min. 660mm / 26\"
- Max. Opening Angle:120 degrees
- Environment Temperature: -20C to 50C -4F to 122F
- Operation noise: Less than 55db
- Opener size: style=\"box-sizing: border-box; list-style: disc; overflow-wrap: break-word; margin: 0px;\">Gross weight:10kg/ 22LBS
Knowing Details
Wireless Fob Keychain
The remotes that come in this kit are Wireless and not hardwire
The remotes working frequency is 315MHz
You can add up to 15 wireless devices per automatic door opener
Olide-512 Wireless Touchless Wave Sensor
- Power Supply:6V(4pcs AA batteries are required)
- Action Current:42mA(DC12V power supply)
- Sensoring Distance:1.18-11.8inch
- Infrared Working Frequency:38KHz
- Working Distance to Receiver:Less than 1181inch(30m)the open area
Receiver of Handicap Push Button Olide-510FW
- Power Supply:AC/DC 12-30V
- Wireless Receiver:3A 30VDC
- CE Certification,FCC approved
- Static current:30mA
- Buzzing open or close can be adjusted there
- Smart WIFI function built in,workable with Alexa,google assistant and phone APP
