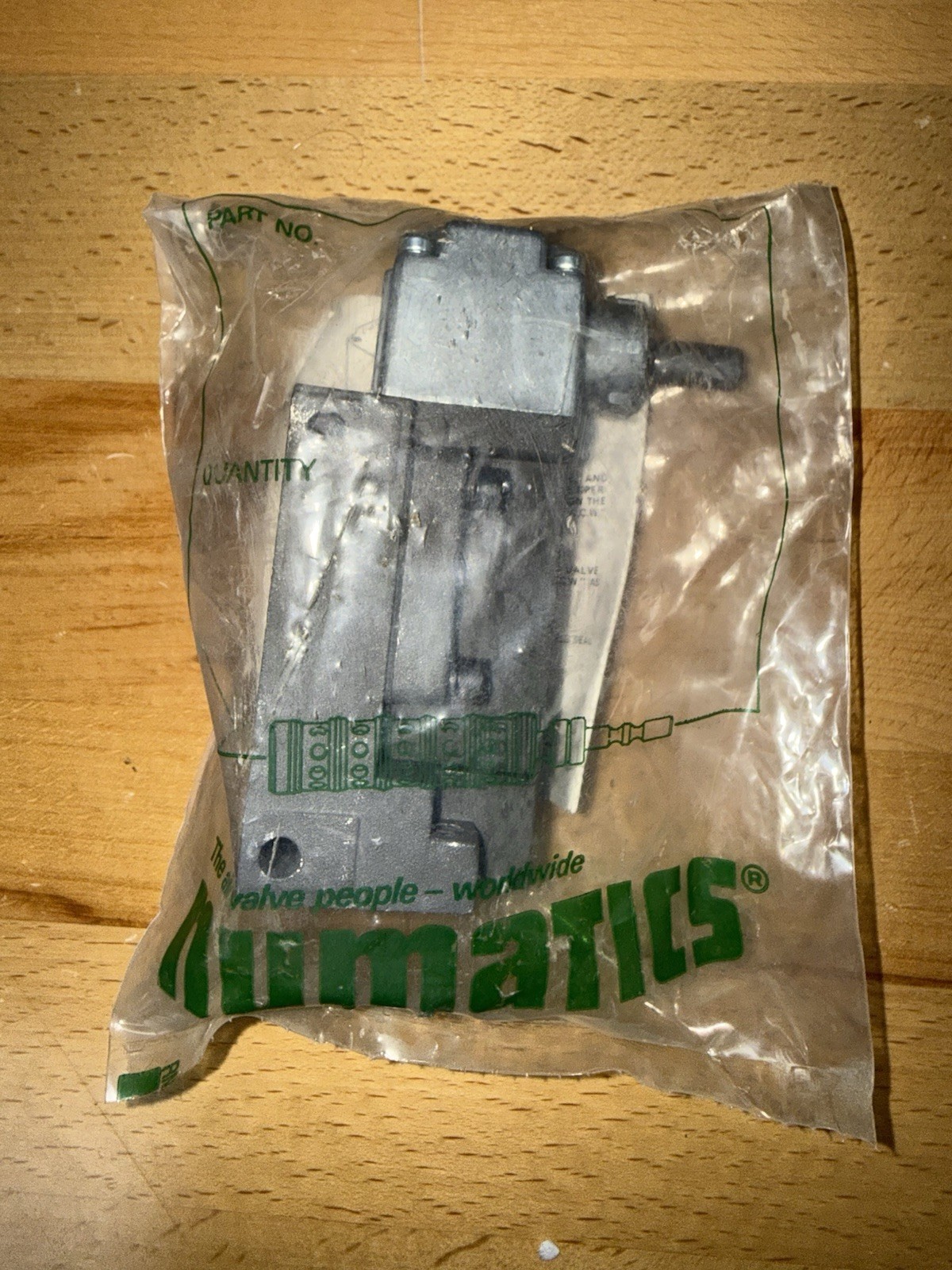

Numatrol LR3-0201 Sentinel Line limit valve by Numatics, Inc. Unopened original factory packaging. Bags show light surface scuffs and minor dust consistent with long-term storage. Valves themselves appear unused and uninstalled. Dates of manufacture: April 1996, September 1995, and May 1996. Item will be selected at random.
- Series: LR "Sentinel" Line, Numatrol II
- Valve type: 3-Way, 2-position, multi-purpose
- Actuation: Rotary right-angle actuator, roller lever
- Configuration: Complete valve on sub-plate, no conduit adapter
- Port size: 1/8" NPTF
- Cv: 0.32
- Max pressure: 150 psig
- Temperature range: 40–120°F
- Sealing: Dirt-proof and splashproof
- Dimensions: 5.84" L x 1.56" W x 1.78" H
- Manufacturer: Numatics, Inc., Highland, Michigan (now Emerson/ASCO Numatics)
**Industrial Pneumatic Limit Sensing**
The LR3-0201 is a mechanical limit valve used in pneumatic logic circuits to sense cylinder or actuator position. The rotary right-angle actuator can be rotated to any of four sides and operates from either or both directions, making it highly adaptable to tight installation geometries.
**Dirt-Proof and Splashproof Design**
Sealed construction allows use in harsh factory environments including wash-down areas, coolant exposure, and dusty industrial settings. Suitable for filtered/lubricated air as well as dry air and vacuum when conditioned with Numatrol SCO series filters.
**Complete Valve on Sub-Plate**
Includes the sub-plate mounting base — a complete, ready-to-install assembly. No additional base required. Compatible with Numatrol air control systems and conventional pneumatic logic circuitry.
NOTE: Item may differ slightly from photo. All units are the same model and condition; manufacturing date codes vary (1995–1996).
