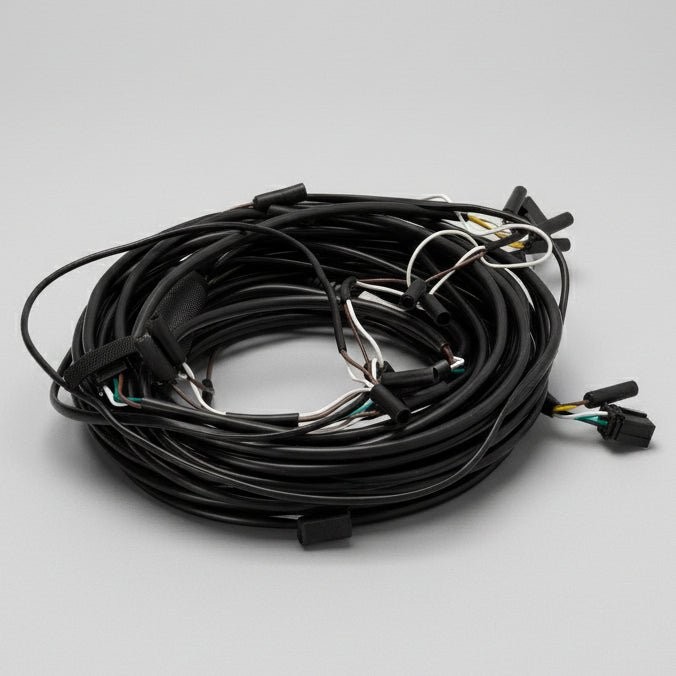

Novalite Premium 4-Way Flat Trailer Wiring Harness – 25 ft – Bullet Connector – 01-8801-B Part Number: 01-8801-B
The Novalite 01-8801-B is a premium, fully sheathed 4-way flat trailer wiring harness built for clean, professional installs. Designed for single-axle trailers up to approximately 14 feet, this 25-foot harness eliminates excessive splicing and delivers dependable lighting performance with pre-terminated bullet connectors.
What’s Included
- One (1) 25-ft 4-Way Flat molded trailer connector harness
- Factory-installed male bullet connectors (Left / Right / Tail circuits)
- Ring-terminal ground lead (white wire) for direct frame connection
- Integrated Y-split for left and right lamp routing
- Mounting clips and tie-downs for secure frame routing
Technical Specifications Specification Detail Connector Type4-Way Flat (Standard Molded Plug) Wire Gauge16-Gauge Copper (Lighting Circuits) Total Length25 Feet Color Code White – Ground
Brown – Tail / Running
Yellow – Left Turn / Brake
Green – Right Turn / Brake TerminationMale Bullet Connectors & Ring Ground Cable JacketBlack Rubberized Multi-Sheath – UV & Abrasion Resistant Operating Voltage9–14V DC (Standard 12V Trailer Systems) Compatibility
- Trailer lights with female bullet connectors
- LED assemblies from Maxxima, Optronics, Peterson, Truck-Lite and similar
- Standard 4-way flat tow vehicle connectors
R&P Knowledge Hub A fully jacketed harness protects all conductors inside a single outer sheath, reducing abrasion damage and exposure to road debris. Bullet connectors allow fast, clean lamp installation and simplified troubleshooting. Always secure wiring to the trailer frame and ensure a solid ground connection for proper lighting function. Typical Lighting Layout
- Left Rear – Stop / Turn / Tail
- Right Rear – Stop / Turn / Tail
- Side Markers – Brown running light circuit
- Center ID Bar – Brown running light circuit (if equipped)
Confirm trailer length and connector type before installation.
