Item Specifics:
New SilverThin JNSM13008XP5Z
Precision Thin Section Bearing
Metric Large Diameter Bearing
Inside Diameter = 130mm
Outside Diameter = 146mm
Bearing Width = 8mm
Precision Class = ABEC5
**Brand New , Still in original box (Sealed)**
Item Description:

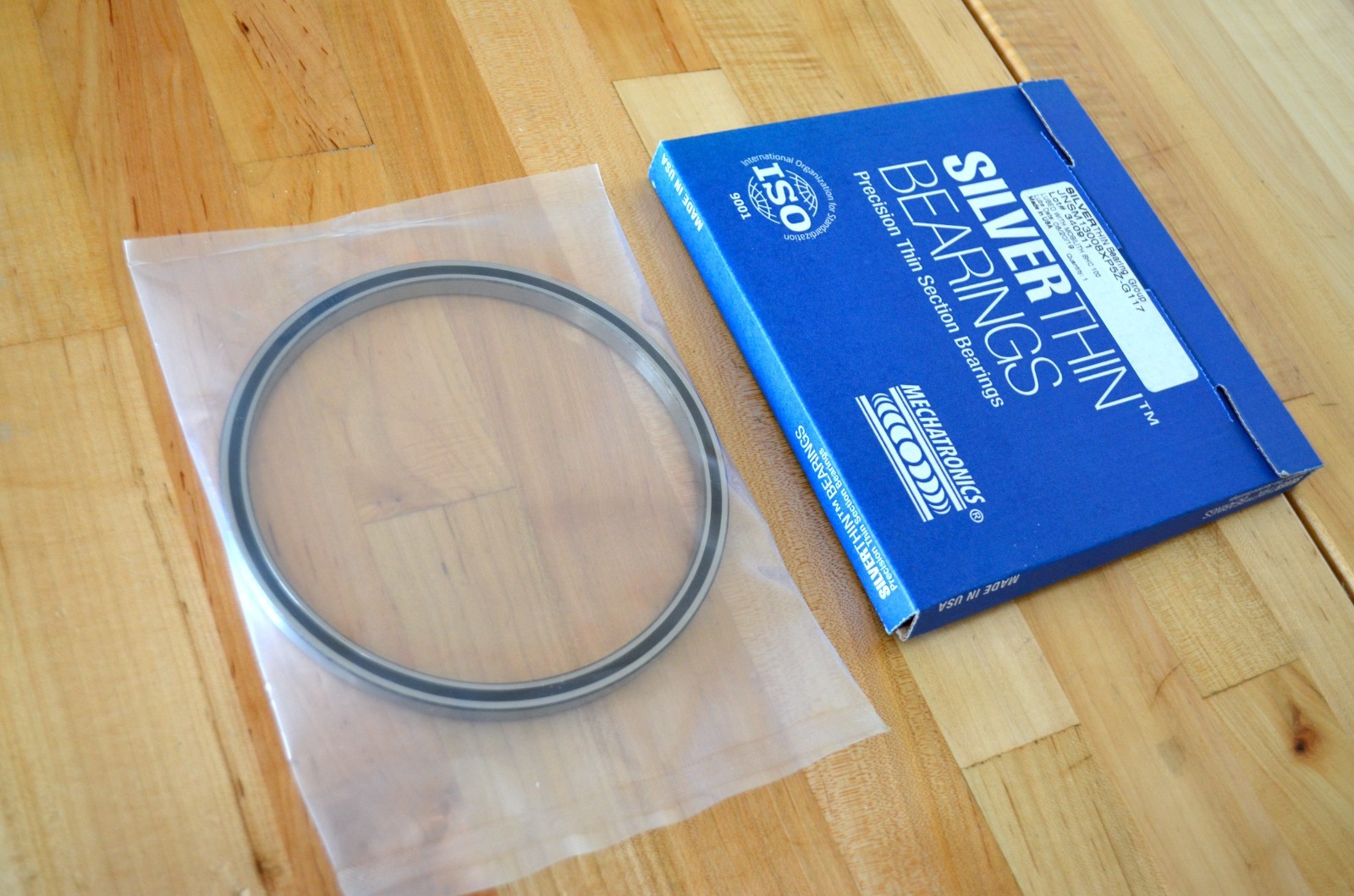

This is a brandnew SilverThinbearing still sealed
intheoriginalplastic and inperfect condition.
It is a model#JNSM13008XP5Z (with seals)
The inside diameter of the bearing is 130mm,
the outside diameter is 146mm, the height
is 8mm, andthe width of the bearing is 8mm
(8 + 130 + 8 = 146 O.D.).
Notes from the Manufacturer:
What is a Thin Section Bearing?
THIN SECTION bearings are a family of bearings designed from a limited number of widths and thicknesses (cross sections),with each cross section manufactured in a wide range of bore diameters. Most radial ball bearings are designed so that as thebore size increases, the width and the thickness of the bearing change proportionately. In the case of thin section bearingsthe cross section remains the same as the bore diameter increases. The thin section bearing family is made up of 9 primarycross section sets ranging from 3/16” to 1”and with bore sizes ranging from 1” to over 40”. The combination of a large borediameter in proportion to the small cross section makes these parts appear “thin” in comparison to standard ball bearings.Thin section bearings are made from 52100 chrome steel and 440C stainless steel. They can also be coated with platingslike thin dense chrome. Some sizes can be configured with seals or shields. Thin section bearings are also made in one ofthree different contact styles; radial contact, angular contact, and four point contact. These options, along with several balland retainer types make for a diverse range of parts even among the limited cross sections of the thin section bearing family.
Thin section bearings help reduce total cost in a system by allowing for design efficiency over standard bearing sizes.Because thin section bearings have cross sections that don’t change as bore sizes increase, there needs to be no changein the space requirements, and little change in the weight of the bearing, even as the diameter of an application increases.Especially in the case of medical equipment, airborne optical and infrared scanning equipment, and robotics, the space andweight requirements of a system are major factors in the overall design and manufacturing cost. In many cases, the price ofa thin section bearing is higher than a standard bearing with a similar bore size, but application and design savings due toreduced space and lower weight decrease the total cost in the application.
