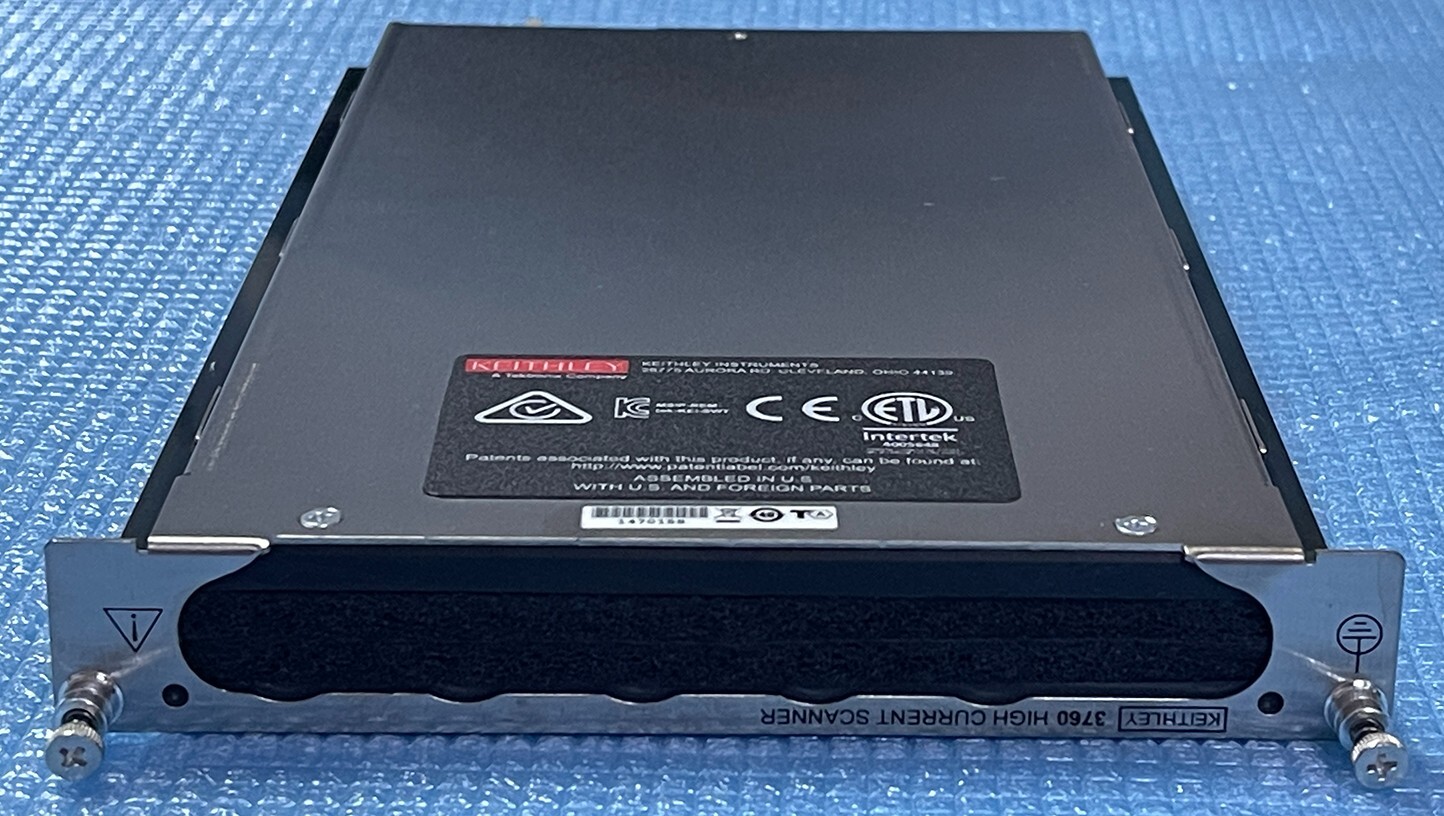

New Keithley 3760 High Current Scanner 10-CHANNEL HIGH CURRENT MULTIPLEXER Card
Channels Per Card: 10Contact Configuration: 2-pole Form C with common guardConnector Type: Screw terminal, #16AWG maximum wire sizeRelay Drive Current: 80 mA per relay typicalMaximum Switching Levels: 300 V, 5 A, 100 VA (resistive load only)Maximum Applied Voltage: 500 VContact Life: >107 closures (cold switching), >105 closures (at maximum signal level)Contact Resistance: <0.15 Ω to rated lifeContact Potential: 1 mV max.Warm up: One hour to rated accuraciesActuation Time: <15 ms, exclusive of mainframeRelay type: 2 Form C nonlatching electromechanicalRelay drive current: 80 mA per relay (typical)Relay drive scheme: DirectChannel Isolation: >109 Ω, <50 pFInput Isolation: >107 Ω, <150 pFCommon Mode Voltage: 500 V peakEMC: Conforms to all European Union directivesOperating Environment: 0° to 50°C, up to 35°C at 70% relative humidityStorage Environment: –25°C to 65°CAltitude: 0 to 2000 m (0 to 6562 feet) above sea levelPollution degree: 2Please check out all the pictures for more information about the item.
30 Days Warranty
Condition:New without retail box, this sale is for the item as seen in the picture only, nothing else include.
