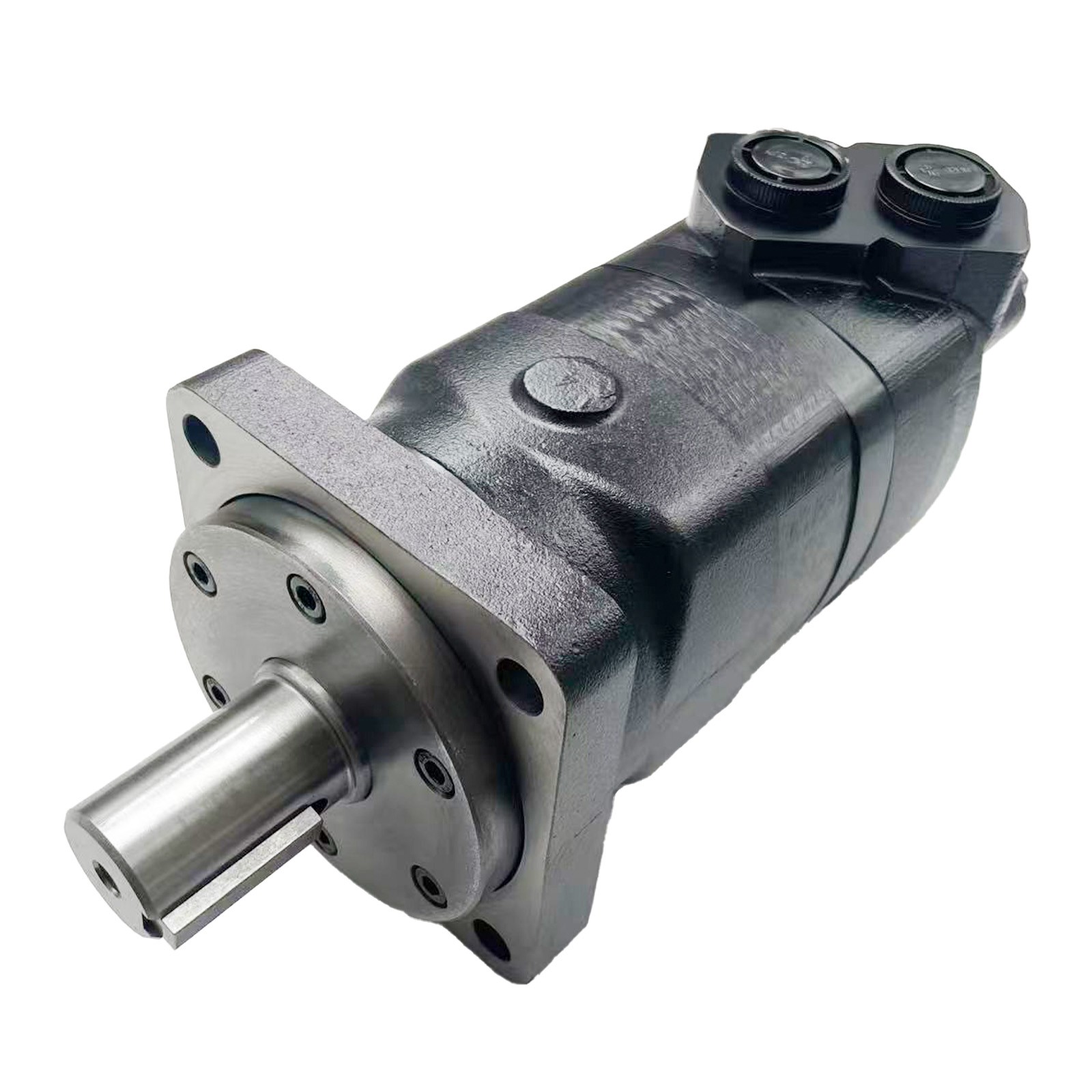

New 23.87 cu BMK6-400-CC-G2-SF5 Hydraulic Motor 9-8665-400:
$599.00
23.87 cu in HYD MOTORBrand new, DYNAMIC BMK6 series hydraulic motor. Heavy duty with high flow capacity.ROLORTORC power element. Tapered roller bearings on output shaft for high axial and radial load capacity. Interchangeable with CHARLYNN 6000 motors.SPECIFICATIONS
- BrandDynamic
- Model61763
- Build NumberBMK6-400-CC-G2-SF5
- Disp. 23.87 cu.in./rev.
- Pressure
2900 PSI (Cont.)
4350 PSI (Int.) - Torque
10266 in-lb. (Cont.)
14382 in-lb. (Int.) - Speed
382 RPM (Cont.)
570 RPM (Int.) - Flow
39.6 GPM (Cont.)
59.4 GPM (Int.) - Rotation Reversible
- Mount 4 bolt SAE C
6.375 bolt circle, 5\" pilot dia. - Shaft 1-1/2\" dia. x 3.01\" shaft with 3/8\" key tapped 3/8-16
- Ports SAE 16
- Case DrainSAE 4
- Size 11.3\" x 5.75\" x 5.75\"
- Shpg. 65 lbs.
