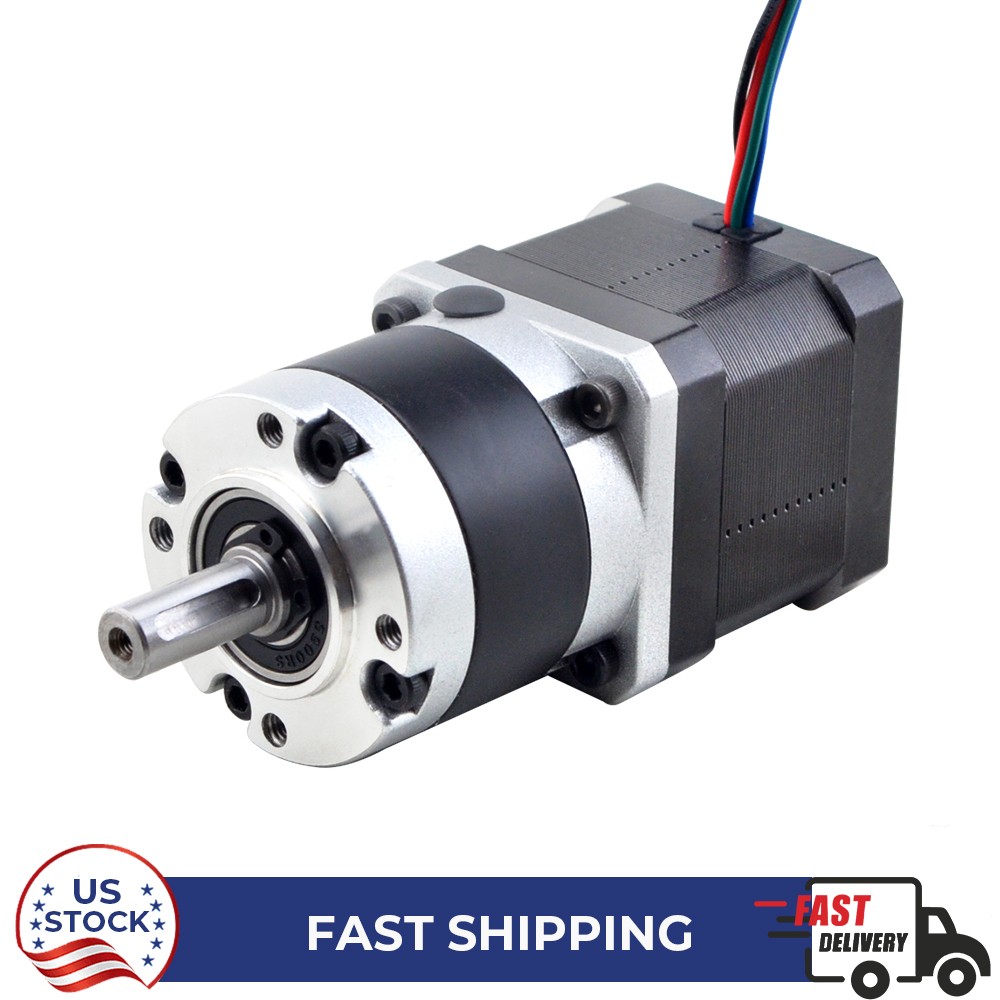

Nema 17 Geared Stepper Motor w/Ratio 5:1 Planetary Gearbox L=40mm 1.58A Φ8mm:
$41.46

This Nema 17 size stepper motor is equipped with MG series high precision gearbox. The gear ratio is 5:1 and the Max. backlash is 30 arc minutes. It's an excellent choice for applications that require good accuracy but low cost.

As MG series gearbox built-in shaft coupling, so you can change the motor or gearbox easily.

Electrical Specification

Manufacturer Part Number: 17HS15-1584S-MG5
Motor Type: Bipolar Stepper
Holding Torque without Gearbox: 36Ncm(51.0oz.in)
Rated Current/phase: 1.58A
Phase Resistance: 1.65ohms
Inductance: 3.2mH±20%(1KHz)

Gearbox Specifications

Gearbox Type: MG Planetary
Gear Ratio: 5:1
Efficiency: 90%
Backlash at Torque: 9Nm(79.66lb-in)
Noise: <=55dB
Waterproof Rating: IP54
Lifetime: 20000hours

Physical Specification

Frame Size: 42 x 42mm
Motor Length: 39mm
Gearbox Length: 40mm
Output Shaft Type: Key way
Output Shaft Diameter: Φ8mm
Output Shaft Length: suitable bracket is ST-M12.
