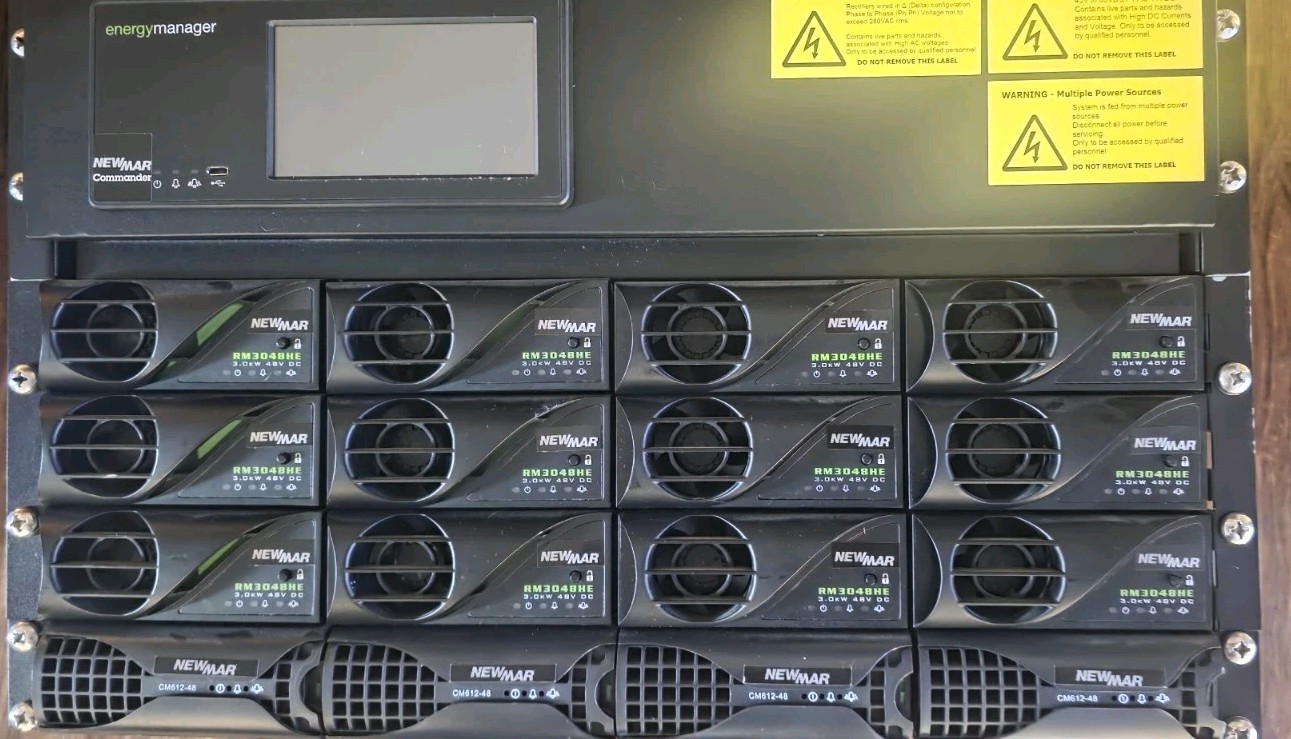

COMMANDER II -48V DC Power System
6U Rack mount shelf w/ power distribution
Up to 12 RM3048HE 48V Rectifiers
COMMANDER II+ -48V DC Power System
7U Rack mount shelf w/ power distribution
Up to 8 RM3048HE 48V Rectifiers
Up to 8 CM12-40 or CM24-40 (choose one voltage only, no mixing)
Complete system design and integration by Newmar to your application parameters: Rectifier configuration, installation of distribution circuit breakers, and configuration of alarms and monitors. Assembly in a relay rack with batteries and wiring also available.AC Input
Nominal: 230V
Voltage Range: 85-300 VAC (reduced power below 190V)
Wiring Options: Three two wire Single Phase 208-240VAC
Frequency Range: 45-65 Hz
Power Factor: >0.99
Efficiency: >96.3% (peak)
DC Output
Output Ratings: Constant power output from 43V to 60V
Nominal Voltage: 48V
Rated Voltage: 54V (Factory default)
Power
Rated maximum System Output Power: 36,000W @ -54.0V (667 Amps), 720 A @ 48V
Polarity: Positive Earth (or specify)
Individual Rectifier Power:
