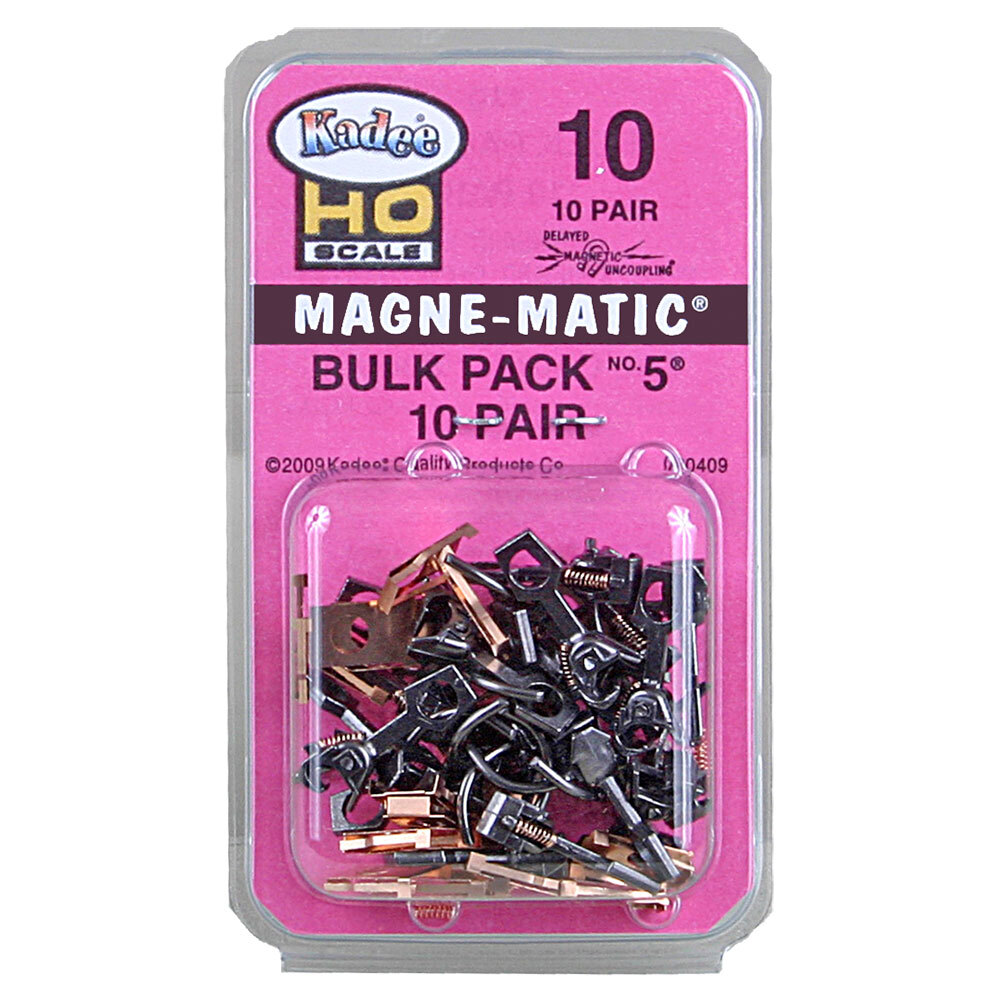

NEW Kadee Bulk Pack 10 pair NO.5 Metal Couplers : HO ScaleDescriptionPackage Includes:(10) Pair NO.5 Metal Couplers - Medium Centerset Shank
(10) Pair #634 Centering Spring NO.5 Style
Extra #622 Knuckle SpringsThis industry leading coupler features an all metal standard coupler, and #634 standard centering spring. The NO.5 Magne-Matic Metal Coupler may be mounted with the #213, #232, #234, #242 Gearboxes (not included) or with other manufacturers cast-on coupler pockets.The 148 Whisker Coupler is equivalent to the NO.5 Metal Coupler.It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage. Use the provided insulated gearbox or insulated #28 coupler.Refer to our helpful Coupler Conversion Charts to determine the appropriate coupler to use on your model.NO.5 Standard Coupler Instructions10 pair per package
without Draft GearboxesBulk Packs of #5 (NO.5) Metal Couplers without gearboxesNO.5® Metal Coupler Features:
Material - Metal
Shank Length - Medium (9/32\") (center hole to back of coupler head)
Coupler Offset - Centerset
Knuckle Spring - #622
Centering System - Standard Shank
Centering Spring - #634 Centering Spring NO.5® Style
Head - Standard Head
Works In Place of - #58, #28, #118, #119, #148, #158, most medium centerset \"clone\" couplers
Works With - #213, #232, #234, #242, most manufacturer cast-on draft gearboxes
#232 Plastic Draft Gearboxes & Lids (Not Included)
Features:
Material - Insulated Plastic
Dimensions - 29/64\"L x 19/64\"W x 7/64\"H
Works With - NO.5®, #58, 20-Series and all Whisker® CouplersMounting Specifications:
Mounting Height - 29/64\"
Centerline - 25/64\"
Trip Pin Height - 1/32\"
Center Hole - 2-56 Insulated Screws are the most commonly used. (Screw length will vary)
Side Holes - 0-48 Self-Tapping or 0-80 Machine Screws. (Screw length will vary)
ShippingMost orders are shipped the same day (if you make our cut off time). Otherwise, all orders are shipped within 24 hours of receiving payment.PaymentPayment is required within 7 days from the date you commit to purchase an item. After 7 days, an unpaid item case will be opened. Thank You!ReturnsYou may return an item for a refund within 14 days from the day it was delivered. The buyer pays return shipping and must return the item in the same condition it was received.Details About This ItemBrand New In Factory PackagingManufacturer: KadeeOur Price:
$28.49 & FREE SHIPPING
In Stock And Ready to ShipBacked by Full Manufacturer WarrantyWhy Buy From Us?Free Shipping on Every Item! Who doesn\'t like free shipping?All orders are shipped the same or next business day!Our customer service is friendly and here to help you!We are an Authorized Dealer so you can be sure you are receiving a genuine product.© Copyright 2017 Nitro RC Hobbies. Rights reserved.store Design for
