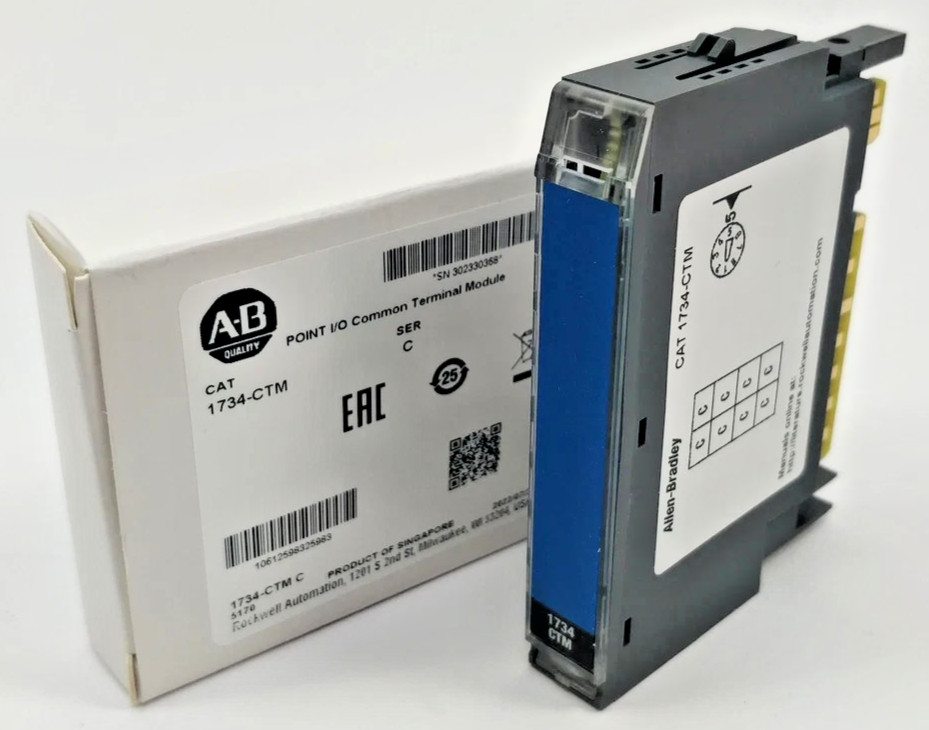

NEW Allen-Bradley 1734-CTM Common Terminal Module Point I/O 1734CTM Factory Seal
These are currently factory sealed in an unopened new box containing 10 modules in each box. If you purchase in multiples of 10 we will attempt to keep the original box of 10 un-opened, i case you want to re-sell it. These are in perfect condition.
The Allen-Bradley 1734-CTM Series C is a POINT I/O Common Terminal Module. It provides 8 extra common (0V VDC or Neutral VAC) termination points within a POINT I/O chassis assembly. This expansion module allows users to terminate return wires from high-density 8-channel modules or field devices directly onto the I/O bank, eliminating the need for external, jumpered terminal blocks.Technical Specifications
- Module Type: POINT I/O Common Terminal Module
- Terminal Density: 8 common connection points
- Field Power Voltage: 12V to 240V AC or 1V to 28.8V DC
- Current Rating: 4 Amps maximum per module
- Isolation Voltage: 250 Volts continuous
- Mounting style: Standard DIN Rail
- Enclosure Type: Open-style
Core Purpose & Use Case
- Cleans Up Wiring: Provides a centralized location to land the 0V/Neutral return lines from 3-wire sensors or actuator loads.
- Integrates with High-Density Modules: Supplements 8-point discrete I/O modules, which lack sufficient onboard common terminals for every field connection.
- Bus Extension: Internally routes directly to the common side ("C" conductor) of the POINT I/O field power bus.
If you are currently troubleshooting or installing a POINT I/O system, let me know if you need help with wiring diagrams, checking compatible terminal bases (like the 1734-TB), or selecting the voltage equivalent module (1734-VTM)
The NEW Allen-Bradley 1734-CTM Common Terminal Module is a high-quality industrial automation component designed by Allen-Bradley. This module, with the model number 1734-CTM, is made in Singapore and is a crucial part of PLC input and output systems. With a factory seal, this product ensures reliable performance and compatibility with other Allen-Bradley modules, making it a dependable choice for various industrial automation and motion control applications.
