New High Performance 550W servo motor and Controller/Driver for Unimat lathe.

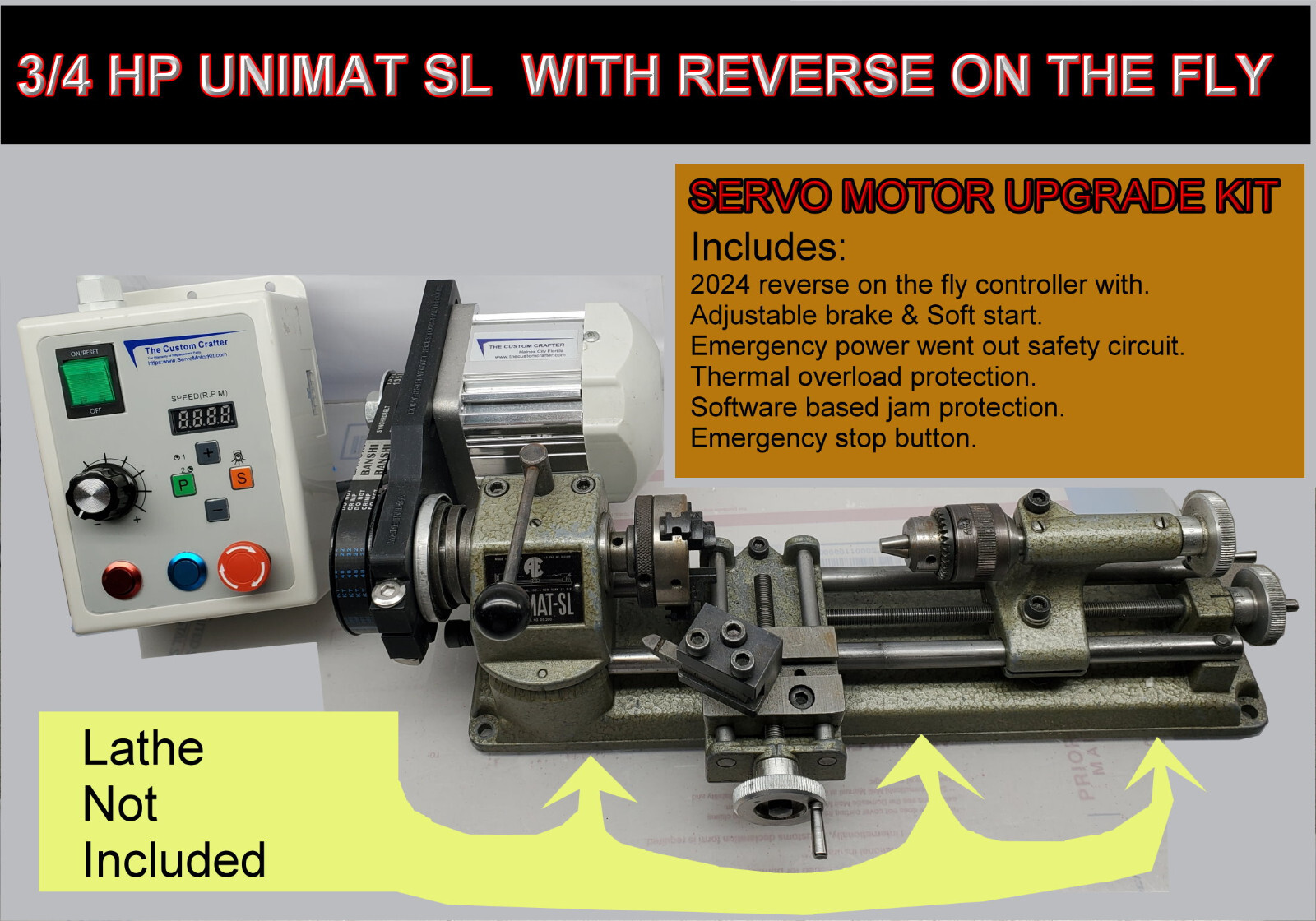

Variable Speed Spindle Drive Motor Upgrade with reverse on the fly.See third image for what is included in the box.
Only what you see in the 3rd image without the lathe is what is included. All other images are for information only.
The lathe itself is not included.Fits Emco Unimat SL Lathe Model DB 200See images, contact us before you order.
We will cancel and refund orders from those who leave
more than 10% negative feed back for others.UP to 3 days lead time.
This is number 10. These are built when ordered. There will be install marks as each one is fully tested on
the demo lathe before it is boxed and shipped.Motor includes:
- 550W servo motor.
4 NM torque.
200 ~ 4,500 RPM\'s. - Complete stand alone driver/controller.
Overload protection built in.
Software based jam protection.
Rotary speed control switch built in.
Reverse on the fly.
Power went out safety circuit.
Programmable with:
Adjustable soft start.
Adjustable soft to rapid braking.
Maintains set RPM regardless of load changes while cutting.
L050 drive 1.67 to 1 includes:
- 12L050 twelve tooth 1/2\" wide synchronous pulley.
15 mm bore. 5 mm key comes installed on motor
(New highly accurate anodized aluminum in shinny black).
- 20L050 twenty tooth 1/2\" wide synchronous pulley.
bolts on spindle same as original factory pulley.
(New highly accurate anodized aluminum in shiny black).
Motor Mount Bracket includes:
- This part is 3D printed in the U.S.A. currently in PLA.
- The four button head bolts used to attach the servo motor are included.
- Stainless clamp allen head and sq rpm range is: 200 to 4,500 RPM\'s
At 1.67 to 1 the resulting spindle rpm range is: -------------------- 119 to 2,694 RPM\'s
Runs on 120V home power supply outlets.Limited 90day parts warranty:See details, what\'s covered and for how long etc below. Shipping both ways for all parts returned for warranty is the buyers responsibility. Parts returned will be inspected for unique identification mark and or abuse. If found to be abuse or missing theidentitymark, no warranty exchange part will be provided and buyer will be required to pay shipping to get their parts back. Warranty exchange parts may or may not be new but insteadrefurbishedor demos that I have from previous builds. Warrantystarts on the day ourrecords show the system as paid and not the date the item is actuallyreceived.
Returns are not done through .
- Buyer has 14 days to request a return authorization.
- Seller usually responds in under 24 hours + buyer will have sellers text only phone number.
- Buyer has 10 days ship time to have the return at the sellers address. 10 day period starts when seller issues the return authorization. That means return via priority mail as lost items will not be refunded.
- Seller will inspect returned system and if it passes, seller will issue a refund of the purchase price less shipping. (buyer pays shipping both ways)
- Main components have a unique warranty tamper proof seal and internal water soluble identification mark. No refund will be issued if it is missing or removed.
- All original parts and packaging must be returned to get a refund.
- No return authorizationswill be issuedafter the 14 day period.
After Warranty Customer Support:
There is nothing worse then having an expensive item break 2 days after the warrantyexpires. As long as there is no abuse, I will offer a solution. This often includes parts at cost and free installation. That is as long as you communicateand pay shipping both ways. Yes, we keep control boards in stock for this reason. We also keep motors, belts and every part used to build these in stock. Just contact us and we will have you up and running within days, not 6 months waiting for parts from China.Copyright:
Bracketdesign, final object, digital files are Copyright protected and also protectedby intellectual property laws.
