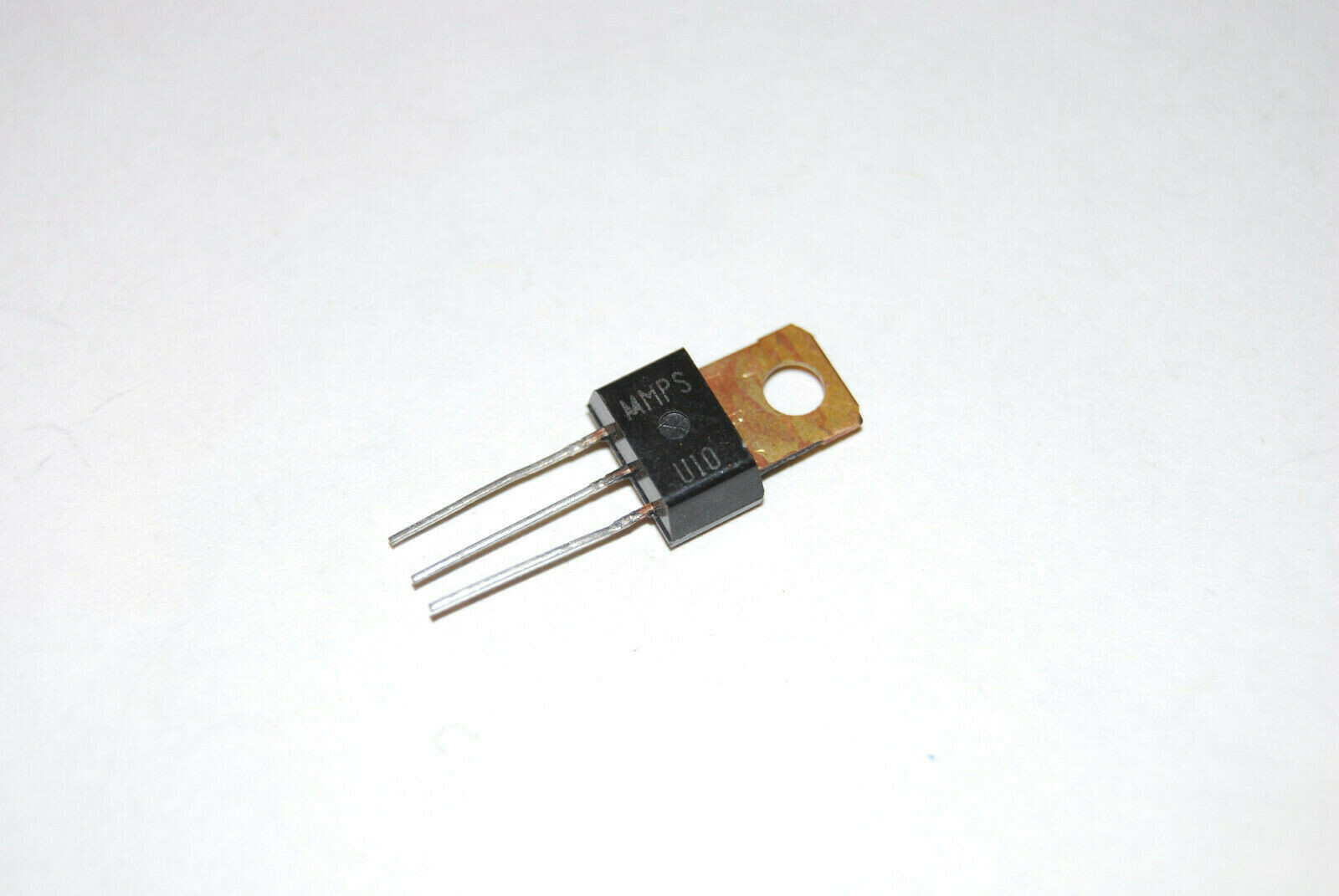

MPSU10 NPN Transistor Motorola NOSQty(1)
Please find the MPSU60 PNP mates to these in my storeCondition: NOS
Sold as is no returns
Happy to answer any questions
MAXIMUM RATINGS: (TA=25°C unless otherwise noted)
SYMBOL UNITS
Collector-Base Voltage VCBO 300 V
Collector-Emitter Voltage VCEO 300 V
Emitter-Base Voltage VEBO 6.0 V
Continuous Collector Current IC 0.5 A
Power Dissipation PD 1.75 W
Power Dissipation (TC=25°C) PD 10 W
Operating and Storage Junction Temperature TJ, Tstg -65 to +150 °C
Thermal Resistance ΘJA 70 °C/W
Thermal Resistance ΘJC 12.5 °C/W
ELECTRICAL CHARACTERISTICS: (TA=25°C unless otherwise noted)
SYMBOL TEST CONDITIONS MIN MAX UNITS
ICBO VCB=200V 200 nA
IEBO VEB=6.0V 100 nA
BVCBO lC=100μA 300 V
BVCEO lC=1.0mA 300 V
BVEBO lE=100μA 6.0 V
VCE(SAT) lC=20mA, IB=2.0mA 1.5 V
VBE(SAT) lC=20mA, IB=2.0mA 0.8 V
hFE VCE=10V, IC=1.0mA 25
hFE VCE=10V, IC=10mA 40
hFE VCE=10V, lC=30mA 40
fT VCE=20V, lC=10mA, f=100MHz 45 MHz
Cob VCB=20V, IE=0, f=1.0MHz 3.0 pF
