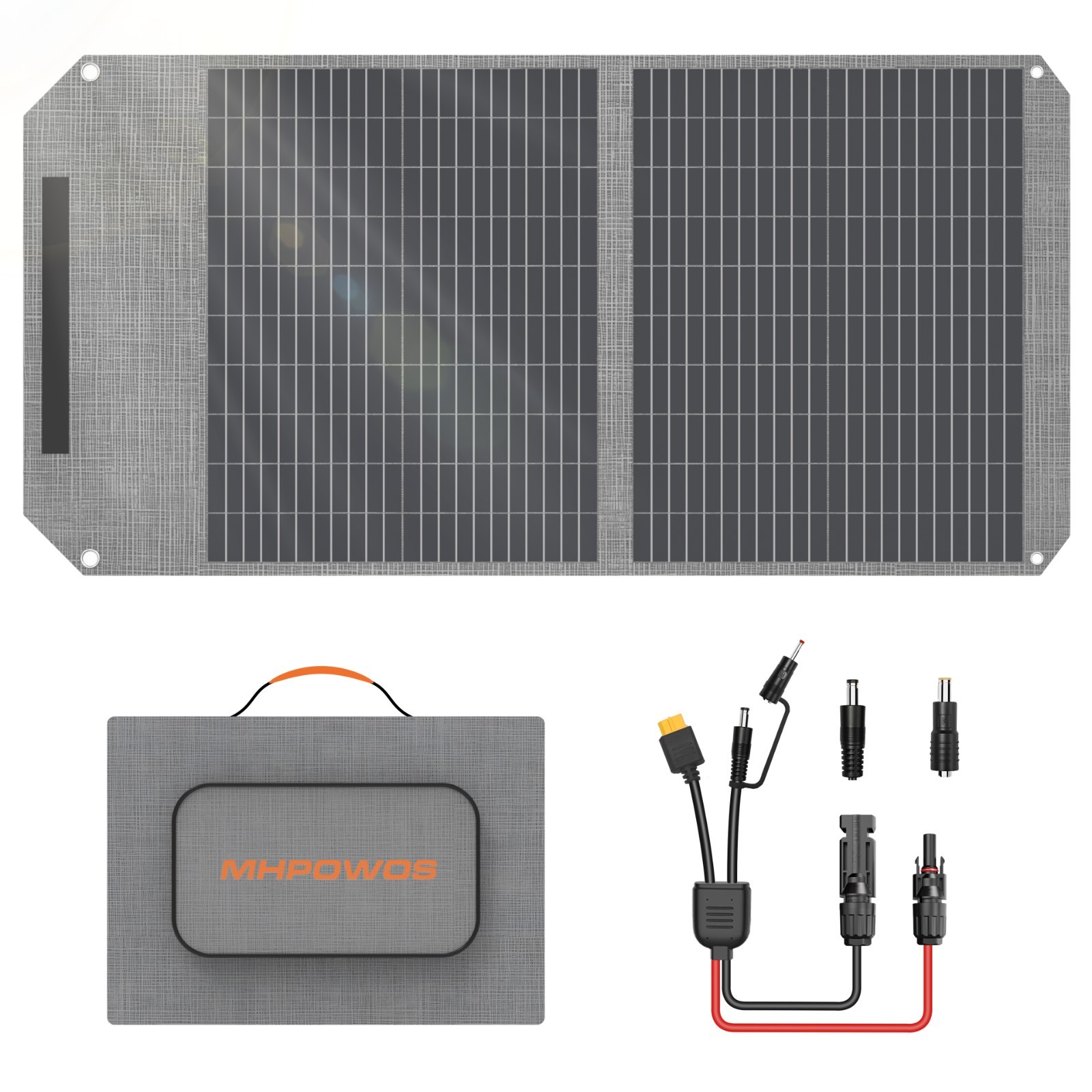

-----The following detailed images provide an introduction to the 400W solar panel.----- Specification Power100W / 200W / 400W Conversion Rate23.5% Cell TypeMonocrystalline Silicon Max Output Voltage100W: 20V
200W: 20V
400W: 30V Max Output Current100W: 4A
200W: 8A
400W: 12A Open Circuit Voltage100W: 22V
200W: 22V
400W: 33V Short Circuit Current100W: 4.4A
200W: 8.8A
400W: 13.2A WaterproofIP65 Dimension (Folded)100W: 19.2 x 15.9 x 0.59 inch
200W: 19.2 x 15.9 x 0.98 inch
400W: 19.8 x 16.9 x 2.3 inch Dimension (Unfolded)100W: 38.7 x 19.2 x 0.1 inch
200W: 62.6 x 19.2 x 0.1 inch
400W: 59 x 50 x 0.1 inch Weight100W: 3.6 lb (1.65 kg)
200W: 6.1 lb (2.8 kg)
400W: 13.3 lb (6.05 kg) CertificationsFCC, CE, ROHS Charging Cable Length4.5 ft Warranty18 Months ConnectorsMC-4 - XT60/ DC8020/ DC7909/ DC5521/ DC35135
