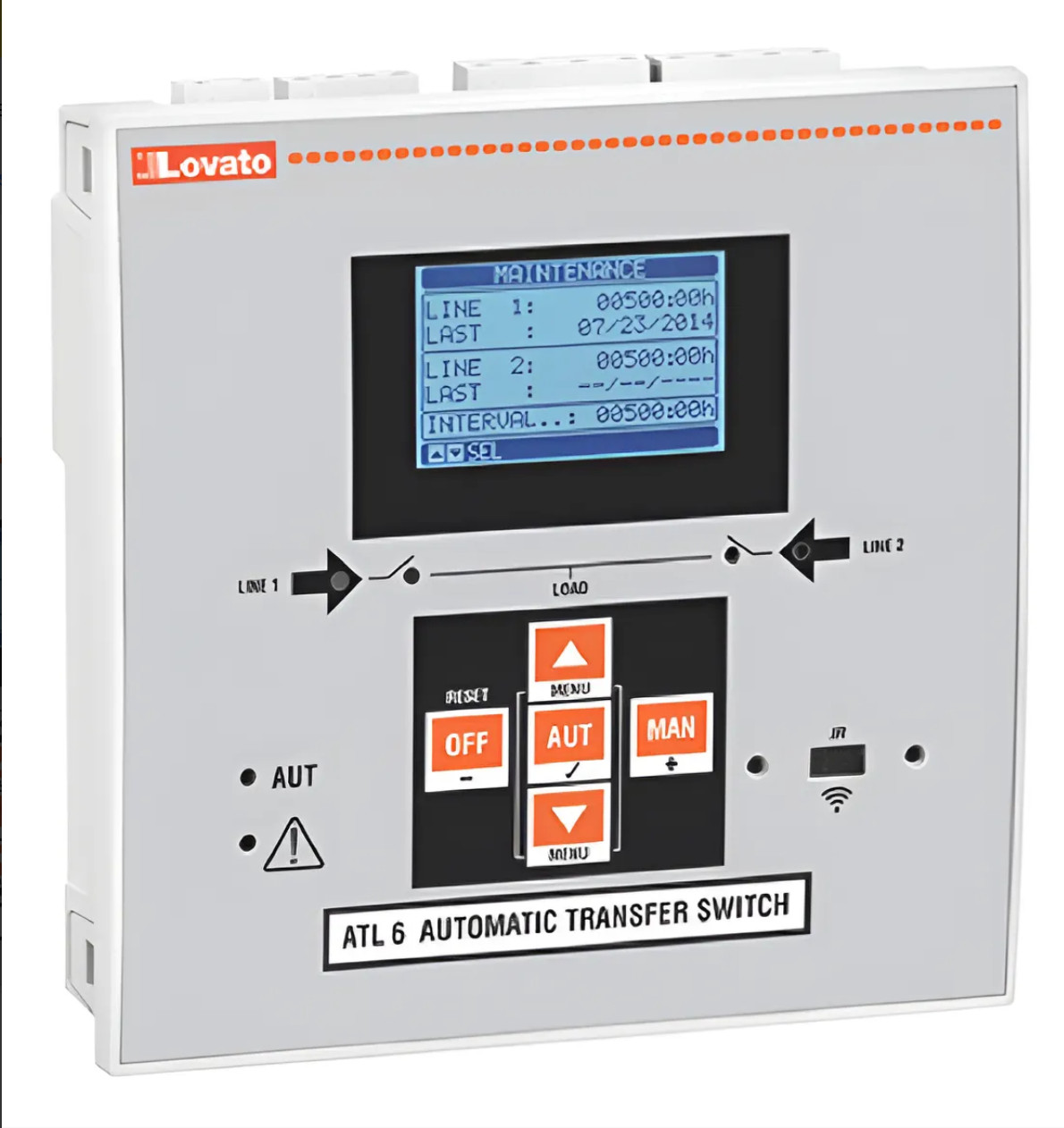

Full SEO Optimized DescriptionLovato Electric ATL600
Automatic Transfer Switch Controller with Optical Port
For 2 Power Sources | 144x144mm | 110–240VAC Supply
The Lovato ATL600 is a professional Automatic Transfer Switch (ATS) Controller designed to manage two independent power sources with advanced monitoring and high-accuracy voltage measurement.
Built for industrial, commercial, and critical power applications, the ATL600 features a backlit graphical LCD display and front optical communication ports for USB or Wi-Fi configuration.
⚙️ Key Technical SpecificationsGeneral
• Number of controlled power sources: 2
• Backlit LCD graphic display (128x80 pixels)
• 5 selectable languages
• No expandability
Power Supply
• Rated supply voltage: 110–240 VAC
• Operating range: 90–264 VAC
• Rated frequency: 50/60 Hz
• Operating frequency: 45–66 Hz
• Power consumption (max): 9.5 VA
• Micro-break immunity:
110VAC ≤ 50 ms
220VAC ≤ 250 ms
Voltage Measurement Inputs
• Maximum rated voltage:
100–480 VAC L-L (277 VAC L-N)
• Measurement range:
50–576 VAC L-L (333 VAC L-N)
• Measurement method: True RMS (TRMS)
• Measurement accuracy: ±0.25% f.s. ±1 digit
• Input impedance:
Phase-phase >1.0 MΩ
Phase-neutral >0.5 MΩ
• Wiring modes:
Digital Inputs
• 6 digital inputs
• Negative logic type
• Digital current input: <8 mA
• Low input signal: ≤2.2 VDC
• High input signal: ≥3.4 VDC
• Signal delay: ≥50 ms
Relay Outputs
• 7 relay outputs
• Contact configuration:
6 x NO-SPST + 1 x C/O-SPDT
• Electrical life: 100,000 cycles
• Mechanical life: 10,000,000 cycles
Communication Interface
• Front optical USB port (requires optional CX01 dongle)
• Front optical Wi-Fi port (requires optional CX02 key)
Functions
• Programmable source type
• User alarms
• Adjustable limits
• Event logging (100 events memory)
Environmental Conditions
• Operating temperature: -30°C to +70°C
• Storage temperature: -30°C to +80°C
• Relative humidity: <80%
• Pollution degree: 2
• Overvoltage category: III
Mechanical Data
• Flush mount installation
• Panel cut-out: 138 x 138 mm
• Overall dimensions: 144 x 144 x 52.2 mm
• Weight: 600 g
• Protection rating:
Certifications
• UL508
• cULus
• CSA C22.2 No.14
• IEC/EN 60947-1
• IEC/EN 60947-6-1
• IEC/EN 61000-6-2 / 6-3
• EAC
• RCM
