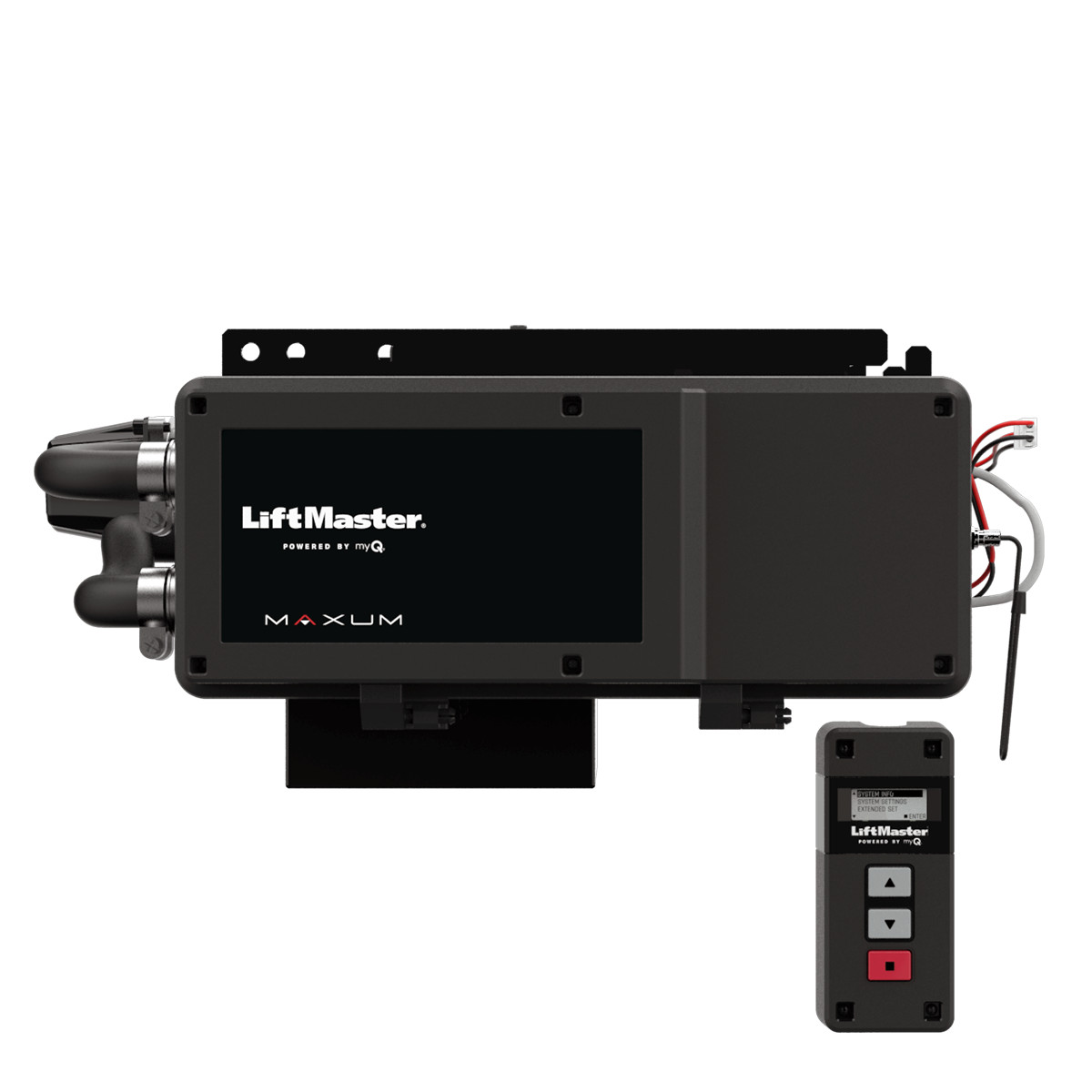

LiftMaster TDC Maxum Trolley DC Commercial Garage Door Operator(MOTOR HEAD BOX Only)
Includes mounting hardware, safety sensors, and wall station. Rail / Chain sold separately.120V/240V 1PH/3PHSTANDARD DUTYSTANDARD CPS-U PHOTO EYES
QUICK OVERVIEW
- Includes: TDC operator head only, safety sensors, installation hardware and instructions.RAIL ASSEMBLY NOT INCLUDED, NEW CHAIN MAY NEED TO BE PURCHASED AS CHAINS FOR THIS MODEL ARE 6\" LONGER THAN PREVIOUS MODELS.
- Smooth Start/Stop Operation -Extends the life of the operator and door hardware.
- Faster Speed - Average of 12” per second opening on sectional doors.
- Battery Backup (optional) - Provides seamless operation by providing standby power when the power is down.
- Advanced Diagnostics and Troubleshooting - No more flashing LEDs. Receive real-time alerts and relevant information at your fingertips.
LiftMaster® is pioneering MAXUM, the next generationof innovation for commercial door automation.This all-new commercial door operator is astate-of-the-art platform that introduces next-levelversatility in a sleek, purpose-built design that’s easierto install and service. With unrivaled performance andintelligence, the new line-up will help today’s commercialfacilities take the next step toward a smarter future.Popular FeaturesSmooth Start/Stop Operation
Extends the life of the operator and door hardware.Motor
Built with a high efficiency motor and gearbox.
Provides an adequate amount of power needed
to move your sectional or rollingdoor installations.Faster Speed
Average of 12” per second opening on sectional doors.Trolley Operator Side-Mounted Control Box
Install and open at eye level. Placement of
control box can be moved easily by removal of
bolts and moving to the opposite side in case of
installation obstruction.Floor Level Wall Controller
4-line LCD display gives you access to more
information at all times. Bringing programming,
troubleshooting and Diagnostics down to the floor
level will save you time and money.Control Board
Designed to have everything at your fingertips.
The new push and play terminals are designed
with you in mind. Just press down and secure
your wires, no tools necessary. Color coded
terminals for easy identification of all your
wiring needs.Battery Backup Capable
Provides seamless operation by providing standby
power when the power is down.3 Monitored Entrapment Protection Inputs
Protect up to 3 entrapment protection points
with every installation.Advanced Diagnostics and Troubleshooting
No more flashing LEDs. Receive real-time alerts and
relevant information at your fingertips.UL® Listed
LiftMaster Commercial Door Operators are
listed to ANSI/CAN/UL325 Standard for USA/
Canada and are certified to NOM/IFETEL
Standards for Mexico.Wi-Fi®
Connect to myQ® Facility via Wi-Fi for visibility into
what is happening at your door and control it from
your web browser. No need for additional hubs or
accessories. Know what accessories activate the door
(remote, keypad, etc).Connect and stay on top with myQ Facility.Enhanced Features:
• Door Monitor and Control
• Enhanced Diagnostics and Error Codes
• Cycle Counts (Operator Absolute & Service)
• Simple device provisioning process, stable connection
to the cloud
• Timely sensing throughout door travel
• Cloud Access Control
• Transmitter Management
-Unlock 1,000 learned transmitter capabilities to track
specific people tied to those transmitters
myQ Facility is a cloud-based solution that keeps you up to
date and in control of all of your facility’s access points. This
allows you to work smarter, improve efficiencies and reduce
expenses.*
*When linked with an access control, Powered by myQ, cellular data or Wi-Fi connection required.
Test equipment regularly and follow safety instructionsFeaturesMechanics
- 24VDC Motor Drive
- 65:1 Gearbox with #50 Chain
- Electromechanical Brake for operatorsthat support 700 lbs. and 1,200 lb doors, 2,200 lb operators brake is standard.
- Removable Front Cover
- Captive E-Box screws: remain in place whenopening and removing cover
Dimensions
Operator
- 700 lbs. / 9.772” W x 19.1” H x 12.1” D
- 1200 lbs. / 9.772\" W x 19.5\" H x 12.1\" D
Floor Level Wall Controller
- 3.586” W x 8.166” H x 1.732” D
Power
120Vac 1 PH/240Vac 1/3PH; 480Vac 3PH; 208Vac
3PH (via transformer); 600Vac 3PH (via transformer)Warranty
2 years commercialIndustrial-Grade Design
- Plastic E-Box: rigidity and flexibility with design
- Integrated Hinge Snap Features
- Durable metal chassis frame with new installation
Carton Contents
- Operator
- CPS-U
- DCWALLCTL
- Mounting Hardware
- Antenna
Additional Features
- Faster speed: 12 inches on average for sectionaldoors
- Security+ 2.0 on Board Radio Receiver: up to 90remote controls
- Connect to Wi-Fi for over the air updates
- Transmitter Management - Set up to 1000 remotesthrough myQ Facility
Temperature
Without heater-4°F (-20°C) – 140°F (60°C)
With heater (HTR)-40°F (-40°C) – 140°F (60°C)
Business Partners
For Sales|[phone removed by ]
For Technical Support|[phone removed by ]
To Learn More|LiftMaster.com
SpecificationsWarrantyRated LoadMax Door Weight - 750 lbs to 2,200 lbsOperator Warranty2 yearsVoltage120V/240V (1PH/3PH), 480V (3PH), 208V & 600V (3PH) available with transformer accessoryAccessory Warranty1 yearOutdoor ratingFor indoor use onlyMotor Warranty2 yearsDrive TypeTrolleyParts Warranty1 yearMotor Power24VDCAC/DCDCBattery BackupCapable - 7Ah battery backup kit (not included)Max Door Height40 ft. max. Sectional and rolling steel doors up to 2,200 lbsCode Type CompatibilitySecurity+ 2.0ConnectivityConnect to myQ Faclity via Wi-FiDisplay Type4-line LDC Display (floor level wall controller)Dimensions9.772\" W x 19.1\" H x 12.1\" DOperating TemperatureWithout heater: -4F(-20C) - 140F(60C). With heater: -40F(-40C) - 140F (60C)myQ CompatibilitySetup available for either myQ or myQ facilityOperator Duty Rating
Standard - up to 20 cycles per hour and 90 cycles per day
Extended - up to 30 cycles per hour and 150 cycles per day
UL Usage ClassificationLiftMaster Commercial Door Operators are listed to ANSI/CAN/UL325 Standard for USA/Canada and are certified to NOM/IFETEL standards for MexicoVariable SpeedFaster speed - 12\" on average for sectional doorsmyQ Diagnostics EnabledYes
