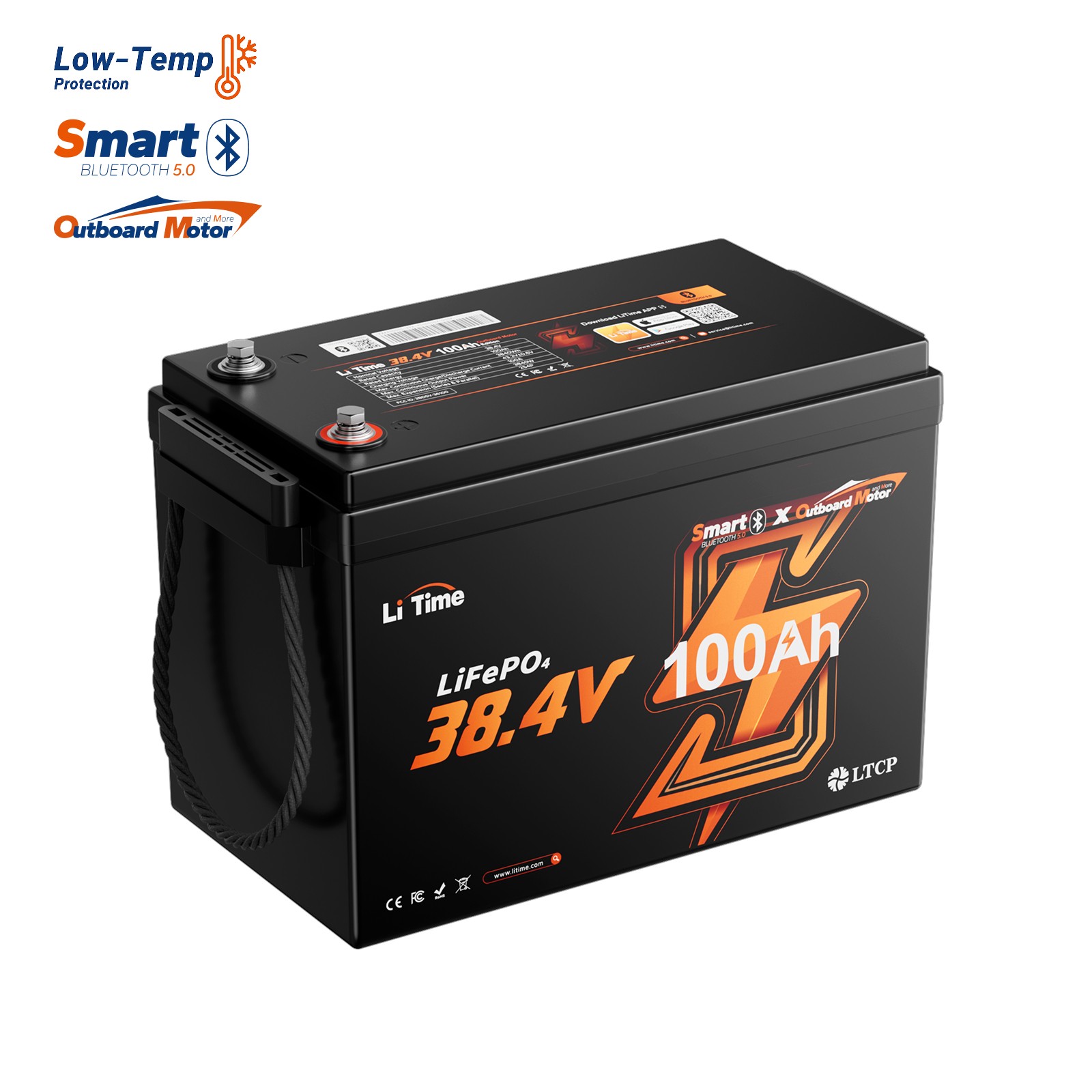

All-in-One 36V Marine Power
A single 36V 100Ah battery delivers 3840Wh of energy, combining high-capacity power, smart monitoring, marine protection and system expansion in one solution. Fewer batteries and connections mean a cleaner, simpler onboard power setup.
Built for Trolling Motors & Electric Outboards
Designed for 100–120 lb thrust trolling motors and compatible electric outboards, with support for popular brands such as Minn Kota, Garmin Force, Lowrance, Power-Pole and Newport. One battery platform gives you more flexibility across different marine motor setups.
Save Space, Reduce Stern Weight
34% smaller than typical 36V 100Ah lithium batteries and 65% lighter than a comparable 36V lead-acid system, leaving more room for gear while making installation easier.
High Surge Power for GPS Trolling Motors
GPS-controlled trolling motors can draw sudden current during Spot-Lock, route tracking, rapid steering and thrust changes. Surge capability of 120A for 60s, 300A for 15s and 500A for 1s helps handle these short high-demand moments without immediately triggering protection.
Expand Up to 2S4P for Bigger Systems
Flexible 2S4P expansion lets you increase both system voltage and capacity as your boating needs grow, supporting compatible 36V–72V systems and electric outboards up to 49HP. You can start with one battery and scale later instead of rebuilding the entire power system.
Monitor Your Power in Real Time
With Bluetooth 5.0, you can check SOC, voltage, current and battery status directly through the LiTime App. Real-time data makes it easier to track consumption, estimate remaining runtime and plan your return before power gets low.
Cold-Weather Protection Built In
Charging automatically stops below 32°F, resumes at 41°F, and discharging stops below -4°F. These temperature safeguards help protect LiFePO4 cells from cold-weather damage during winter fishing, early-season boating and storage.
20+ Protections for Changing Marine Loads
The built-in BMS provides 20+ protections while supporting 100A continuous discharge, helping manage overcurrent, overcharge, over-discharge and other abnormal conditions. It adds another layer of protection when motor loads change throughout the trip.
Three Ways to Recharge, More Freedom to Boat
Recharge through a compatible AC/DC LiFePO4 charger, solar system or generator. Whether you\'re at home, dockside or spending longer periods off-grid, multiple charging options make it easier to keep the battery ready for the next trip.
- 100–120 lb Trolling Motor Power:Runs about6.8h at 25%thrust or3.3h at 50%thrust. Compatible with Minn Kota, Garmin Force, Lowrance, Power-Pole and more.
- Peak Power for Electric Outboards:Delivers120A for 60s, 300A for 15s and 500A for 1sto handle sudden load demands in compatible 36V–72V systems.
- Smaller & Lighter:15.35 × 7.99 × 10 in,34%smaller than typical 36V 100Ah LFP batteries and65%lighter than a comparable lead-acid setup at just67.46 lb.
- Simplified 36V Setup:One3840Whbattery replaces a three-battery 12V setup, reducing series wiring, installation effort and onboard complexity.
- Bluetooth 5.0 Monitoring:Check SOC, voltage, current and battery status in real time through the LiTime App while on the water.
- Built for Marine Conditions:IP67water and dust protection, ABYC E-13 compliant, with FCC, CE, RoHS and UN38.3 certifications.
- EV-Grade Cells & BMS:4,000+ cycles at 100% DOD plus20+ BMSprotections, includinglow-temperature cut-off, for safer long-term use.
- Scalable Power:Supports electric outboard systems up to30.72kW, with4P2Sexpansion for higher voltage, capacity and longer runtime.
- Protection Upgrade: This LiTime product is covered by AIG Product Liability Insurance, effective from May 22, 2026.
BATTERY
Cell Type: LiFePO4
Warranty: 5 Years
Cycle Life: 4000 Cycles at 100% DOD, 6000 Cycles at 80% DOD, 15,000 Cycles at 60% DOD
Nominal Voltage: 38.4V
Rated Capacity: 100Ah
Energy: 3840Wh
Max. Expansion (Parallel & Series): 4P2S
Internal Resistance: ≤40mΩ
Bluetooth: Yes
BMS
BMS: 100A
Max. Continuous Output Power: 3840W
Max. Continuous Charge Current: 100A
Max. Continuous Discharge Current: 100A
Max. Discharge Current 1 Second: 500A
CHARGE
Charge Method: CC/CV
Charge Voltage: 43.2V±0.6V
Recommend Charge Current: 20A
TEMPERATURE
Charge Temperature: 0°C to 50°C / 32°F to 122°F
Discharge Temperature: -20°C to 60°C / -4°F to 140°F
Storage Temperature: -10°C to 50°C / 14°F to 122°F
Low-Temperature Protection: Yes
Automatic Discharge Off: <-4°F/-20°C
Automatic Charge Off: <32°F/0°C
Automatic Charging Recovery: />Terminals: M8*16mm
Weight Approx.: 67.46lbs
Size: 15.3*57.99*10inch
Housing Material: ABS
Protection Class: IP67
FAQ
How long will the battery run my trolling motor?
Runtime varies with thrust level, boat weight, wind, current and water conditions. As a reference, it runs about 1.7 hours at max thrust、3.3 hours at 50% thrust and 6.7 hours at 25% thrust .
Can I use it as an engine starting battery?
No. This battery is designed for trolling motors and compatible electric outboards, not for cranking or starting combustion engines.
What charger should I use?
Use a compatible LiFePO4 charger with the correct voltage and charging mode. If the battery becomes deeply discharged or stays unused for an extended period, the BMS may enter low-voltage protection and temporarily shut off the battery output. A LiFePO4 charger with an activation or 0V wake-up function can help reactivate the battery and restore normal charging. Properly configured solar and generator charging systems are also supported.
