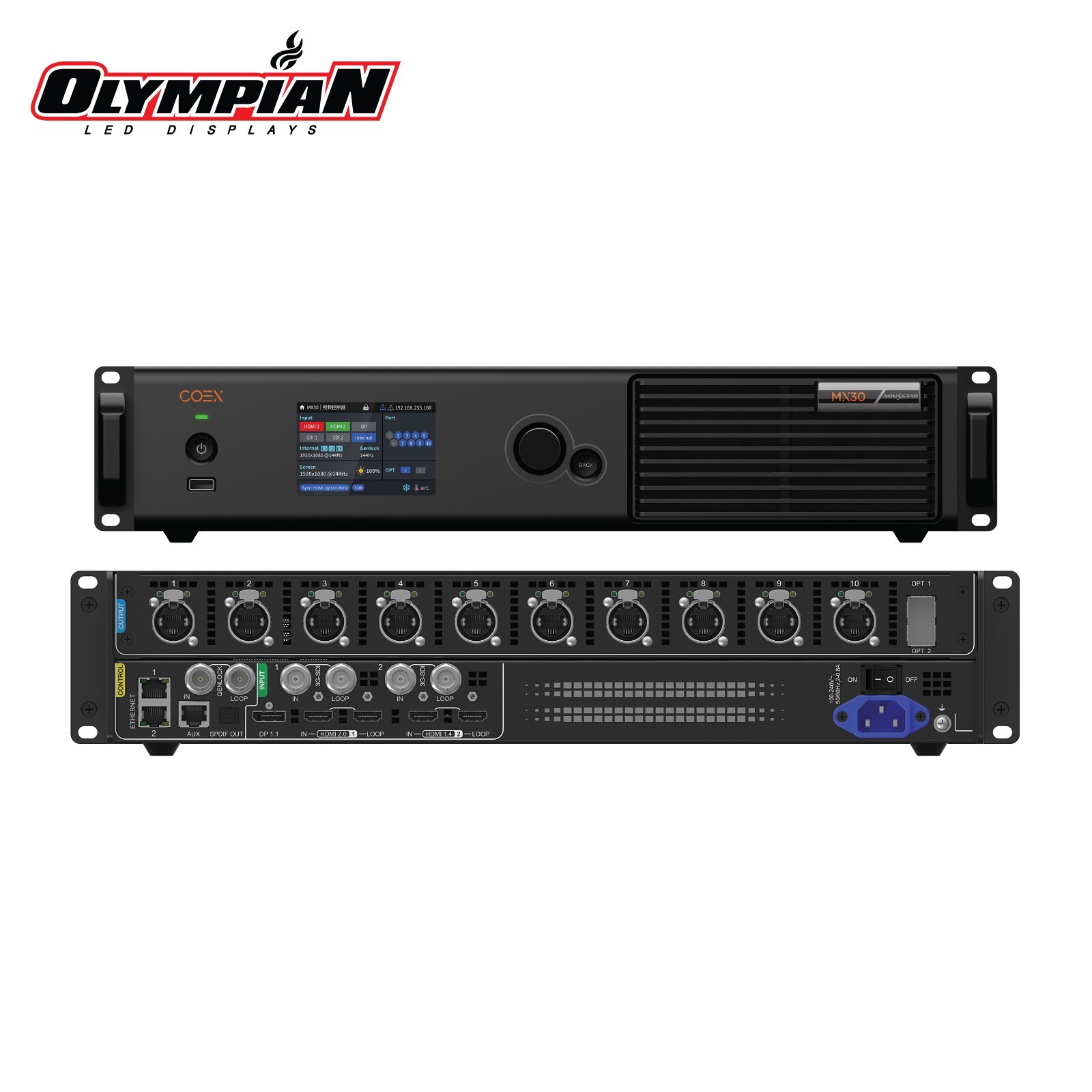

The MX30 is a brand new controller in development by NovaStar.
Inputs
− 1x HDMI 2.0 (with loop through)
– 1x HDMI 1.4 (with loop through)
− 1x DP 1.1
− 2x 3G SDI (with loop through)
10 bit /8 bit video inputs
Ethernet outputs
10x Ethernet outputs, up to 6.5 million pixels supported
Optical outputs
2x 10G SFP+ outputs
1x SPDIF digital audio port
The input frame frequency self-adaptation needs to be realized with the A10s Pro receiving card. The currently supported driver ICs are MBI5264, MBI5253B, ICND2055, ICND2065, ICND2059, ICND2069.
In addition, you need to use the (.ncp) file generated by the cabinet configuration debugging tool provided by Novastar. Full grayscale calibration needs to be realized with the A10s Pro receiving card.
When using the HDR function, the loading of the A10s Pro receiving card will not be halved. For details, please refer to the loading specifications of the network port
