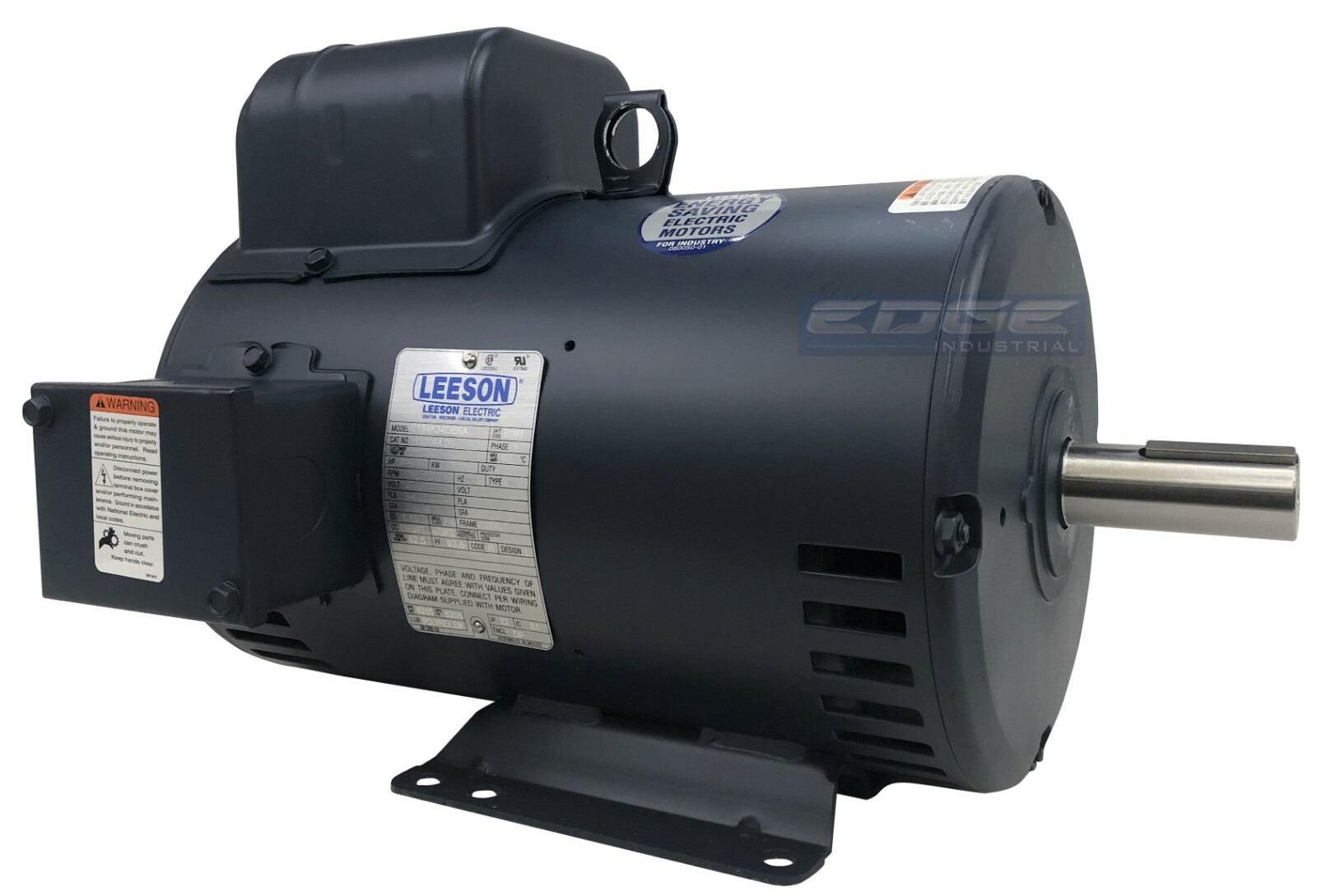

THIS LISTING IF FOR A BRAND NEW 7.5HP LEESON INDUSTRIAL GRADE SINGLE PHASE ELECTRIC MOTOR, MODEL NUMBER 132044.00. THIS MOTOR IS RATED AT 7.5HP, CAN BE CONNECTED TO230V INCOMING POWER SUPPLY. THIS MOTOR COMES ON A 184T FRAME AND ROTATES AT 3450 RPM. THIS MOTOR IS REVERSIBLE AND CAN BE WIRED TO ROTATE EITHER CW OR CCW.THIS IS AN OPEN DRIP PROOF MOTOR AND IS INTENDED TO BE USED IN DRY, NON-DUSTY INDOOR ENVIRONMENTS. THIS MOTOR IS BACKED BY A FULL 12 MONTH MANUFACTURERS WARRANTY FROM DATE OF SALE. THIS LEESON COMPRESSOR DUTY MOTOR IS PERFECTLY SUITED TO WITHSTAND THE STARTING TORQUE REQUIREMENTS OF INDUSTRIAL GRADE 5HP PUMPS. THIS LEESON MOTOR IS CAPACITOR START AND RUN. NOTMADE IN CHINA.
PLEASE MAKE SURE THE ELECTRIC MOTOR YOU ARE REPLACING MATCHES THE SPECS SHOWN BELOW BASED ON YOUR EXISTING MOTORS DATA PLATE.
7.5HP - 184T FRAME - 3450 RPM - SINGLE PHASE - 230VOLT - 1-1/8\" SHAFT DIAMETER - 2.75\" SHAFT LENGTH -MADE IN MEXICO
PLEASE SEE ATTACHED PICS FOR MOTOR DIMENSIONS AND FRAME DIMENSIONS.IF YOU NEED HELP CHOOSING THE RIGHT MOTOR TO REPLACE YOUR EXISTING MOTOR, WE\'RE HERE TO HELP. ATTACH A PIC OF YOUR EXISTING MOTORS DATA PLATE TO THE CONTACT SELLER LINK AT THE TOP OF THE PAGE.
TECHNICAL INFO:
HORSEPOWER: 7.5
AMPERAGE: 34 @ 208V / 31@ 230V
PHASE: SINGLE PHASE
VOLTAGE: 208-230
RPM: 3450
TORQUE: 11.7 FT LBS
BASE: REINFORCED FIXED BASE
FRAME: 184T
SHAFT DIAMETER: 1-1/8\" KEYED SHAFT
SHAFT LENGTH: 2.75\"
ROTATION: REVERSIBLE CW OR CCW ROTATION
FREQUENCY: 60HZ
SERVICE FACTOR: 1.15 @ 230V ( 1.0 SERVICE FACTOR AT 208V)
ENCLOSURE: ODP OPEN DRIP PROOF
CONSTRUCTION: STEEL FRAME
WEIGHT: 110 LBS
WARRANTY: 12 MONTH
