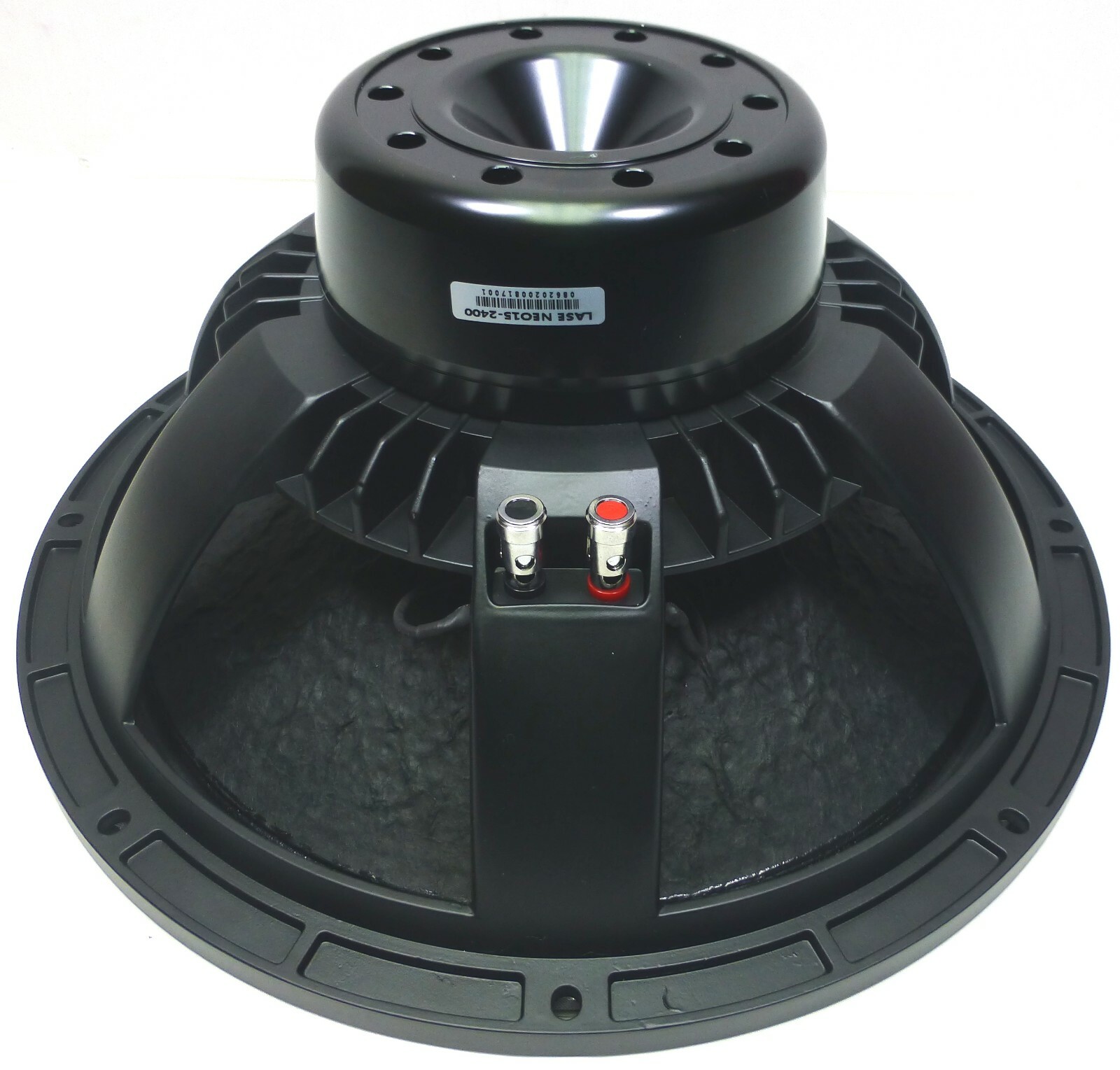

NEWLASE NEO 15-2400 - 15" Bass Speaker 4" Voice Coil.
Very high efficiency and extended linearity are special features ofLASE NEO 15-2400 bass transducer. Efficient heat dissipation is ensured by a radiator that is part of the basket design. The aluminum voice coil provides a properly aligned Q factor and high sensitivity. A specially designed shallow triple-roll surround guarantees low midrange distortion, and a fiberglass former voice coil, polycotton suspensions, and treated cone contribute to theLASE NEO 15-2400very high power handling. When mounted in compact size bass reflex enclosures, the good combination of short voice coil, very low mass, and suspension control makes theLASE NEO 15-2400an excellent choice for high power, 2-way satellite applications.TheLASE NEO 15-2400is a popular replacement speaker for EAW, Yorkville, Sonic, Martin Audio, and other subwoofer speaker systems.
Highlights :
- Professional/ Concert Touring Bass Driver.
- 4" Edgewound Aluminum voice coil on a fiber glass Former
- 1200 watt continuous program power handling
- Depth : Front to the Back 7.25"
- High Sensitivity and low distortion
- Shaped shallow triple-roll damped surround.
- Primarily designed to be horn loaded or and long throw system.
- Inverted dust cap minimizes cone distortion, improves coupling to a phase plug.
Specifications :
- Nominal Diameter : 15"(381mm)
- Power Handling : 1200 W (rms)
- Power Handling : 2400 W (max).
- Impedance : 8 ohm.
- Frequency Response : 48 hz - 2,000 hz .
- Sensitivity : 96 db 2.83/1m
- Voice Coil Diameter : 4"(100mm)
- Magnet weight :1.25T
- Weight : 18.51 lbs (8.4 kgm)
- Shipping Weight 20.28 lbs (9.2Kgm)
Thiele & Small Parameters :
- FS : 48 Hz.
- RE : 6.8 Ω
- Qms : 3.5
- Qes : 0.19
- Qts : 0.18
- Mms : 170.7G
- Cms : 0.78mm/N
- BL : 34.9 T-M
- Xmax : 9mm
- SD : 8665 cm
- Vas : 198 L
