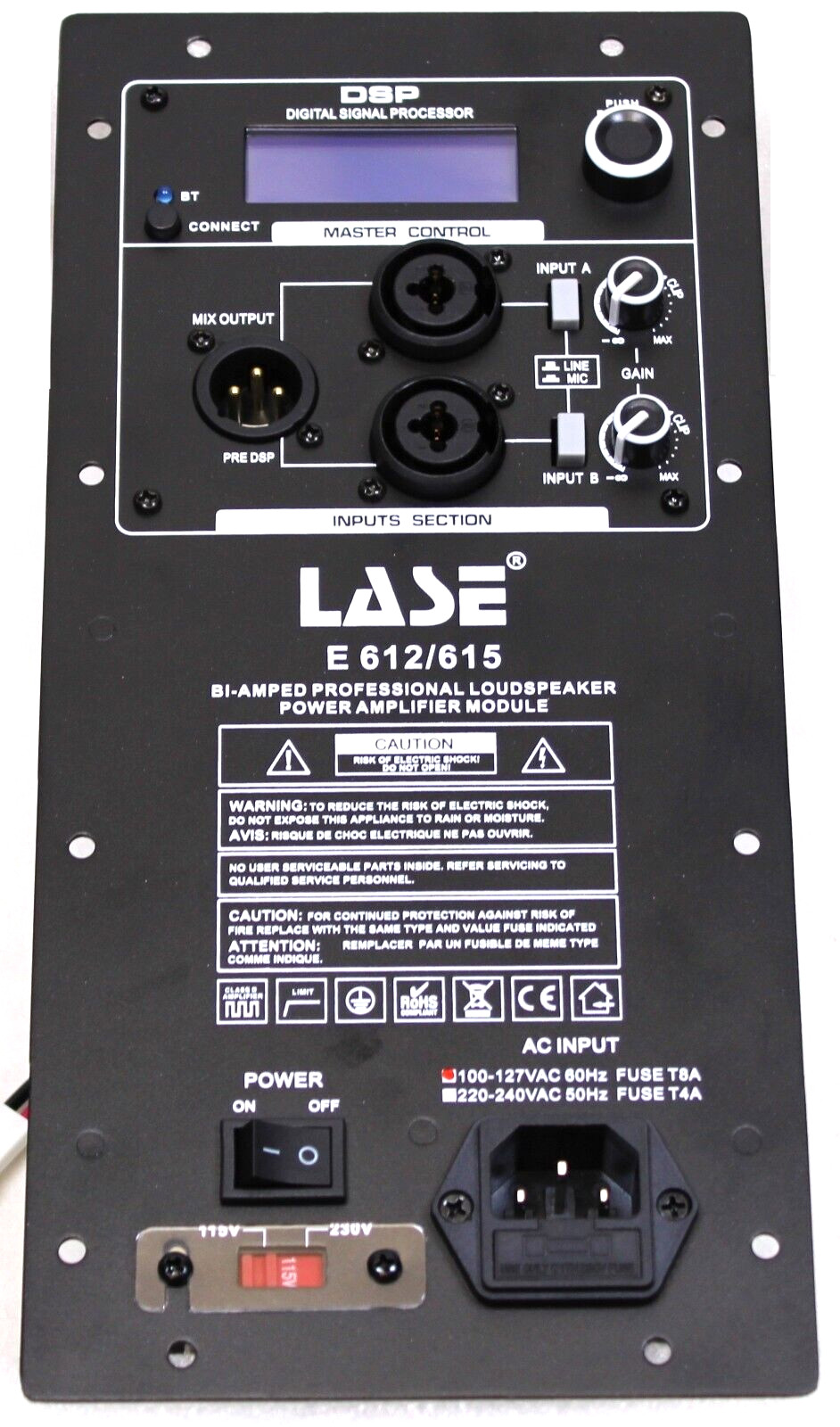

New !LASE E612/ E615 Replacement Amplifier Module for JBL EON 610 / 612 / 615 Powered Speaker Series.Very Easy To Install.TheLASE E610/612/E615control panel is simple and neatly laid out, with the user controls being restricted to power, arotary level control, and apair of push switches for selecting \'EQ\' Boost/Flatsettingsor Line/ Mic sensitivity. There are two XLR connectors, one for signal input and one for link out, so that additional speakers or systems can be daisy‑chained. The input socket is one of those handy \'combi\' types, and will accept either athree‑pin XLR or astandard jack plug (balanced or unbalanced).
Specifications :
- Power Output :
- 400W RMS (overall); 800W (Peak)
- LF: 350W RMS (700W Peak) @ 8 Ω
- HF: 50W RMS (100W Peak) @ 8Ω
- Frequency Response(± 0.3dB,1W/8Ω) : 20 Hz - 34 kHz
- Crossover Frequency : 1.8 Khz
- THD :20 Hz - 20 kHz for 1 W<0.1%
- Signal-to-Noise Ratio :>112 dBA
- Channel separation :(Crosstalk) at 1 kHz>70 dB
- Input Connector (per channel):3-pin XLR,1/4\" phono, electronically balanced.
- Output Connector:Balanced Male 3-pin XLR \" Mix Out\".
- Class :D
- Operating voltage : The voltage can be shifted by the panel power switch from 100-127V 60 Hz to 220-240V 50Hz
- Module Connect :SEE PICS.
- Dimensions :(L×W×D) : 11.02\" x 5.12\" x 2.94\" (280mm x 130mm x 100mm).
- Packing dimension : 12.6\" x 8.66\" x 2.71\"(320mm x 220mm x 145mm)
- Net weight :2.42lbs (1.1Kgm)
- Gross weight :3.31lbs(1.5Kgm)
