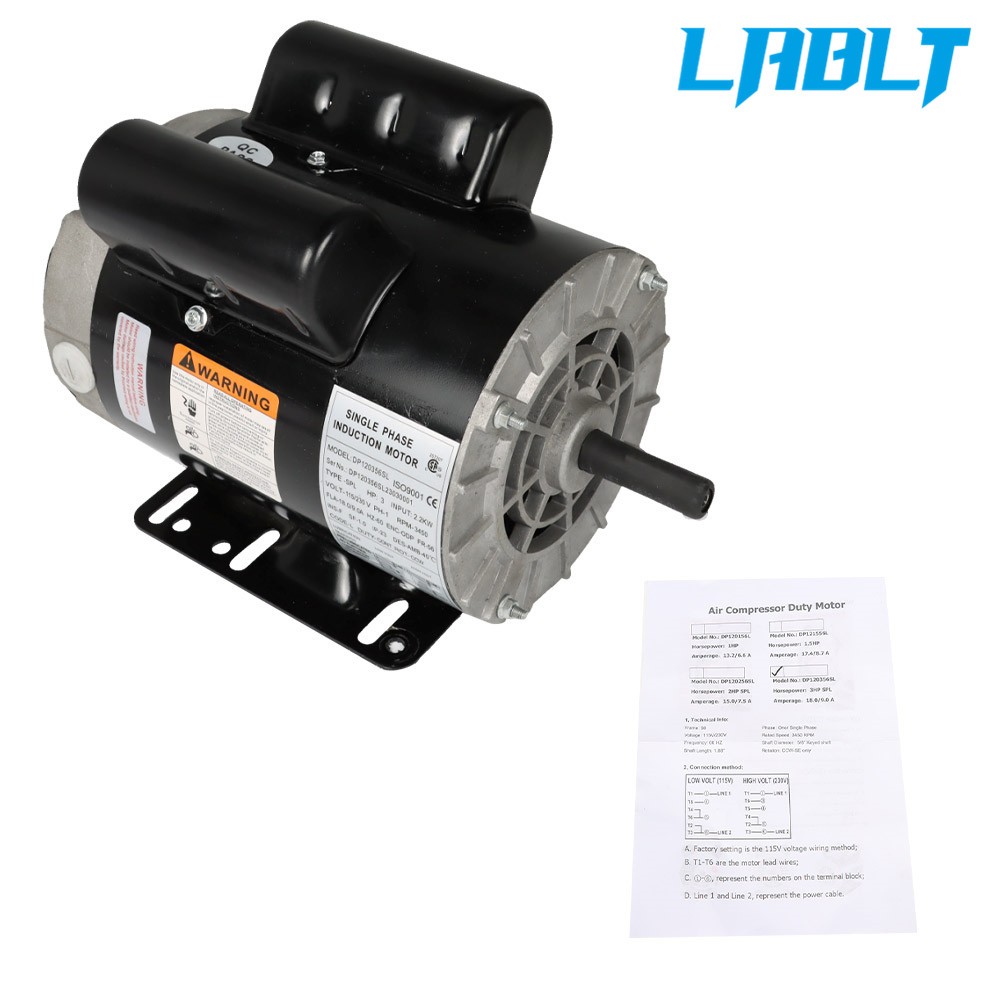

Description:Model: CM03256Type: SPLInput: 2.2 kWHorsepower: 3 HP SPLVoltage: 115/230VPhase: Single Phase, 2 PoleAmperage: 22.0/11.0Rated Speed: 3450 RPMFrequency: 60 HzSynchronous Speed: 3600 RPMFrame: 56 FrameShaft Diameter: 5/8 in / 1.6 cm Keyed ShaftShaft Length: 1.875 in / 4.8 cmRotation: CCWService Factor: 1Efficiency: 80%Insulation Class: FMounting Type: Base-MountedEnclosure Type: ODP (Open Drip-Proof)IP Rating: IP 23Current Type: ACMaterial: Steel shellFull Load Amps: 15AC Phase: Single PhaseMounting Type: RigidAC Motor Type: Non-Reversible LABLT 3HP SPL Air Compressor Electric Motor 3450RPM 56Frame 1Phase 115/230v 5/8"
Description:
Model: CM03256
Type: SPL
Input: 2.2 kW
Horsepower: 3 HP SPL
Voltage: 115/230V
Phase: Single Phase, 2 Pole
Amperage: 22.0/11.0
Rated Speed: 3450 RPM
Frequency: 60 Hz
Synchronous Speed: 3600 RPM
Frame: 56 Frame
Shaft Diameter: 5/8 in / 1.6 cm Keyed Shaft
Shaft Length: 1.875 in / 4.8 cm
Rotation: CCW
Service Factor: 1
Efficiency: 80%
Insulation Class: F
Mounting Type: Base-Mounted
Enclosure Type: ODP (Open Drip-Proof)
IP Rating: IP 23
Current Type: AC
Material: Steel shell
Full Load Amps: 15
AC Phase: Single Phase
Mounting Type: Rigid
AC Motor Type: Non-Reversible
Sturdy Steel Construction:
The 3 HP compressor motor shell is made of premium steel material. The robust and reliable body can guard the internal circuit well against overheating. The attached steel bracket also offers excellent stability. Two capacitors and high-quality ball bearings ensure long service life. Mounting Type: Base-Mounted.
Overload Thermal Protector:
The 3HP electric motor for air compressor adopts a manual reset knob allowing it to stand up against high-temperature overloads. A Reduced starting amperage design ensures the reduced voltage will start at a rated load.Insulation Class: F, Service Factor: 1.
Fast Heat Dissipation:
The 56 frame electric motor has multiple heat dissipation strips for heat dissipation. It can also guard chips and objects against dropping into the motor and causing accidents. Power and protection that you can trust. Works hard while maintaining high performance.
ODP for Dry Environments:
The open drip-proof motor demonstrates optimal performance when used in a relatively clean and dry environment. Specifically designed for air compressor duty uses. Ensure our motor matches the specific specifications listed on your compressor before purchase.
Package Includes:
1 × Air Compressor Electric Motor
About LABLT:
LABLT has rich experience in the production, sales and after-sales service of automobile and motorcycle parts. For many years, we have been committed to providing professional and personalized services to enhance the shopping experience of buyers. If you need any parts, please come to LABLT to buy them. We look forward to cooperating with you!
Item SpecificsCountry of Origin United StatesBrand LABLTMPN OM225936OCNEMA Frame Suffix 56 FrameType SPLSynchronous speed 3600 RPMRotation CCW (Counter clockwise rotation when viewed from the shaft end)Material Steel shellFull Load Amps 22.0/11.0IEC Frame Size 56Enclosure Type ODP (Open Drip-Proof)Shaft Type KeyedShaft Diameter 5/8 inCurrent Type ACNominal Rated Input Voltage 115 V, 208 V, 120 V, 240 V, 230 VAC Phase Single PhaseMounting Type RigidIP Rating IP23Input 2.2 KWShaft length 1.88 inchEfficiency 75 %Actual Rated Input Voltage 115/230Rated Load (HP) 3HP SPLAC Frequency Rating 60 HzBase RPM 3450AC Motor Type Non-ReversibleService Factor 1Model DP120356SL
