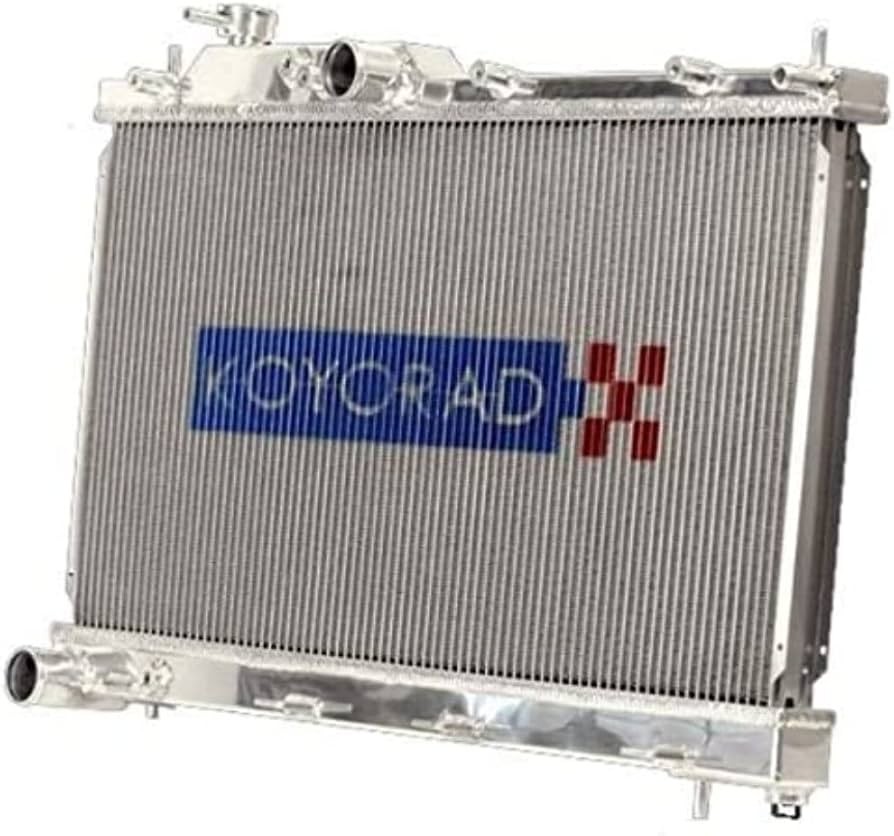

Koyo HH030939 48mm Radiator for 1996-2007 Mitsubishi Lancer Evolution 4G63T MT For Sale

- AUTHORIZED DEALER
- AUTHENTICPART

Part Brand: Koyo

Part Number: HH030939

• 1996-1998 Mitsubishi Lancer Evolution IV (CN9A, 4G63T 2.0L Turbo I4, AWD, MT) — Primary application
• 1998 Mitsubishi Lancer Evolution V (CP9A, 4G63T 2.0L Turbo I4, AWD, MT) — Primary application
• 1999-2001 Mitsubishi Lancer Evolution VI (CP9A, 4G63T 2.0L Turbo I4, AWD, MT) — Primary application
• 2001-2003 Mitsubishi Lancer Evolution VII (CT9A, 4G63T 2.0L Turbo I4, AWD, MT) — Cross-compatible with hose and airbox modifications
• 2003-2005 Mitsubishi Lancer Evolution VIII (CT9A, 4G63T 2.0L Turbo I4, AWD, MT) — Cross-compatible with hose and airbox modifications
• 2005-2007 Mitsubishi Lancer Evolution IX (CT9A, 4G63T 2.0L Turbo I4, AWD, MT) — Cross-compatible with hose and airbox modifications

• Manual Transmission (MT) only — Automatic transmission vehicles require a separate external transmission cooler.
• Evo IV / V / VI (Primary Fitment): This radiator is a direct-fit for the Evo 4/5/6 chassis. However, the Evo 7/8/9 fan and fan shroud must be used — the OEM Evo 4/5/6 fan and shroud are not compatible with this radiator.
• Evo VII / VIII / IX (Cross-Compatible Fitment): This radiator fits the Evo 7/8/9 chassis and physically mounts in the stock location. The upper radiator hose outlet is offset to the left of the engine bay, relocating the hose away from the exhaust manifold — which is an advantage for high-performance builds with larger manifolds. The Evo 5/6 upper radiator hose must be used (stock Evo 7/8/9 upper hose is not compatible). The lower hose remains vehicle-specific (use the correct lower hose for your specific Evo generation). The OEM Evo 7/8/9 airbox is NOT compatible with this radiator — aftermarket intake or modified routing is required.
• Radiator cap is sold separately — a Koyorad-compatible cap is recommended (e.g., Koyorad SK-C13).

• 48mm HH Series hyper core with ultra-high fin density engineered to deliver 20-35% greater cooling capacity over the OEM radiator.
• Offset upper hose outlet design positions the upper coolant hose to the left of the engine bay, creating critical clearance for larger turbo manifolds and exhaust systems — a major benefit for high-horsepower 4G63T builds.
• Direct bolt-in fit with OE-specific mounting locations for all fan shrouds, inlet/outlet hoses, and top/bottom mounting pins — no drilling, cutting, or modification to the chassis required.
• Nocolok-R furnace brazing bonds all tubes, fins, headers, and brackets for superior structural integrity and long-term resistance to vibration, thermal cycling, and road debris.
• Hand-crafted Heliarc (TIG) welds on every radiator produce the strongest possible aluminum-to-aluminum bond between tank and core components.
• Precision-machined billet aluminum filler neck provides a stronger seal and superior durability versus the OEM plastic filler neck.
• Integrated 1/8\" NPT female accessory fitting (supplied with threaded plug) accepts coolant temperature sensors from most Japanese aftermarket temperature gauge brands.
• Fully polished mirror finish — suitable for show-quality engine bays and purpose-built performance builds alike.
• Manufactured in Koyorad\'s privately owned, ISO 9001-certified Japanese facilities with full in-house quality oversight at every stage of production.

• Part Number: HH030939
• Core Thickness: 48mm (HH Series Hyper Core)
• Core Type: Single-pass, high fin density
• Core Height: 145.50\"
• Core Width: 27.00\"
• Core Depth: 1.889\"
• Material: Full aluminum construction — tanks, core, filler neck
• Filler Neck: Billet aluminum, precision-machined
• Accessory Port: 1/8\" NPT female fitting (threaded plug included)
• Finish: Mirror polished
• Brazing Method: Nocolok-R furnace brazed
• Welding Method: Hand TIG (Heliarc) welded
• Transmission Compatibility: Manual Transmission (MT) only
• Drivetrain: AWD
• Weight: Approximately 15 lbs
• Platform: CN9A (Evo IV), CP9A (Evo V/VI), CT9A (Evo VII/VIII/IX)
• Engine: 4G63T 2.0L Turbocharged Inline-4

• 1x Koyo HH030939 Full Aluminum HH Series Radiator
• 1x 1/8\" NPT Threaded Plug (for accessory port)

The Koyo HH030939 is a 48mm full-aluminum HH Series racing radiator engineered for the Mitsubishi Lancer Evolution IV through IX, covering the 1996-2007 4G63T-powered AWD platform across the CN9A and CP9A Evo 4/5/6 chassis and the CT9A Evo 7/8/9 chassis. This radiator was designed with the Evo 4/5/6 as its primary application and is a true direct-fit replacement for those generations — however, its offset upper hose outlet position makes it one of the most popular radiator choices for Evo 7/8/9 owners as well. By repositioning the upper coolant hose outlet to the left of the engine bay, the HH030939 routes the hose away from the exhaust manifold, creating valuable clearance for larger aftermarket manifolds, turbo piping, and high-horsepower builds where space in the engine bay is at a premium.

For Evo 4/5/6 owners, this radiator installs directly into the stock radiator location with no chassis modifications, but requires the Evo 7/8/9 fan and fan shroud — the OEM Evo 4/5/6 fan assembly is not dimensionally compatible with this unit. For Evo 7/8/9 owners, the radiator physically mounts in the stock location, but the Evo 5/6 upper radiator hose must be used in place of the OEM Evo 7/8/9 upper hose. The lower hose remains generation-specific — Evo 8 owners should retain their Evo 8 lower hose. Additionally, the OEM Evo 7/8/9 factory airbox is not compatible with the offset outlet position of this radiator, making it best suited for vehicles already running aftermarket intake systems. The radiator is rated for manual transmission use; automatic transmission vehicles require a separate external transmission cooler.

Built in Koyorad\'s ISO 9001-certified, privately owned Japanese facilities, every HH030939 is hand-assembled, Nocolok-R furnace brazed, and individually hand Heliarc (TIG) welded for maximum durability. The 48mm hyper core delivers 20-35% greater thermal performance over the stock OEM radiator, making it a well-proven choice for street-driven Evolutions, high-boost track builds, and everything in between. The integrated billet aluminum filler neck and 1/8\" NPT accessory port for coolant temperature sensors round out a feature set that covers both performance and practicality. The radiator cap is sold separately — a Koyorad SK-C13 or equivalent cap is recommended.

*Parts are for USA spec vehicles, please contact us to verify fitment on JDM & international models.
