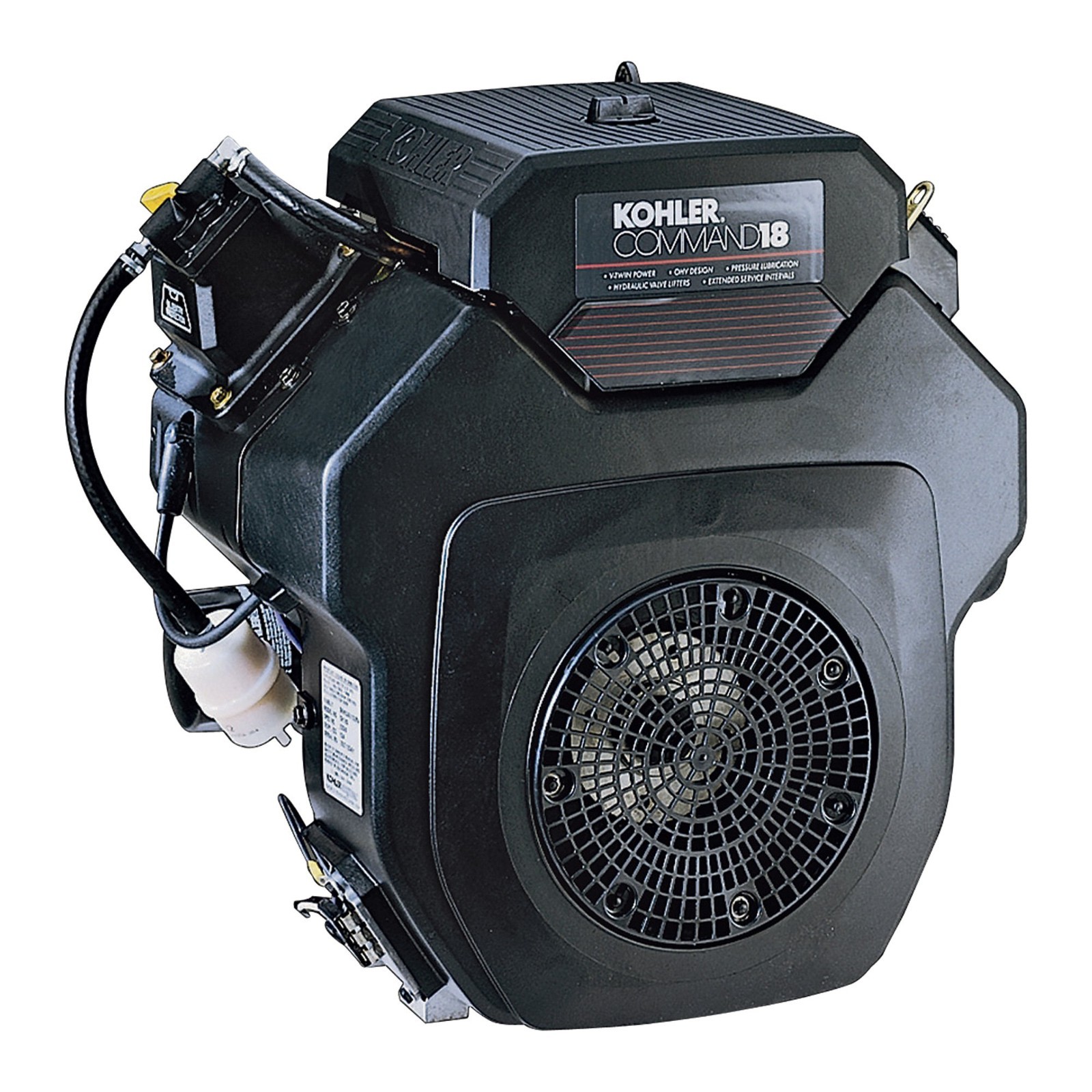

The Kohler 18 HP Command OHV Engine is a powerful 4-stroke engine designed for outdoor power equipment, specifically for use in generators. With a horsepower of 18 HP and a displacements of 624cc, this engine provides reliable performance. It features electric start for easy ignition and runs on gasoline as its fuel source. Made in the United States by Kohler, this engine is durable and built to last for various applications in yard, garden, and outdoor living.
These engines have been stored and forgotten in our warehouse. Purchased new from Kohler distributor. Attached is a photo of the box label with serial number. The Engine photo is a stock photo. I do not know how long these engines have been in our storage or the age of the engine.
Engines never used or the box opened.The shaft on these engines is a horizontal tapered shaft, not a straight shaft. Taper shafts are used to mount generators or direct mount compressors, or blowers, for precision alignment.
You may find a pulley that accommodates the taper shaft.
At this low $350 cost it may be practical / economical to replace the tapered shaft with a straight shaft?
The \"GS\" (Generator Shift) configuration of the Kohler Command PRO CH18 engine features a specific tapered PTO (Power Take-Off) crankshaft designed to directly couple with generator alternators, standard utility pumps, or welders.The standard factory specifications for the Kohler CH18 tapered crankshaft are:Crankshaft Dimensions
- Taper Ratio: 1:5 standard industrial taper (equivalent to 2.4 inches per foot).
- Shaft Length (Usable PTO): Approximately 2.93 inches to 3.0 inches from the engine mounting face.
- Big End Diameter (Base): Approximately 1.125 inches (1-1/8\").
- Small End Diameter (Tip): Tapers down to approximately 0.875 inches (7/8\").
Internal Threading & Keyway
- End Tapping: 7/16-20 UNF internal thread, typically drilled to a depth of 1.5 inches to securely bolt the generator rotor to the shaft.
- Keyway: Equipped with a standard 1/4-inch square woodruff or straight keyway along the tapered surface to prevent rotational slippage.
We have 15 of these engines.
Shipping from Gardena California.
The Kohler Command PRO CH18GS is an 18-horsepower, 4-cycle, V-twin air-cooled gasoline engine with a horizontal shaft, designed for heavy-duty commercial applications. The \"GS\" suffix typically denotes specific configuration options such as a generator shift or ground-drive setup with electric start.Key Engine SpecificationsFeatureSpecificationModel SeriesCommand PRO CH18 (Horizontal Shaft)Horsepower18.0 HP (13.4 kW) @ 3,600 RPMDisplacement624 cc (38.0 cu·in)Cylinder ConfigurationV-Twin (2 cylinders) with Cast Iron LinersValve DesignOHV (Overhead Valve)Bore x Stroke77.0 mm x 67.0 mm (3.03\" x 2.64\")Compression Ratio8.5:1Starter Type12-Volt ElectricLubrication SystemFull pressure lubrication with spin-on oil filterOil Capacity2.0 U.S. quarts (1.9 Liters)Dry WeightApprox. 92 lbs (41-43 kg)The Kohler Command PRO CH18 engine features a standard Counterclockwise (CCW) rotation when viewed directly facing the PTO (Power Take-Off) shaft side of the engineFuel & Maintenance Requirements
- Fuel Type: Clean, fresh unleaded gasoline with a pump octane rating of 87 or higher. Up to 10% ethyl alcohol (E10) is acceptable, but E15, E20, and E85 are strictly prohibited.
- Oil Change Schedule: Regular oil changes should occur every 100 hours (or annually), and the oil filter should be replaced every 200 hours under standard operating guidelines.
