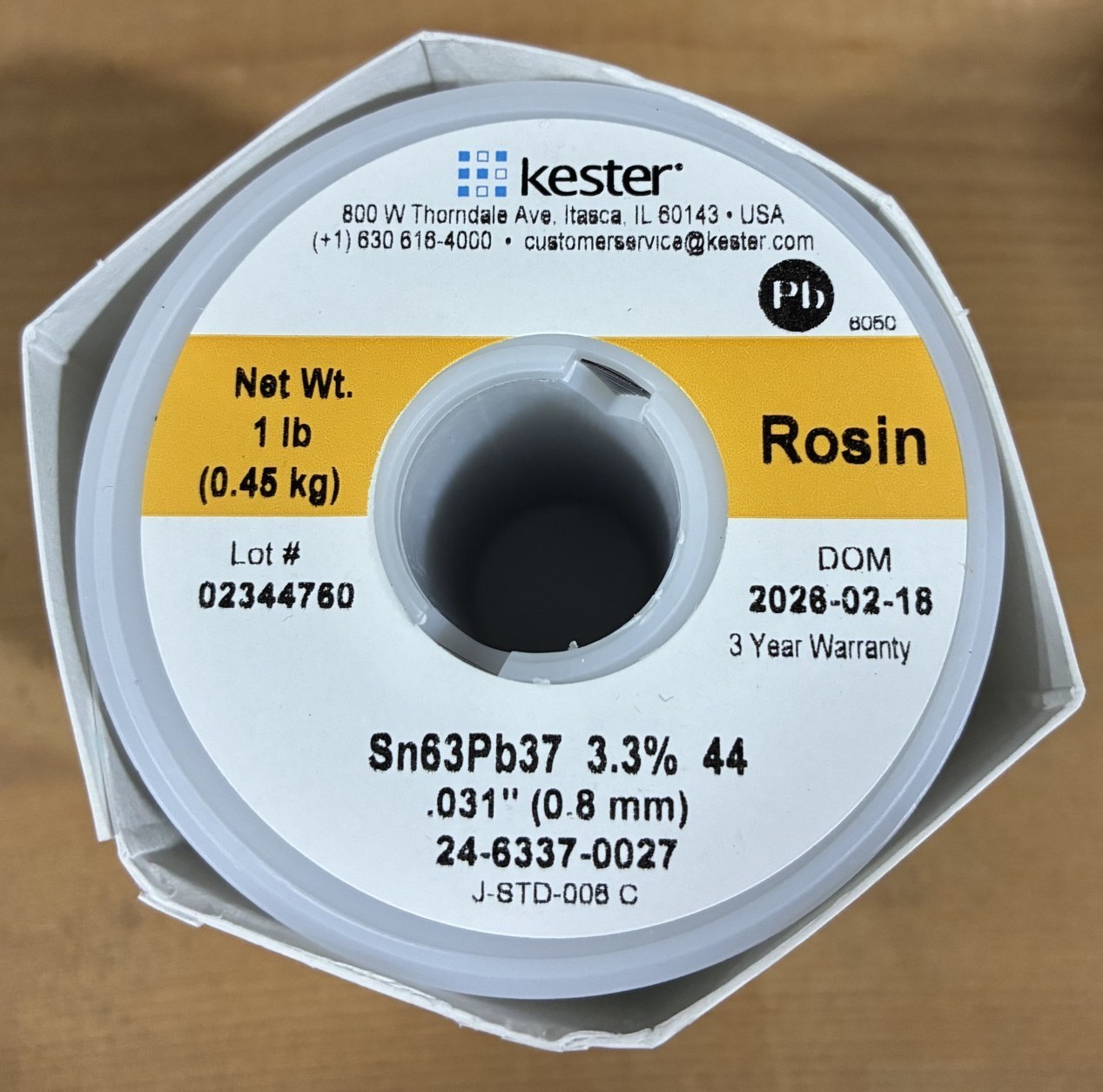

Kester 24-6337-0027 Solder Wire, Rosin Core, Leaded, Sn63Pb37, 3.3%, 0.031" Dia. For Sale

Alloy: Sn63Pb37

Core Size: 66

Flux: 3.3%

Kester 44 Rosin Flux is an activated rosin formula for use in flux-cored solder wire. 44 has virtually dominated the field of activated rosin core solders for well over four decades. An outstanding performance feature of this flux is the “instant-action” wetting behavior. The high mobility and fast-spreading action of this flux results in more reliable production line soldering. 44 is classified as ROM1 per J-STD-004.

Performance Characteristics:

• High activity RA formulation
• Excellent solderability to a wide range of metalizations
• Industry standard RA cored wire for decades
• Classified as ROM1 per J-STD-004

Cleaning

The 44 series possesses excellent fluxing ability. The flux residues are non-corrosive, non-conductive and do not require removal in most applications under normal conditions of use. IPA will not clean the residues off the surface of the circuit board after the soldering process. If removal is required, a saponifier or cleaning agent specifically designed to clean a no-clean flux is required to clean the residues.

Brand:KesterWire Diameter:0.031 in (0.80 mm)Alloy Name:Sn63/Pb37Flux %:3.3 %Flux Type:Rosin CoreLead Free:NoHalogen Content:HalogenSeries:44 SeriesAlternate Product Number:2463370018Alloy Type:Eutectic AlloysComposition:63/37 (63% Tin, 37% Lead)Core Size:66Melting Point:183 C (361 F)Package Type:SpoolShelf Life:1095 daysTin or Lead Alloy:63/37Weight:1 lb (0.45 kg)
