Item Description

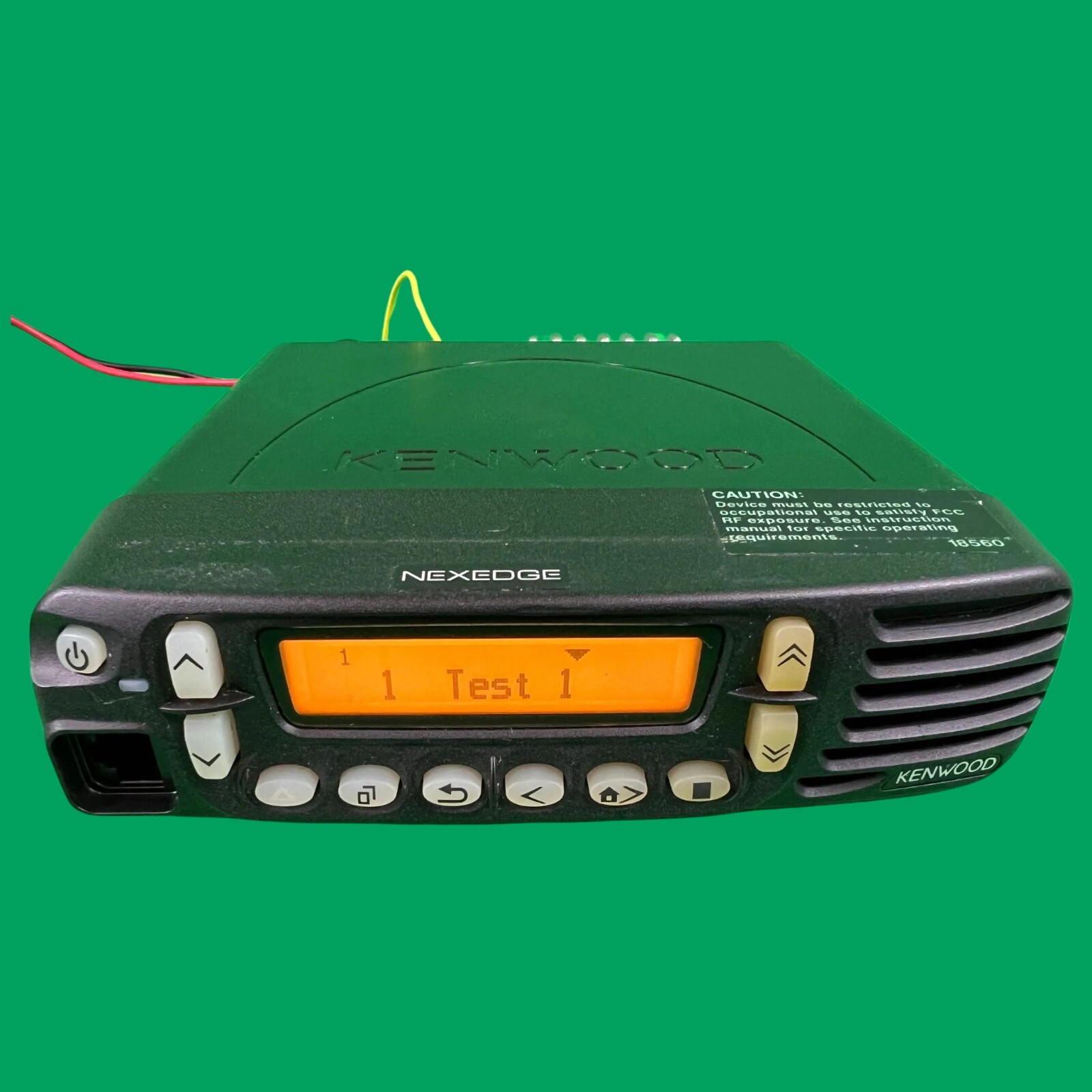

(1) Kenwood - NX-800H-K UHF FM Transceiver
450 MHz - 520 MHzFrequency Range
Digital / Analog Operating Modes
Wide/Narrow Band Capable
Narrow BandCompliant
RF Output Power 10 Watts - 45 Watts
High-Resolution Dot Matrix Alphanumeric Display
10-Key Keypad
Corded Handheld Mic is not Included
Mounting Bracket and Screws are not Included
Model: NX-800H-K
FCC ID: K44378702
This listing is for multiple items of the same model and specifications. Thedevice you receive will be the same model and will be in comparable condition to the listing photos/description. The bracket mounding screws and switching power supply shown in the photos are not included.
The buyer/user is responsible for re-programming the radios to frequenciesthat they are licensed/authorizedto use.
Information & Features From Kenwood.All models have optional features noted below that may or may not be present in these radios.GENERAL FEATURES• 1W / 45W• 512 CH-GID / 128 Zones• Dash & Remote Mount• Dual Control Head Remote Mount• 14 Character Alphanumeric Aliases• Backlit Dot Matrix LCD• Function/Status LCD Icons• Multi-Language Display• Date & 12/24 Hour Time Clock• Transmit/Busy/Call Alert/Warn LED• On/Off Power Control• 4 Up/Down Selectors• 6 Front PF Keys• Emergency/AUX Key• 4W Speaker Audio• DB-25 Accessory Connector• 9 Programmable AUX I/Os• 2 Programmable AUX Outputs• KPG-111D Windows® FPU• Flash Firmware Upgrading• MIL-STD-810 C/D/E/F/G• IP-54/55 Water & Dust Intrusion• PC Serial Interface• SDM Manual Input• Transparent Data Mode• GPS Receiver Option• VGS-1 Voice Guide / Voice & GPS Data Storage Option
DIGITAL – COMMON• NXDN® Digital Air Interface• AMBE+2™ VOCODER• 6.25 & 12.5 kHz Channels• Over-the-Air Alias• Over-the-Air Programming• Paging Call• Emergency Call• All Group Call• Status Messaging• Remote Stun/Kill• Remote Check• Short & Long Data Messages• GPS Location with Voice• NXDN® Scrambler Included• DES Encryption Module Option• AES & DES Encryption Module Option• AES/DES Software Key Loader Option
DIGITAL CONVENTIONAL MODE• 64 Radio Access Numbers (RAN)• Individual & Group Selective Call• Mixed FM/Digital Operation• Conventional IP Networks• Site Roaming
DIGITAL TRUNKING MODE• Individual Private Call• Group Call & Broadcast Call• Transmission Trunked Mode• Message Trunked Mode• Call Queuing with Priority• Late Entry (UID & GID)• 4 Priority Monitor ID’s• Remote Group Add• Failsoft Mode
MULTI-SITE IP NETWORKS COMPATIBLE• Individual Private Call• Group Call & Broadcast Call• Transmission Trunked Mode
MULTI-SYSTEM COMPATIBLE• 8 Trunked Networks• UID Lists for each network
SCAN• Single Zone / Multi-Zone / List Scan• Dual Priority Scan (Conventional)
ANALOG MODE - GENERAL• 25 & 12.5 kHz Channels• Conventional & LTR® or MPT Zones• FleetSync®/II, MDC-1200, DTMF• QT / DQT & Two-Tone (Conventional Zones Only)• Voice Inversion Scrambler (16 Codes)
MPT ZONES*• Single-Site Trunking• Multi-Site Network Trunking• 8 Network Capacity• Network Roaming / Registration
FleetSync®II (FM)• PTT ID ANI / Caller ID• Selective / Group Call• Emergency, Status & Text Messages
MDC-1200• PTT ID ANI / Caller ID• Emergency, Radio Check & Inhibit
Payment
We only accept PayPal/ Payments. As soon as the payment clears in PayPal/, we will pack and ship your order.
Warranty/Return
We offer a 30-day warranty/return window on our items (unless otherwise stated in the listing). If an item is defective, we will refund or ship another item (at our discretion) as soon as wereceivethe defective unit.
Due to recent part harvesting scams, anti-tamper measures have been taken to secure our products against part harvesting. If your radio or accessory has a blue seal over a screw or a hologram sticker over a seam or joint, do not remove it until after your 30-daywarranty/return period has expired. Removing the blue screw seal or hologram sticker before yourwarranty/return period will void your ability to make a warranty claim or return your purchase for any reason. Thispolicywill bestrictlyenforced.
Shipping
We ship to all 48 states via FedEx, USPS or UPS ground, international shipping is notavailable, and we do not ship to P.O Boxes. Most of our orders are shipped within 24 hours of the cleared PayPal payment and we only ship during business days (Monday-Friday). If you place and order on a weekend day, your item will be shipped the following business day.
Contact
You can contact us via messages Monday - Friday 9am-5pm EST
