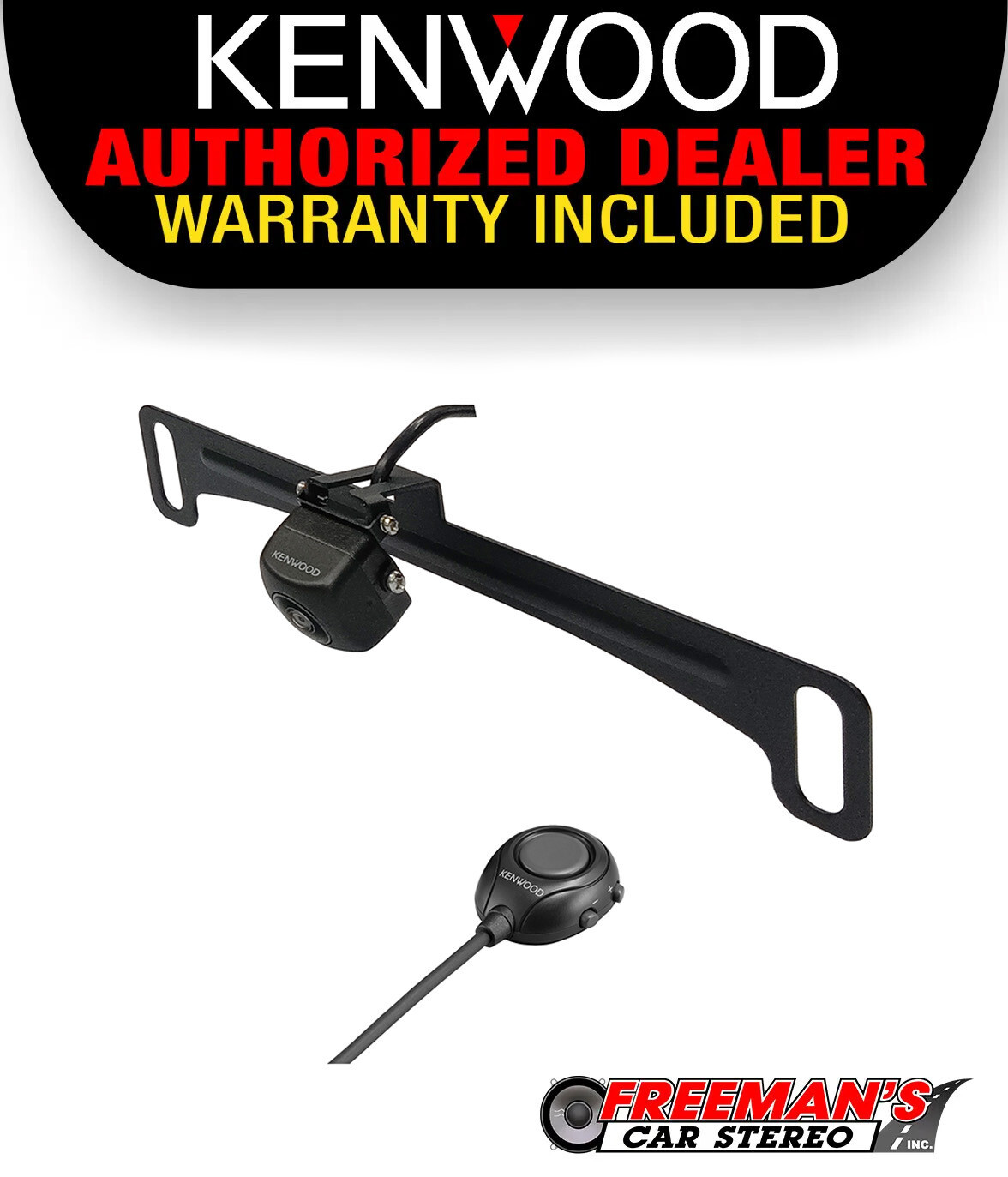

Kenwood CMOS-320LP Universal 4-Mode Rear Back-Up Camera, License Plate Mount For Sale

Highlights

Universal Multi View Camera with CA-LPM10 Mounting Bracket

The CMOS-320LP multi-view camera is equipped with an advanced image processor that is capable of altering viewing angles and increasing the number of viewing options including corner views and adding graphic guidelines to the camera image. Easily switch between the many viewing options using the touch screen from a compatible DNN, DNX or DDX receiver.

Features

• Universal Multi View Camera
• Night, Normal, Wide, Corner & Overhead View
• Switch Unit Included
• 1/3.6\" Colour CMOS sensor
• Waterproof unit with flexible mount base
• NTSC Video Signal Out (RCA)
• Can be installed on the front or rear side of the car
• License plate mounting kit included.

SpecificationCamera Type1/3.6\" colour CMOS sensorColour typeYesEffective number of pixels roughly330000High sensitivity PixelsYesOutput videoWide-angle Mirror Image (for rearview)/Wide-Angle normal Image (for Front ViewWaterproof chassisYesMounting systemFexible mount baseInstallation positionsRearCamera ID settingYesRear view switchingReverse lineFront view switchingby remote or Kenwood unitGuideline viewYesGuideline AdjustmentsSize, Horizontal Direction, Red Line PositionImage AdjustmentsCentering, Right-and-Left, Up-And-Down AngleHigh voltage protectionYesWide angle lensYesFocal lengthf: 1.05mm, F value 2Horizontal Angle view+/- 195°Vertical Angle View+/- 145°Illumination rangeapprox. 0.9 to 100000 luxIris SystemElectronicWhite balanceAutomaticallyScanning SystemInterlaceSynchronizing SystemInternalVideo output level1Vpp, 75ΩVideo signal formatNTSC (Mirror view)Connection cable (DC+video)5 mGeneral SpecificationsOperating voltage14.5V (9 ~ 16V Allowable)Maximum Current Consumption0.1ADimensions (WxHxD)23.4 x 23.4 x 26.1mmWeight23 gr.Dimensions Switch Unit (WxHxD)27.5 x 32.8 x 12 mmWeight Switch Unit10 gr.Operation Temperature Range-30°C ~ 70°CStorage Temperature Range-40°C ~ 80°CMeasurementsWeight0.49 (lbs)Width9.3 (in.)Length5.2 (in.)Height2.5 (in.)
