Jabsco Par-Max Hd3 Heavy Duty Water Pressure Pump - 12V 3 Gpm 40 Psi Q301J-115S- For Sale

Serving the marine community since 2011 User name: WakezonemarineProduct Photo Item Description

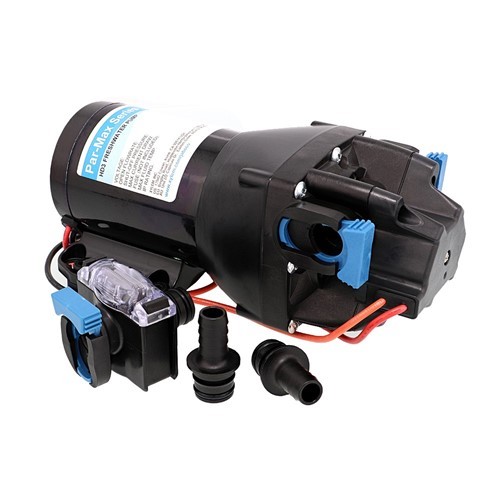

Par-Max HD3 Heavy Duty Water Pressure Pump - 12V - 3 GPM - 40 PSI

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.

Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from diaphragm technology for long life and durability

HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures

Efficient and quiet operation

Integrated, sealed pressure switch for on-demand operation

Self-priming allows for installation versatility

Can run dry without damage

Quick connect ports for ease of installation, servicing, and maintenance

Vibration dampening mounting feet

Equipped with integrated bypass module to reduce cycling and provide smoother design: Brushed, permanent magnet TENV

Pumphead upper housing material: Glass fiber reinforced polypropylene

Diaphragm: Co-molded TPV

Check valves: EPDM

Max inlet pressure: 30 PSI (2.1 Bar)

Fluid temperature range: 32°F – 140°F (0°C – 60°C)

Dry self-priming capability: 7ft min (2.13m/min)

Certifications: CE, ISO8846, RCM

Ingress Protection: IPX6

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Volts = 12v
Max PSI = 40
Gallons Per Minute = 3 GPM
