PRODUCT OVERVIEW

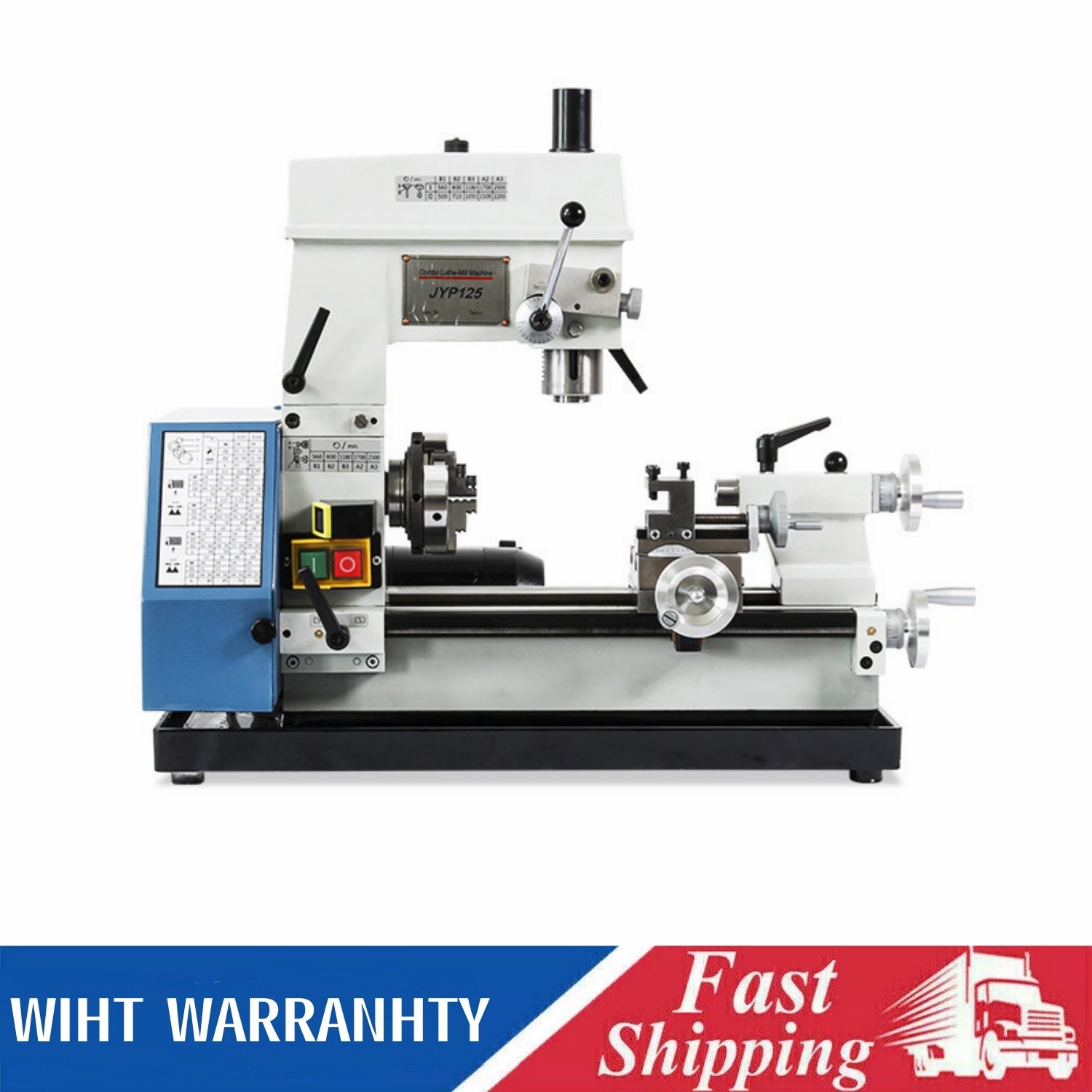

• A compact, multi-functionalmini lathe and drilling/milling machine.

• Designed for precise small-scale machining, turning, drilling, and threading work.

• Features a5-speed spindlefor turning and a10-speed spindlefor DIMENSIONS & WEIGHT

  • Machine Size:520 x 300 x 410 MM

  • Packing Size:570 x 350 x 480 MM

  • Net/Gross Weight:22 KG / 25 KG


  TURNING PARAMETERS

  • Maximum Workpiece Rotation Diameter:125 MM

  • Maximum Workpiece Length:180 MM

  • Max Diameter on Tool Holder:60 MM

  • Spindle Through Hole:9 MM

  • Spindle Taper:MT1

  • Metric Thread Types:8

  • Metric Thread Pitch Range:0.4 - 1.5 MM

  • Imperial Thread Types:8

  • Imperial Thread Pitch Range:0.0028 - 0.0055 1/n"

  • Longitudinal Feeds:2

  • Feed per Spindle Revolution:0.07 - 0.14 MM

  • Tailstock Sleeve Stroke:18 MM

  • Tailstock Taper:MT1

  • Spindle Speed Range (Turning):560 - 2500 RPM (5 Levels)

  • Motor & MILLING PARAMETERS

    • Maximum Drilling Diameter:6 MM

    • Spindle End to Table Distance:180 MM

    • Spindle Center to Column:125 MM

    • Head Rotation:360° around column

    • Spindle Speed Range (Drilling/Milling):500 - 2500 RPM (10 Levels)

    • Vertical Head Lift:60 MM

    • Worktable Surface:85 x 60 MM

    • T-Slot Width:8 MM

    • Spindle Sleeve Movement:40 MM


    CHUCK SPECIFICATIONS

    • Model:80 Chuck

    • Diameter:77 MM

    • Clamping Range:

      • Positive Jaw:2 - 35 MM

      • Reverse Jaw:35 - 70 INCLUDES

        • 1 x JYP125 Mini Lathe & Drilling/Milling Machine
          (Please confirm accessory list with seller. Standard equipment typically includes chuck, wrenches, and basic tooling.)
