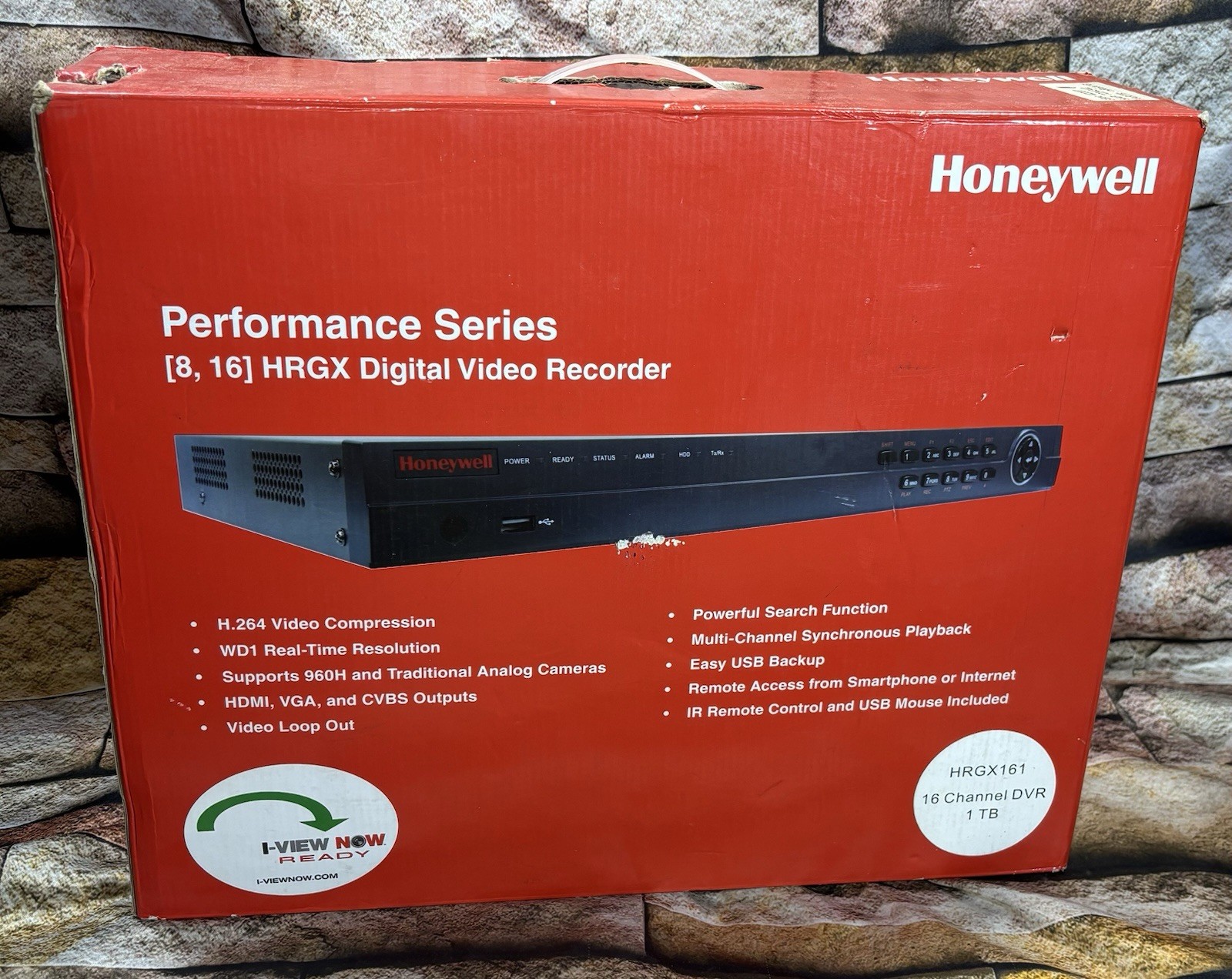

The Honeywell Video HRGX161 is a 16 channel H.264 embedded DVR with a 1 TB storage capacity. The new HRGX embedded digital video recorder is the latest in Honeywells Performance Series lineup of feature-rich cameras and DVRs providing affordable video surveillance solutions for a wide range of everyday security applications. Offering an advanced feature set at a low price, the HRGX is ideal for a wide range of surveillance applications, including small to mid-size retail outlets, apartment buildings, warehouses, and educational facilities.
16 channels
Dual stream support
Free DDNS service
USB mouse and remote control included
Self-diagnostics, including S.M.A.R.T. disk health check
2 USB ports for backup to flash drive or other storage device
Channels independently configurable
NAS (Network Attached Storage) options available
Alarm and device exception notifications
PTZ dome control for a wide variety of protocols
Privacy masking (4 configurable zones)
Optional video loop out
Multi-channel synchronous playback
HDMI/VGA output up to 1080p, CVBS output up to 4CIF
Simultaneous HDMI, VGA, and CVBS outputs
Watermark verification
Continuous and event recording
Unlimited free licenses to remote client software (PC and Mac)
Remote access through web browser – no software needed
Free apps for Apple iOS and Android mobile devices
Main stream encoding at up to WD1 (960H) resolution in real time
H.264 compression
1TB hard drive
Technical Specifications:
Relative Humidity: 10% to 90%, non-condensing
Operating Temperature: 14°F to 131°F (-10°C to 55°C)
Construction: Steel chassis, 1U, rack mount
Weight: ≤ 8.8 lb (4 kg)
Dimensions: 17.3 × 11.1 × 1.75 in. (440 × 281.8 × 44.5 mm)
Power Consumption: ≤ 20 W
Input Voltage: 12 V DC
USB: 2 USB 2.0 ports
Serial: 1 RS-485 half-duplex interface
Network: 1 RJ45, 10/100M Base-T Ethernet
Alarm Outputs: 4 relay outputs, NO/NC
Alarm Inputs: 16 inputs, NO/NC
Audio Output: 1 output, RCA
Audio Inputs: 4 inputs, RCA, 2.0 Vp-p, 1 kilohm
Video Output: 1 HDMI output, 1 VGA output, 1 CVBS (Main BNC) output
Video Inputs: 16 inputs, BNC, 1.0 Vp-p, 75 ohms
Supported Protocols: TCP/IP, DHCP, PPPoE, SMTP, DDNS, NTP, SNMP, UPnP, RTSP, NFS, iSCSI
Security: 3 access levels (admin, operator, guest), Password protection, Lockable files, Watermarked video
External Storage: USB flash drive, USB HDD, USB DVD
Internal Storage: SATA HDD, up to 2 TB capacity
Mobile Viewing: App for Apple iOS and Android
Motion Detection: Configurable detection area and sensitivity
PTZ Control: Configurable presets, patrols, and patterns; 60 PTZ protocols supported
Event Reporting: Event recording, email and remote host notification
Privacy Mask: 4 configurable zones
Search Mode: Instant Playback, Date & Time, Event, Tag, System Logs
Pre/Post-Alarm Recording: Pre-alarm: Up to 30 sec; Post-alarm: Up to 10 min
Recording Mode: Manual, Schedule (Continuous/Event), Holiday
Bit Rate: 32 Kbps to 2048 Kbps (max. 3072 Kbps)
Frame Rate: 30 fps (NTSC)/25 fps (PAL)
Encoding Resolution: Main Stream: WD1/4CIF/2CIF/ CIF/QCIF, Sub Stream: CIF/QCIF
Stream Type: Video, Video & Audio
Compression: H.264
Main BNC Output Resolution: 4CIF (704×480)
HDMI/VGA Output Resolution: 1920×1080 (1080p) 1280×1024, 1280×720 (720p) 1024×768
Video Standard: NTSC/PAL
