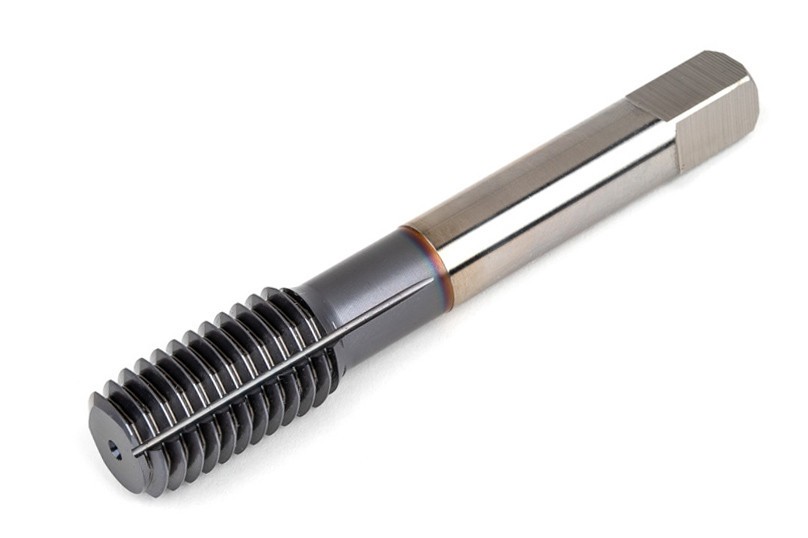

Haas 5/8\"-11 UNC HSS-PM Roll Tap, 0.48\" Shank x 1\" Thread Length, 3XD For Sale
![Haas 5/8\](img-large/g/WwsAAeSwUUZpgJ65/s-l1600/Haas-5-8-11-UNC-HSS-PM-Roll-Tap-0-48-Shank-x-1-Thr.jpg "Haas 5/8\")
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Haas 5/8\"-11 UNC HSS-PM Roll Tap, 0.48\" Shank x 1\" Thread Length, 3XD:
$235.15
System of Measurement Inch - ANSI Thread Series UNC - Unified Natl. Coarse Thread Size 5/8\"-11 Tap Type Roll Tap Chamfer Type Modified Bottoming Shank Type Square Material HSS-PM Coating TiCN [TPI] Threads per Inch 11 tpi Tap Drill Diameter 0.579 in [ØDC] Cutting Diameter 0.625 in [ØDMM] Shank Diameter 0.48 in [L2] Chamfer Length 2P - 3P [L1] Thread Length 1.0 in [LU] Usable Length 1.811 in [OAL] Overall Length 3.811 in [SS] Square Size 0.36 in [FHA°] Helix Angle 0 Length / Diameter 3 X D Thread Class H10 Through Spindle Coolant No
|
|
